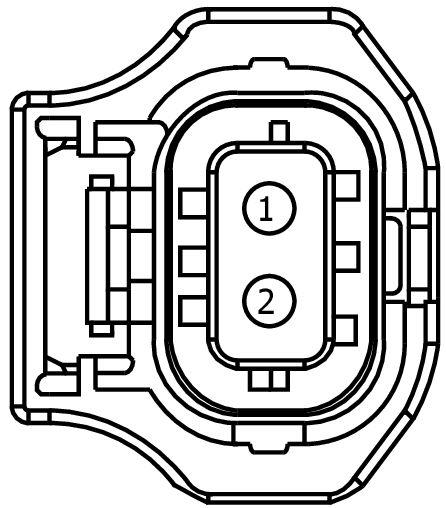

Connector End View C442 - VAPOR PRESSURE VALVE (VPV)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C442	VAPOR PRESSURE VALVE (VPV)	BK	14407	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-KB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE274 (BU-OG)	18	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE CONTROL VALVE (TPCV)	EU5T-14474-KB
2	CBK02 (GN)	18	FUSE - 7 OR CIRCUIT BREAKER (VPWR 2)	EU5T-14474-KB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1506

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-DB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock
• Fuel Injector
• Injector - UREA
• Sensor - Fuel Rail Pressure
• Solenoid - Engine Variable Timing
• Solenoid - Fuel Volume Regulator Control
• Valve - Fuel Metering
• Valve - Heated PCV
• Valve - Vapor Management
