Connector End View C424 - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C424 | INLINE | GY | 14B562PIA | See Below | ||||
MALE
Harness
14B562
FEMALE
Harness
PIA
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14421-CB | EU2Z-14421-AA | 0.64 |
| DU5T-14421-DB | EU2Z-14421-AA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (BU-GY) | 22 | DU5T-14421-CB | |||
| 2 | CLS10 (GN-BN) | 18 | DU5T-14421-DB | |||
| 3 | VLS70 (BN-GN) | 22 | DU5T-14421-CB | |||
| 4 | CPL45 (BN) | 22 | DU5T-14421-CB | |||
| 5 | GD352 (BK-BU) | 18 | DU5T-14421-DB | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * | * | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * (BK) | 22 | N/A | |||
| 2 | * (BK) | 22 | N/A | |||
| 3 | * (BK) | 22 | N/A | |||
| 4 | * (BK) | 22 | N/A | |||
| 5 | * (BK) | 22 | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | * | * | N/A | |||

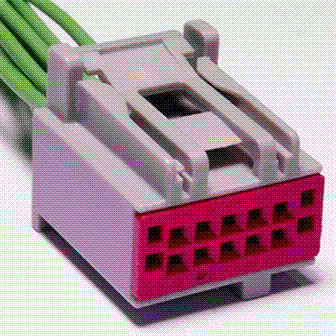

Available Pigtail Kits
Pigtail Kit Part Number WPT-934
Service Part Number:
3U2Z-14S411-LSB
Gauge:
18
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Lamp - Headlamp Switch
- Module - Lighting Control
- Module - Reverse Park Aid (RPA)
- Module - Seat Memory
- Radio
- Switch - Headlamp
- Switch - Headlamp / Foglamp
- Switch - Multifunction
- Switch - Power Window - Driver
- Switch - Turn Signal
Pigtail Kit Part Number WPT-1592
Service Part Number:
3U2Z-14S411-LSC
Gauge:
18
Pin material:
Silver
Cavities:
10
Vehicle Uses:
- Connector - Inline
- Control - Navigation Display
- DVD Player
- Mirror - Sideview
- Mirror - Sideview / Heated
- Module - Front Park Aid
- Module - Lighting Control
- Module - Reverse Park Aid (RPA)
- Module - Seat Memory
- Monitor - Video/DVD
- Radio
- Switch - 4x4 Control
- Switch - Headlamp
- Switch - Headlamp / Foglamp
- Switch - Heated Seat - LH - Front
- Switch - Heated Seat - RH - Front
- Switch - Multifunction
- Switch - Power Window - Driver
- Switch - Turn Signal
