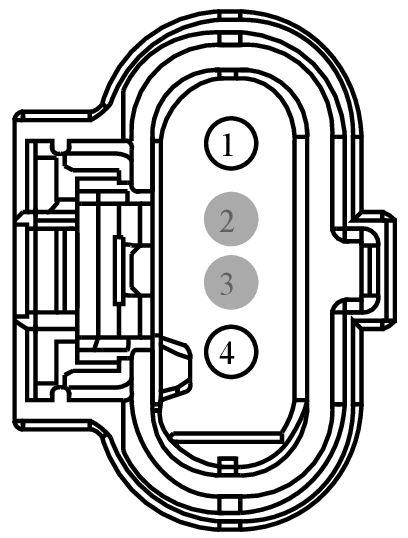

Connector End View C409 - FUEL FILLER DOOR LATCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C409	FUEL FILLER DOOR LATCH	BK	9B243	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL51 (BU-GN)	16	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	EU5T-14474-EAB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CPL11 (GY-BN)	16	CTRL MOD. - DOOR LOCK # ALL LOCK	EU5T-14474-EAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
