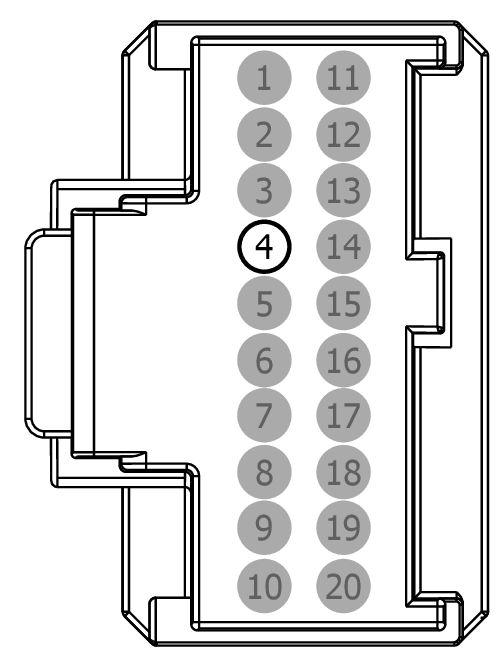

Connector End View C342D - PASSENGER FRONT SEAT MODULE [SCMB]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C342D	PASSENGER FRONT SEAT MODULE [SCMB]	BK	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	VPS81 (WH)	20	CTRL MOD. - FRONT PASSENGER SEAT SWITCH LIN BUS	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

20

Pin material:

Tin

Cavities:

20

Vehicle Uses:

• Camera - Reverse Park Aid
• Module - Image Processing
• Radio - Amplifier
