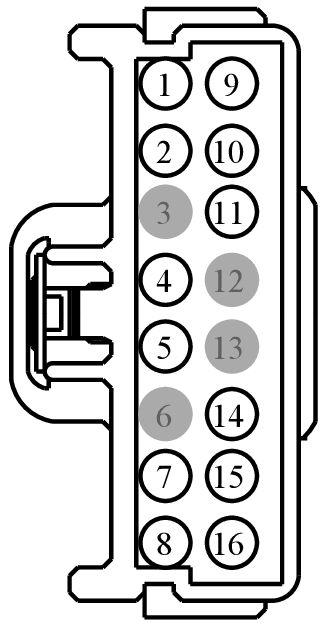

Connector End View C342B - PASSENGER FRONT SEAT MODULE [SCMB]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C342B	PASSENGER FRONT SEAT MODULE [SCMB]	LT GY	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-AAB	DU2Z-14474-DA	1.5
97BG-14474-ABB	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPSL2 (GY-BU)	18	CTRL MOD. - DRIVER SEAT CUSHION RIGHT EXTENSION	N/A
2	CPS73 (GY-BU)	14	CTRL MOD. - FRONT PASSENGER SEAT HEIGHT REAR / PARALLEL DOWN	N/A
3	*	*	Not Used	N/A
4	CPS75 (BN-WH)	14	CTRL MOD. - FRONT PASSENGER SEAT RECLINE INCLINE	N/A
5	CPS74 (VT-WH)	14	CTRL MOD. - FRONT PASSENGER SEAT HEIGHT REAR / PARALLEL UP	N/A
6	*	*	Not Used	N/A
7	CPS76 (WH-GN)	14	CTRL MOD. - FRONT PASSENGER SEAT RECLINE RECLINE	N/A
8	CPS72 (WH-OG)	14	CTRL MOD. - FRONT PASSENGER SEAT HEIGHT FRONT / TILT UP	N/A
9	CPSP8 (BN-GN)	18	SWITCH - LUMBAR PUMP	97BG-14474-ABB
9	RD907 (BN-VT)	20	SWITCH - LUMBAR PUMP	97BG-14474-ABB
10	CPSP9 (GY-VT)	18	SWITCH - LUMBAR SOLENOID (UPPER CELL) DEFLATE	97BG-14474-AAB
10	CBB92 (GN-WH)	20	SWITCH - LUMBAR SOLENOID (UPPER CELL) DEFLATE	97BG-14474-AAB
11	CPSL6 (GN-WH)	18	CTRL MOD. - DRIVER SEAT CUSHION RIGHT RETRACTION	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CPS80 (YE-GN)	14	CTRL MOD. - FRONT PASSENGER SEAT SLIDE REARWARD	N/A
15	CPS79 (WH-BU)	14	CTRL MOD. - FRONT PASSENGER SEAT SLIDE FORWARD	N/A
16	CPS71 (GN-VT)	14	CTRL MOD. - FRONT PASSENGER SEAT HEIGHT FRONT / TILT DOWN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1145

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-GA

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Mirror - Rearview (electrochromatic)
• Radio - Amplifier
