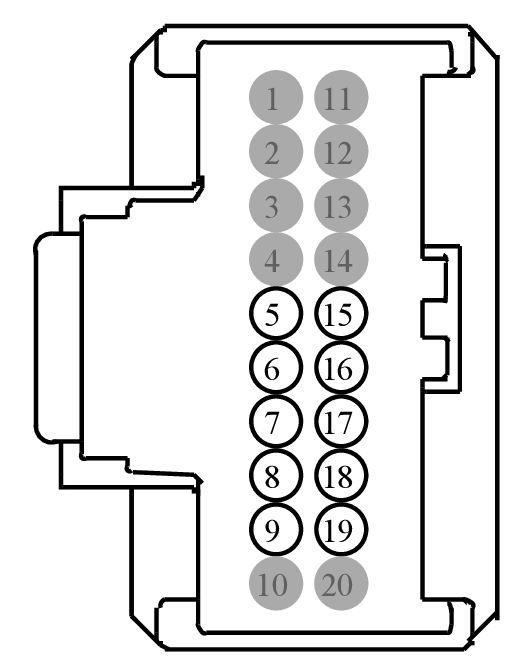

Connector End View C342A - PASSENGER FRONT SEAT MODULE [SCMB]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C342A	PASSENGER FRONT SEAT MODULE [SCMB]	BN	14D230	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-EB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
6	CPSM0 (YE-GN)	18	CTRL MOD. - FRONT PASSENGER SEAT UPPER BACK PIVOT FORE	9U5T-14474-EB
7	CPSL7 (GY-YE)	18	CTRL MOD. - DRIVER SEAT CUSHION LEFT RETRACTION	N/A
8	CPS70 (YE-BU)	18	CTRL MOD. - FRONT PASSENGER SEAT HEAD RESTRAINT UP	N/A
9	CPSF2 (GY-BU)	18	CTRL MOD. - FRONT PASSENGER SEAT HEAD RESTRAINT FORE	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
16	CPSM1 (BN)	18	CTRL MOD. - FRONT PASSENGER SEAT UPPER BACK PIVOT AFT	N/A
17	CPSL3 (VT-BN)	18	CTRL MOD. - DRIVER SEAT CUSHION LEFT EXTENSION	N/A
18	CPS69 (GY-VT)	18	CTRL MOD. - FRONT PASSENGER SEAT HEAD RESTRAINT DOWN	N/A
19	CPSF3 (BU)	18	CTRL MOD. - FRONT PASSENGER SEAT HEAD RESTRAINT AFT	N/A
20	*	*	Not Used	N/A
