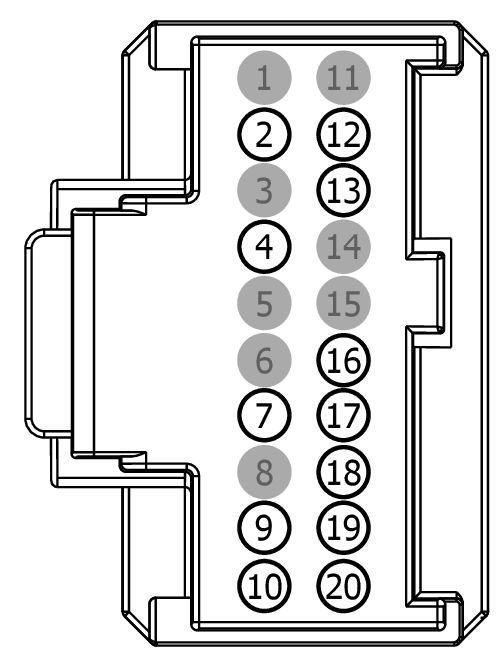

Connector End View C341E - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341E	DRIVER FRONT SEAT MODULE (DSM)	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	RPP08 (GY-BU)	20	CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TILT (RAKE) -	N/A
3	*	*	Not Used	N/A
4	VPS61 (GY)	20	CTRL MOD. - DRIVER SEAT SWITCH LIN BUS	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	CHSA5 (BN-GN)	20	CTRL MOD.- HOT/COLD SEAT # PASSENGER THERMISTOR +	N/A
8	*	*	Not Used	N/A
9	CHSA4 (BN-VT)	20	CTRL MOD.- HOT/COLD SEAT # DRIVER THERMISTOR +	N/A
10	RHSA4 (BN-BU)	20	CTRL MOD.- HOT/COLD SEAT # DRIVER THERMISTOR -	N/A
11	*	*	Not Used	N/A
12	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)	N/A
13	VPP17 (VT-BN)	20	SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL	N/A
17	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL	N/A
18	VHS16 (BU-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK BLOWER SPEED CONTROL	N/A
19	VHS18 (BN-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL	N/A
20	RHSA5 (WH-OG)	20	CTRL MOD.- HOT/COLD SEAT # PASSENGER THERMISTOR -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
