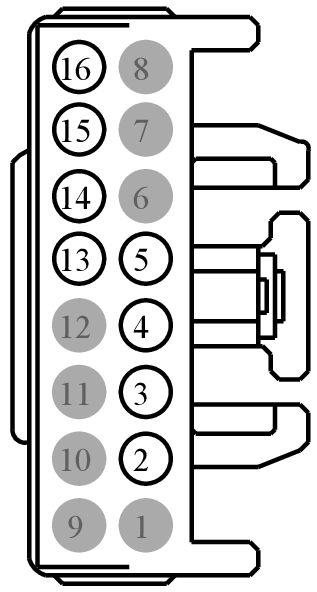

Connector End View C341D - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341D	DRIVER FRONT SEAT MODULE (DSM)	GN	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	RHS02 (BU-OG)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -	N/A
3	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # CUSHION HEATER +	N/A
4	RHS07 (BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -	N/A
5	CHS07 (GY-BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -	N/A
14	RHS03 (GY-OG)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN -	N/A
15	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +	N/A
16	CHS03 (GN-BN)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER FAN +	N/A

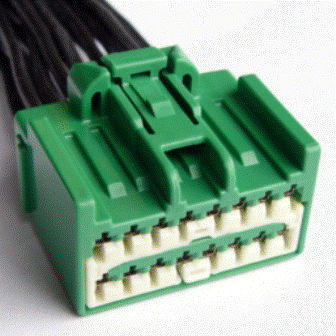

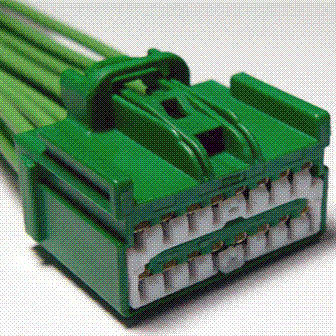

Available Pigtail Kits

Pigtail Kit Part Number WPT-1565

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BRAB

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Junction Box - Relay
• Module - Anti-theft
• Module - Auto Lamps
• Module - Climate Control Seat
• Module - Driver Door
• Module - Remote Keyless Entry
• Module - Tire Pressure
• Radio - Amplifier
• Switch - Power Window - Driver

Pigtail Kit Part Number WPT-645

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BRAA

Gauge:

16

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Module - Anti-theft
• Module - Climate Control Seat
