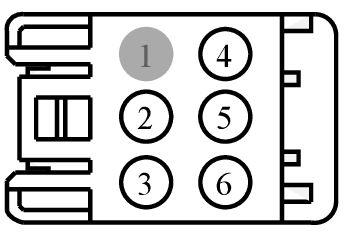

Connector End View C341C - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341C	DRIVER FRONT SEAT MODULE (DSM)	BN	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	SBB72 (VT-RD)	14	FUSE - 30 OR CIRCUIT BREAKER	N/A
3	SBB63 (WH-RD)	14	FUSE - 38 OR CIRCUIT BREAKER	N/A
4	GD382 (BK-GY)	14	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	N/A
5	GD382 (BK-GY)	14	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	N/A
6	GD382 (BK-GY)	14	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	N/A

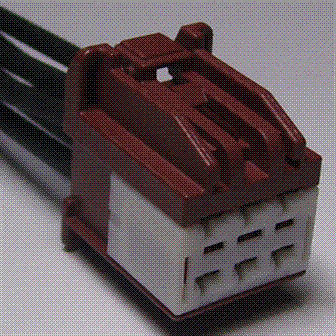

Available Pigtail Kits

Pigtail Kit Part Number WPT-1335

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-JA

Gauge:

12

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Inverter - DC to AC
