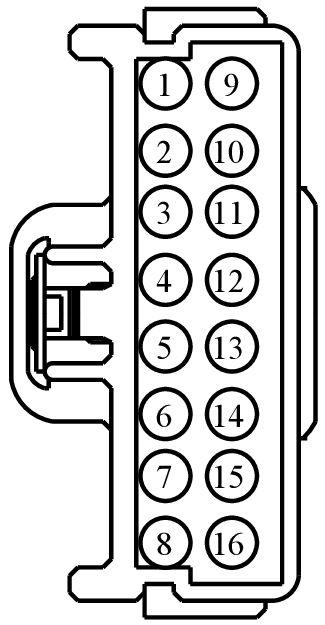

Connector End View C341B - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341B	DRIVER FRONT SEAT MODULE (DSM)	LT GY	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPSL0 (BU-GY)	18	CTRL MOD. - DRIVER SEAT CUSHION RIGHT EXTENSION	N/A
2	CPS04 (YE-OG)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL DOWN	N/A
3	CPP22 (GY-BN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD	N/A
4	CPS08 (VT-OG)	14	CTRL MOD. - DRIVER SEAT RECLINE RECLINE	N/A
5	CPS05 (BU-WH)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL UP	N/A
6	CPP04 (GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP	N/A
7	CPS07 (GY-BN)	14	CTRL MOD. - DRIVER SEAT RECLINE INCLINE	N/A
8	CPS02 (GY-YE)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT DOWN	N/A
9	CPSP7 (GY-VT)	18	SWITCH - LUMBAR PUMP	N/A
9	RD907 (BN-VT)	20	SWITCH - LUMBAR PUMP	N/A
10	CPSP6 (BN-GN)	18	SWITCH - LUMBAR SOLENOID (UPPER CELL) DEFLATE	N/A
10	CBB92 (GN-WH)	20	SWITCH - LUMBAR SOLENOID (UPPER CELL) DEFLATE	N/A
11	CPSL4 (YE)	18	CTRL MOD. - DRIVER SEAT CUSHION RIGHT RETRACTION	N/A
12	CPP03 (GN-VT)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD	N/A
13	CPP23 (VT-GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN	N/A
14	CPS01 (GN-BU)	14	CTRL MOD. - DRIVER SEAT SLIDE FORWARD	N/A
15	CPS06 (GN-WH)	14	CTRL MOD. - DRIVER SEAT SLIDE REARWARD	N/A
16	CPS03 (VT-GY)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1145

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-GA

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Mirror - Rearview (electrochromatic)
• Radio - Amplifier
