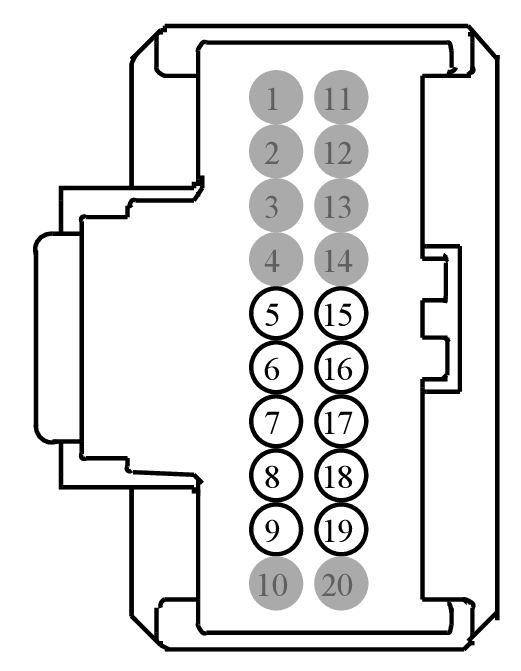

Connector End View C341A - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341A	DRIVER FRONT SEAT MODULE (DSM)	BN	14D231	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
6	CPSL8 (YE-VT)	18	CTRL MOD. - DRIVER SEAT UPPER BACK PIVOT FORE	N/A
7	CPSL5 (WH-BN)	18	CTRL MOD. - DRIVER SEAT CUSHION LEFT RETRACTION	N/A
8	CPS60 (BN)	18	CTRL MOD. - DRIVER SEAT HEAD RESTRAINT UP	N/A
9	CPSF0 (BU)	18	CTRL MOD. - DRIVER SEAT HEAD RESTRAINT FORE	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
16	CPSL9 (WH-BU)	18	CTRL MOD. - DRIVER SEAT UPPER BACK PIVOT AFT	N/A
17	CPSL1 (GN-BU)	18	CTRL MOD. - DRIVER SEAT CUSHION LEFT EXTENSION	N/A
18	CPS59 (GN)	18	CTRL MOD. - DRIVER SEAT HEAD RESTRAINT DOWN	N/A
19	CPSF1 (GN-BN)	18	CTRL MOD. - DRIVER SEAT HEAD RESTRAINT AFT	N/A
20	*	*	Not Used	N/A
