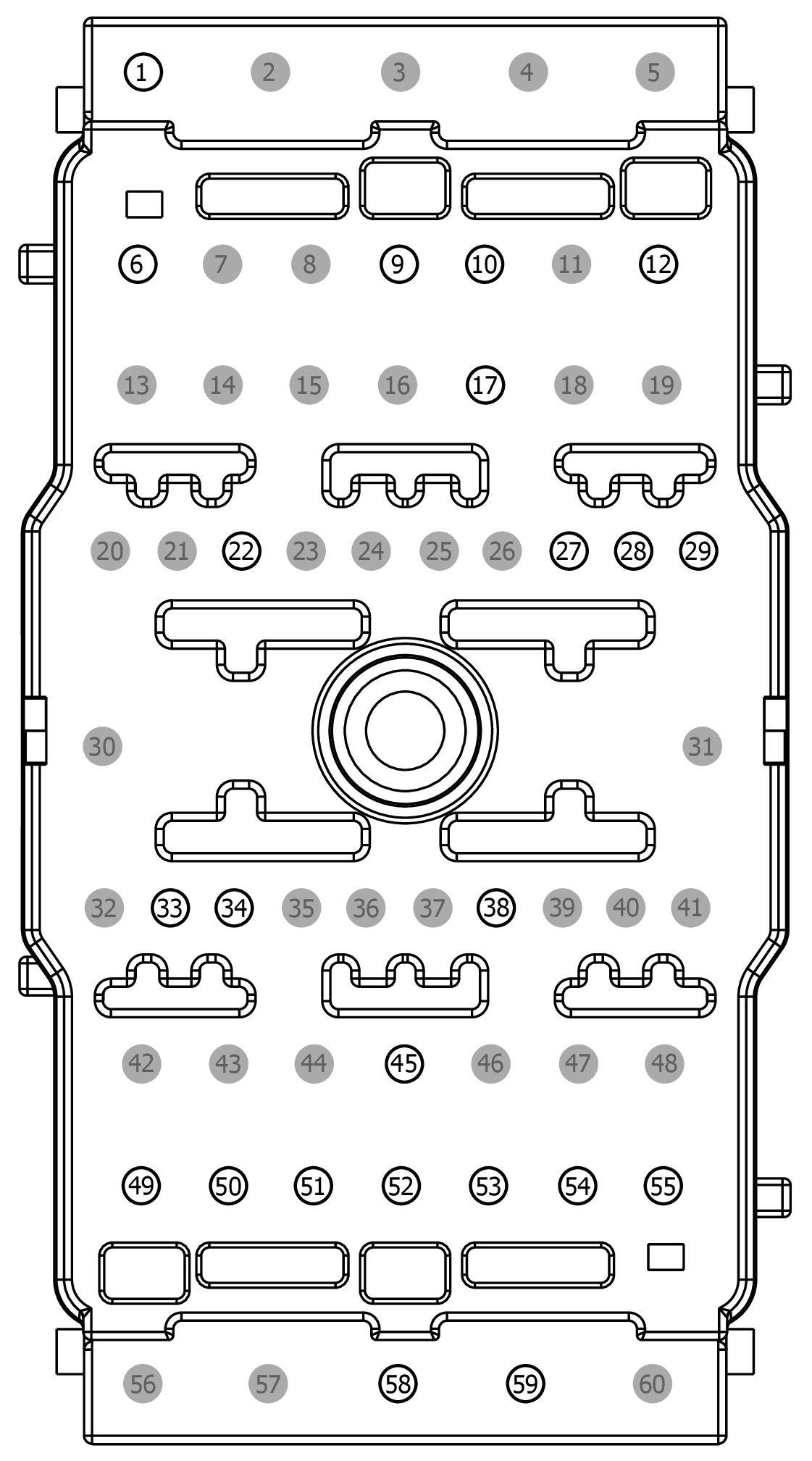

Connector End View C1035C - BATTERY JUNCTION BOX [BCMC]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035C	BATTERY JUNCTION BOX [BCMC]	NA	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-GA	Not Available
EU5T-14474-FA|XF2T-14474-BA	Not Available
EU5T-14474-HA	EU2Z-14474-AA	2.8
XF2T-14474-BA	EU2Z-14474-AA	2.8
EU5T-14474-EA	EU2Z-14474-AA	2.8
EU5T-14474-FA	EU2Z-14474-AA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBBD1 (BN)	10	FUSE - 130 OR CIRCUIT BREAKER	EU5T-14474-HA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CBB61 (BU-GY)	14	FUSE - 61 OR CIRCUIT BREAKER	XF2T-14474-BA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CBBH7 (BN-GN)	20	FUSE - 177 OR CIRCUIT BREAKER	EU5T-14474-EA
10	SBBE6 (YE-RD)	20	FUSE - 146 OR CIRCUIT BREAKER	EU5T-14474-EA
11	*	*	Not Used	N/A
12	SBBB2 (VT-GN)	14	FUSE - 112 OR CIRCUIT BREAKER	EU5T-14474-FA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	SBB91 (BU-RD)	10	FUSE - 91 OR CIRCUIT BREAKER	EU5T-14474-HA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	CLF03 (VT-BN)	22	CTRL MOD. - BEAM HIGH RIGHT	BU5T-14474-UA
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	CYE12 (VT-OG)	20	SENSOR - CLIMATE REFRIGERANT	BU5T-14474-UA
28	CYE13 (BN-WH)	20	SENSOR - CLIMATE VACUUM	BU5T-14474-UA
29	VYB31 (YE-OG)	22	CTRL MOD. - POWERTRAIN # HIGH VOLTAGE BATTERY LT COOLANT VALVE 1	BU5T-14474-UA
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	CLS10 (GN-BN)	22	CTRL MOD. - REVERSE LEFT OR COMMON	BU5T-14474-UA
34	CLF02 (GY-BN)	22	CTRL MOD. - BEAM HIGH LEFT	BU5T-14474-UA
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	CAT17 (BN)	22	RELAY - TRAILER TOW PARK LAMPS	BU5T-14474-UA
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	SBB57 (RD)	10	FUSE - 57 OR CIRCUIT BREAKER	EU5T-14474-HA
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	CAT16 (GY-BN)	18	RELAY - TRAILER TOW BACKUP LAMPS	EU5T-14474-EA
50	SBB82 (YE)	14	FUSE - 82 OR CIRCUIT BREAKER	EU5T-14474-FA
51	SBBD6 (VT-GY)	14	FUSE - 126 OR CIRCUIT BREAKER	EU5T-14474-FA
52	SBBB5 (BU-GN)	10	FUSE - 115 OR CIRCUIT BREAKER	EU5T-14474-HA
53	SBB80 (VT-RD)	14	FUSE - 80 OR CIRCUIT BREAKER	EU5T-14474-FA
54	SBBC7 (WH-RD)	12	FUSE - 127 OR CIRCUIT BREAKER	EU5T-14474-FA|XF2T-14474-BA
54	SBBC7 (WH-RD)	10	FUSE - 127 OR CIRCUIT BREAKER	EU5T-14474-FA|XF2T-14474-BA
55	CAT11 (BN)	18	CTRL MOD. - TRAILER TOW # PARK LAMPS	EU5T-14474-EA
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	SBB42 (YE-RD)	12	FUSE - 42 OR CIRCUIT BREAKER	EU5T-14474-GA
59	SBBA5 (RD)	6	FUSE - 105 OR CIRCUIT BREAKER	YF1T-14474-BA
60	*	*	Not Used	N/A
