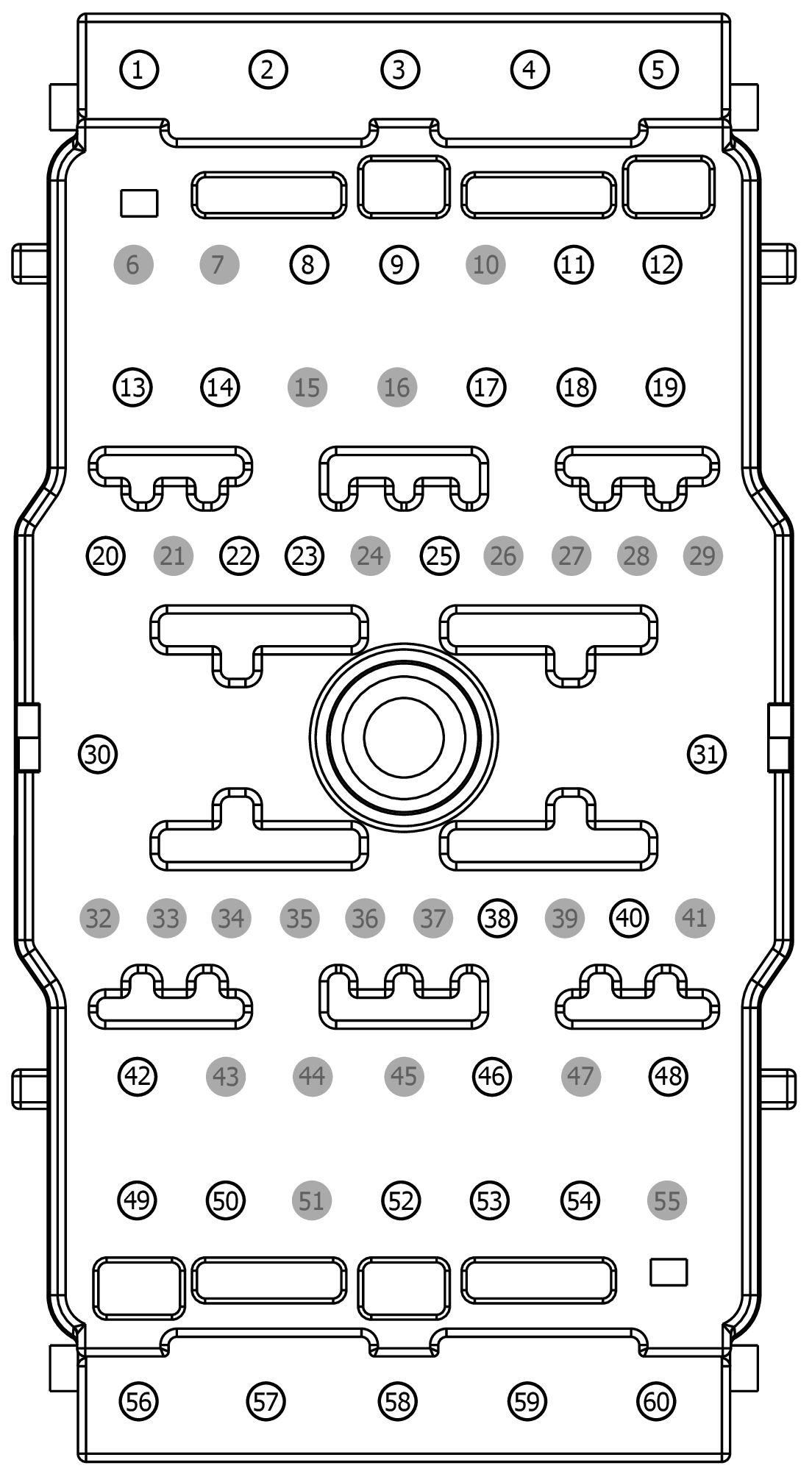

Connector End View C1035A - BATTERY JUNCTION BOX [BCMC]

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035A	BATTERY JUNCTION BOX [BCMC]	BK	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-BAA	Not Available
EU5T-14474-FA	EU2Z-14474-AA	2.8
EU5T-14474-HA	EU2Z-14474-AA	2.8
EU5T-14474-EA	EU2Z-14474-AA	2.8
BU5T-14474-UA	DU2Z-14474-DA	1.5
XF2T-14474-BA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB33 (WH-BN)	14	FUSE - 33 OR CIRCUIT BREAKER	EU5T-14474-FA
2	CBB13 (GY-BN)	10	FUSE - 13 OR CIRCUIT BREAKER	YF1T-14474-BA
3	CBB64 (VT-WH)	10	FUSE - 64 OR CIRCUIT BREAKER	EU5T-14474-HA
4	SBB36 (GN-RD)	10	FUSE - 36 OR CIRCUIT BREAKER	YF1T-14474-BA
5	CBB88 (GY-YE)	12	FUSE - 88 OR CIRCUIT BREAKER	EU5T-14474-FA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CBBD9 (BN-WH)	22	FUSE - 139 OR CIRCUIT BREAKER	EU5T-14474-BAA
9	CBBC5 (YE)	22	FUSE - 125 OR CIRCUIT BREAKER	EU5T-14474-BAA
10	*	*	Not Used	N/A
11	CDC40 (VT-GY)	20	RELAY - DELAY ACCESSORY	EU5T-14474-EA
12	CBBE2 (GN-BU)	22	FUSE - 142 OR CIRCUIT BREAKER	EU5T-14474-BAA
13	SBBA9 (GY-RD)	10	FUSE - 109 OR CIRCUIT BREAKER	EU5T-14474-HA
14	CBB34 (VT-BN)	16	FUSE - 34 OR CIRCUIT BREAKER	EU5T-14474-EA
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CBBD3 (GY-BN)	18	FUSE - 133 OR CIRCUIT BREAKER	EU5T-14474-EA
18	GD112 (BK-GN)	22	GROUND - COWL TOP LEFT	EU5T-14474-BAA
19	CE608 (VT-GN)	10	RELAY - FUEL PUMP	EU5T-14474-HA
20	CRH04 (VT-BN)	22	CTRL MOD. - RELAY HORN	BU5T-14474-UA
21	*	*	Not Used	N/A
22	CBBC4 (VT-RD)	22	FUSE - 124 OR CIRCUIT BREAKER	BU5T-14474-UA
23	CBB71 (BU-OG)	20	FUSE - 71 OR CIRCUIT BREAKER	BU5T-14474-UA
24	*	*	Not Used	N/A
25	CH123 (VT-GN)	22	CTRL MOD. - BLOWER MOTOR RELAY	BU5T-14474-UA
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	SBF02 (YE-RD)	6	FUSE - 2	YF1T-14474-BA
31	SBBB1 (WH-RD)	6	FUSE - 111 OR CIRCUIT BREAKER	YF1T-14474-BA
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	CDC55 (GY)	22	RELAY - RUN; START	BU5T-14474-UA
39	*	*	Not Used	N/A
40	CDC64 (WH-BU)	22	RELAY - RUN; ACCESSORY	BU5T-14474-UA
41	*	*	Not Used	N/A
42	SBB38 (BN-RD)	12	FUSE - 38 OR CIRCUIT BREAKER	XF2T-14474-BA
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	*	*	Not Used	N/A
46	SBB31 (WH-RD)	10	FUSE - 31 OR CIRCUIT BREAKER	EU5T-14474-HA
47	*	*	Not Used	N/A
48	CBB50 (YE-OG)	10	FUSE - 50 OR CIRCUIT BREAKER	EU5T-14474-HA
49	CBBB8 (GY-BU)	10	FUSE - 118 OR CIRCUIT BREAKER	EU5T-14474-HA
50	CBB54 (VT-OG)	18	FUSE - 54 OR CIRCUIT BREAKER	EU5T-14474-EA
51	*	*	Not Used	N/A
52	CBB25 (WH-OG)	10	FUSE - 25 OR CIRCUIT BREAKER	EU5T-14474-HA
53	CBB22 (GN-OG)	22	FUSE - 22 OR CIRCUIT BREAKER	EU5T-14474-BAA
54	SBB44 (GN-RD)	22	FUSE - 44 OR CIRCUIT BREAKER	EU5T-14474-BAA
55	*	*	Not Used	N/A
56	SBB30 (BN-WH)	10	FUSE - 30 OR CIRCUIT BREAKER	EU5T-14474-HA
57	SBB03 (BU-RD)	6	FUSE - 3 OR CIRCUIT BREAKER	YF1T-14474-BA
58	SBB73 (RD)	10	FUSE - 73 OR CIRCUIT BREAKER	EU5T-14474-HA
59	SBB01 (RD)	6	FUSE - 1 OR CIRCUIT BREAKER	YF1T-14474-BA
60	SBB41 (RD)	10	FUSE - 41 OR CIRCUIT BREAKER	EU5T-14474-HA
