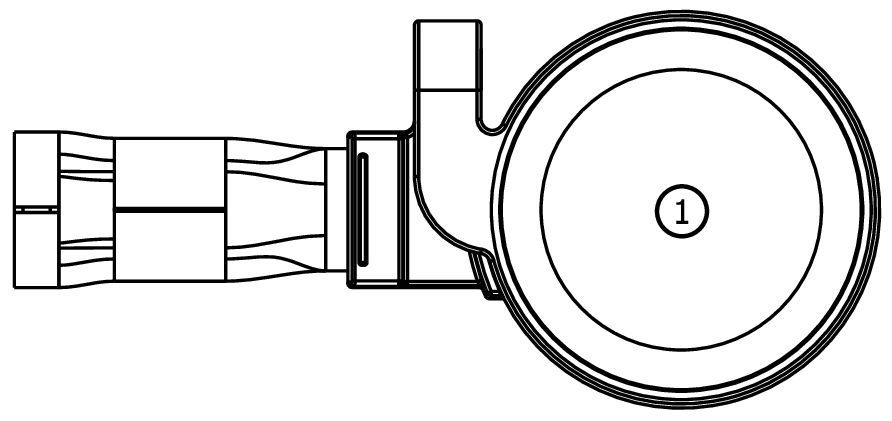

Connector End View C1011B - BELT-DRIVEN INTEGRATED STARTER GENERATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1011B	BELT-DRIVEN INTEGRATED STARTER GENERATOR	14B060			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SDC02 (RD)	2	BATTERY - # PLUS	N/A
