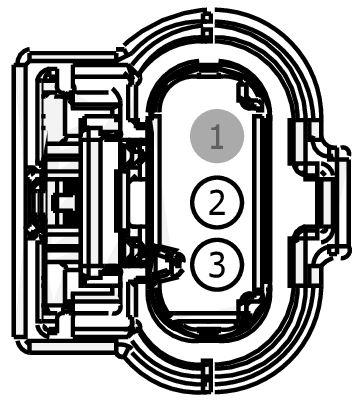

Connector End View C1011A - BELT-DRIVEN INTEGRATED STARTER GENERATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1011A	BELT-DRIVEN INTEGRATED STARTER GENERATOR	BK	14B060	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-AHA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	VYE06 (VT-BN)	20	TRANSMISSION CAN -	JU5T-14474-AHA
3	VYE05 (BU)	20	TRANSMISSION CAN +	JU5T-14474-AHA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1602

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Delta Pressure Feedback EGR
• Sensor - Fuel Rail Pressure

Pigtail Kit Part Number WPT-1558

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ASA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
