Wastegate Vacuum Sensor: Installation

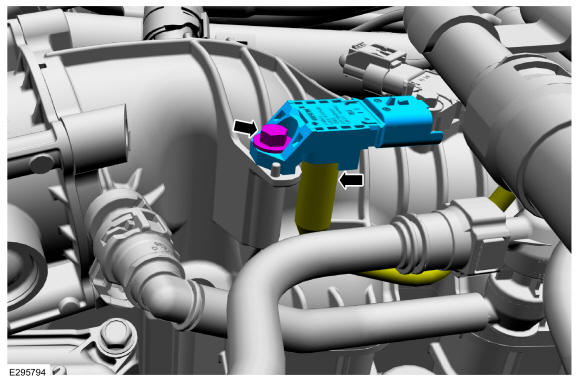

  1. Connect the wastegate vacuum sensor hose. Install the wastegate vacuum sensor, then install and tighten the wastegate vacuum sensor retainer.

    Torque: 62 lb.in (7 Nm)

    GFD531692Courtesy of FORD MOTOR COMPANY

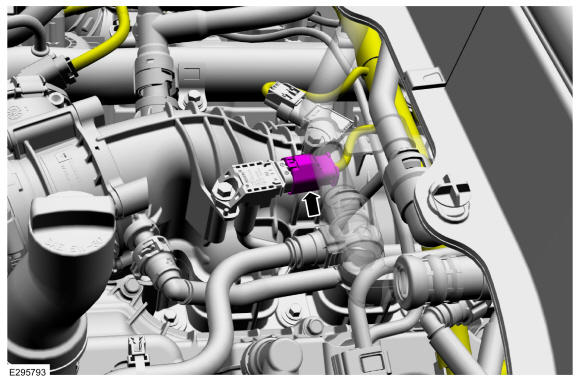

  2. Connect the wastegate vacuum sensor electrical connector.
GFD531691Courtesy of FORD MOTOR COMPANY
