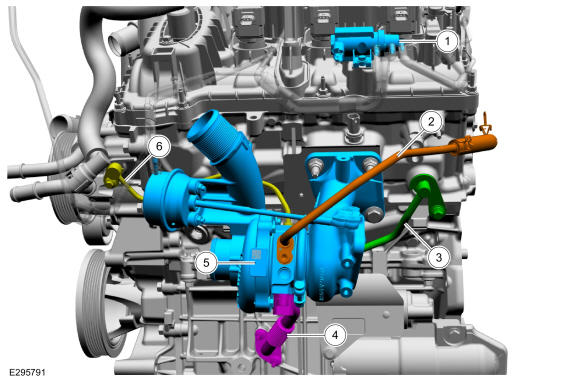

Turbocharger 3.0L EcoBoost LH

GFD531679Courtesy of FORD MOTOR COMPANY
Item Description
1 Wastegate control valve solenoid
2 Turbocharger coolant return tube LH
3 Turbocharger coolant supply tube LH
4 Turbocharger oil return tube LH
5 Turbocharger LH
6 Turbocharger oil supply tube LH
