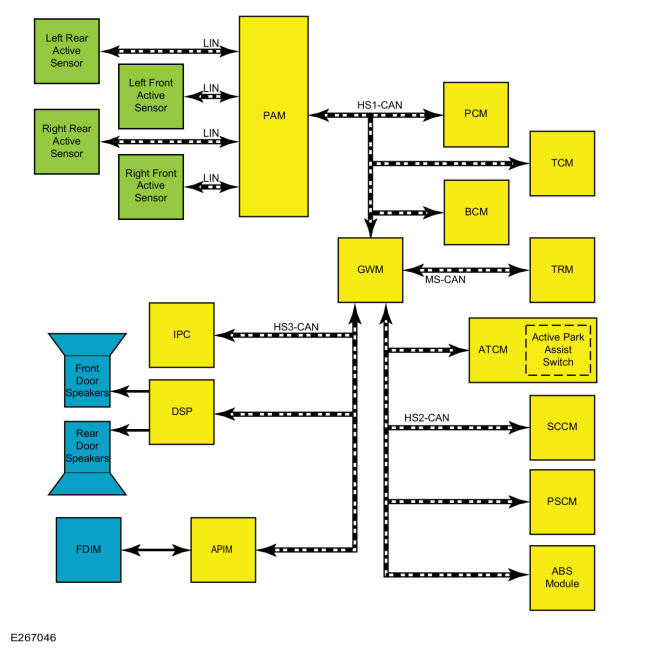

Home >> Lincoln >> 2021 >> Navigator Reserve, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Parking Aid - Vehicles With: Active Park Assist >> Description And Operation >> Parking Aid - System Operation And Component Description >> System Operation >> System Diagram
