Adjustable Pedal

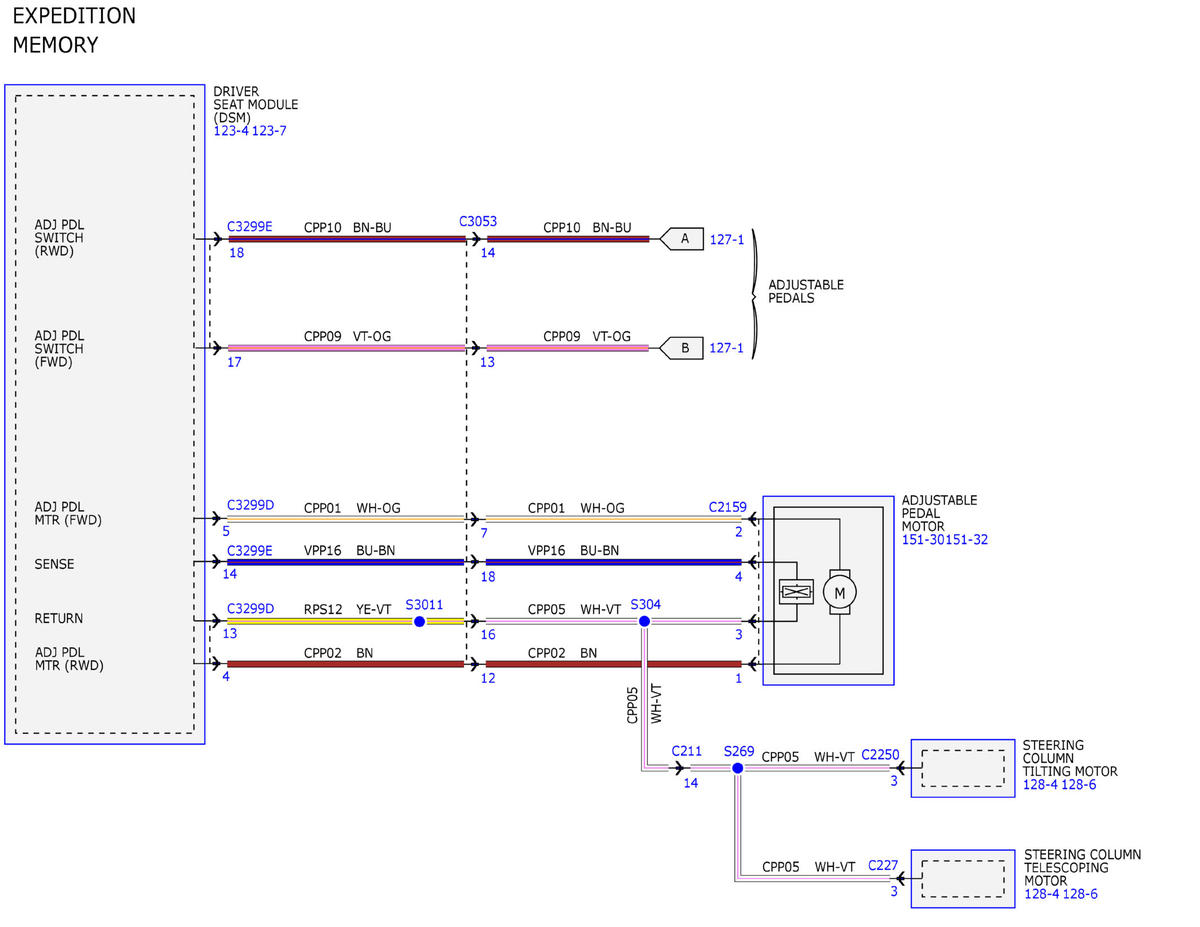

Fig 1: Adjustable Pedal Wiring Diagram (1 Of 8)
GFDWR115485Courtesy of FORD MOTOR COMPANY

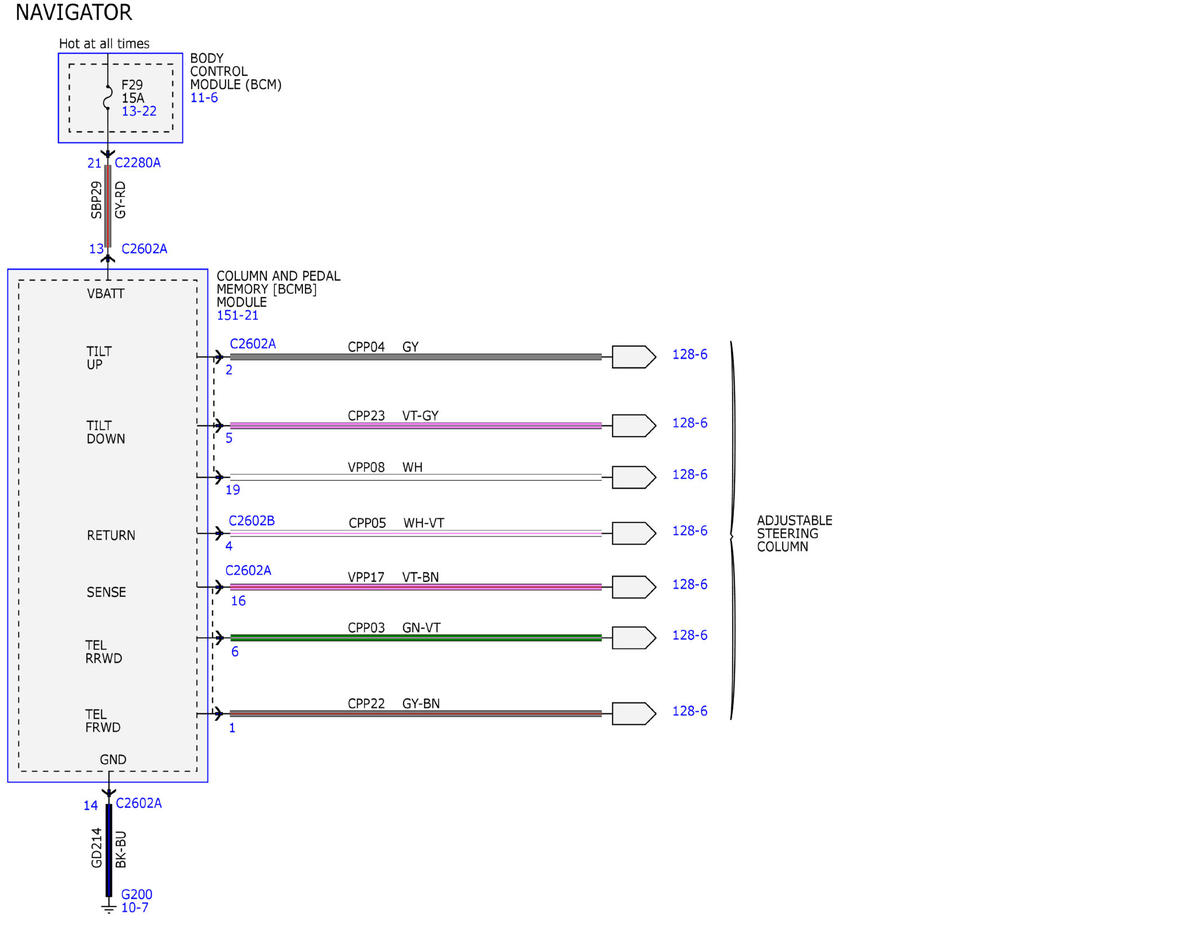

Fig 2: Adjustable Pedal Wiring Diagram (2 Of 8)
GFDWR115486Courtesy of FORD MOTOR COMPANY

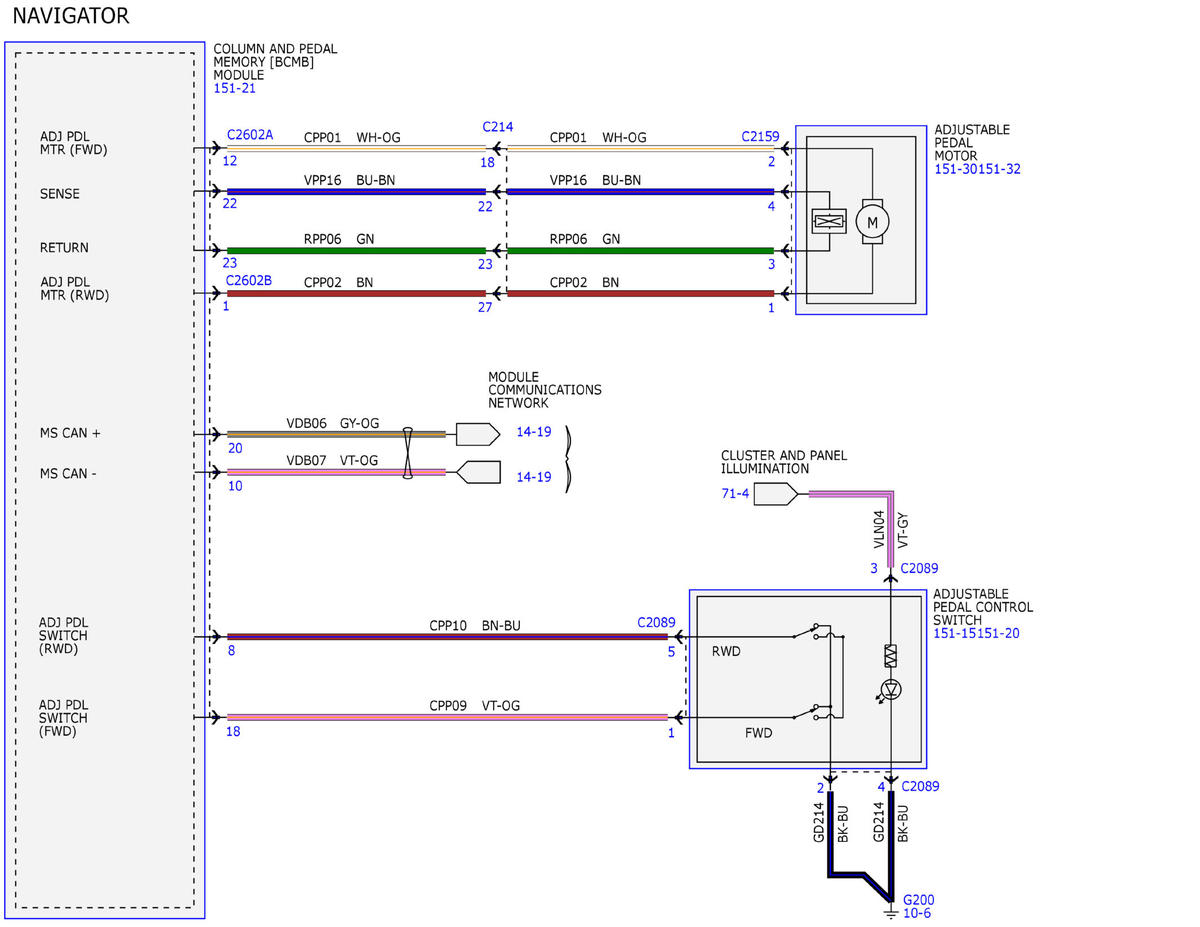

Fig 3: Adjustable Pedal Wiring Diagram (3 Of 8)
GFDWR115487Courtesy of FORD MOTOR COMPANY

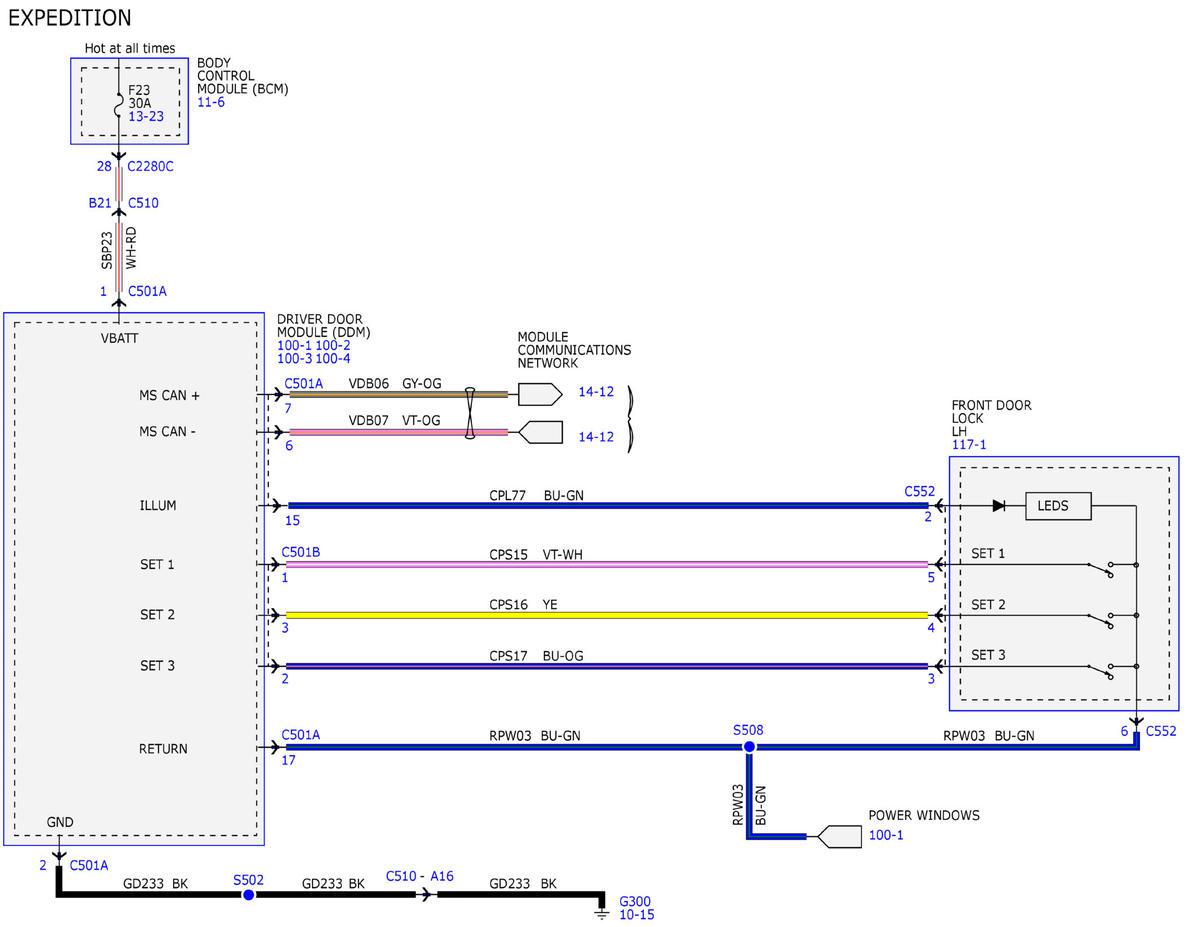

Fig 4: Adjustable Pedal Wiring Diagram (4 Of 8)
GFDWR115488Courtesy of FORD MOTOR COMPANY

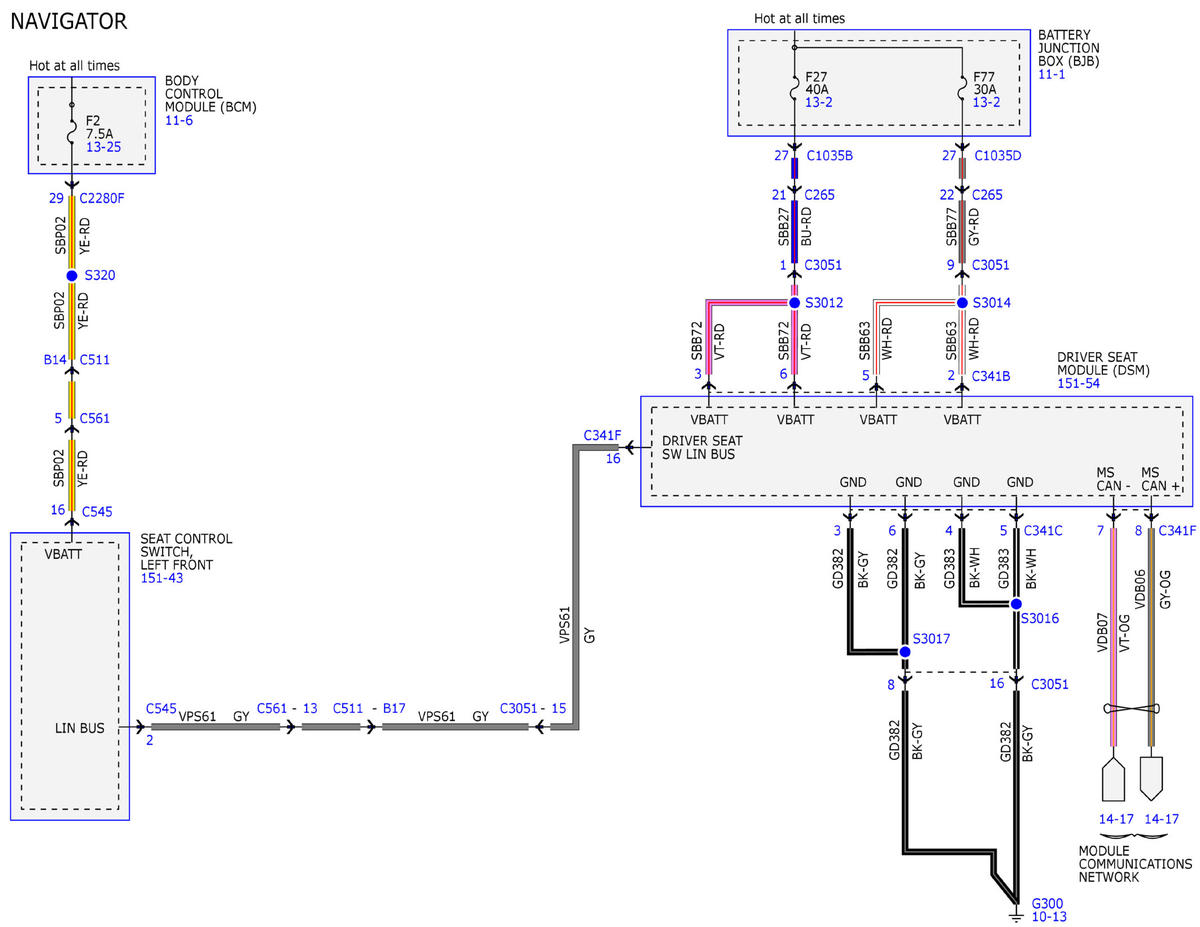

Fig 5: Adjustable Pedal Wiring Diagram (5 Of 8)
GFDWR115489Courtesy of FORD MOTOR COMPANY

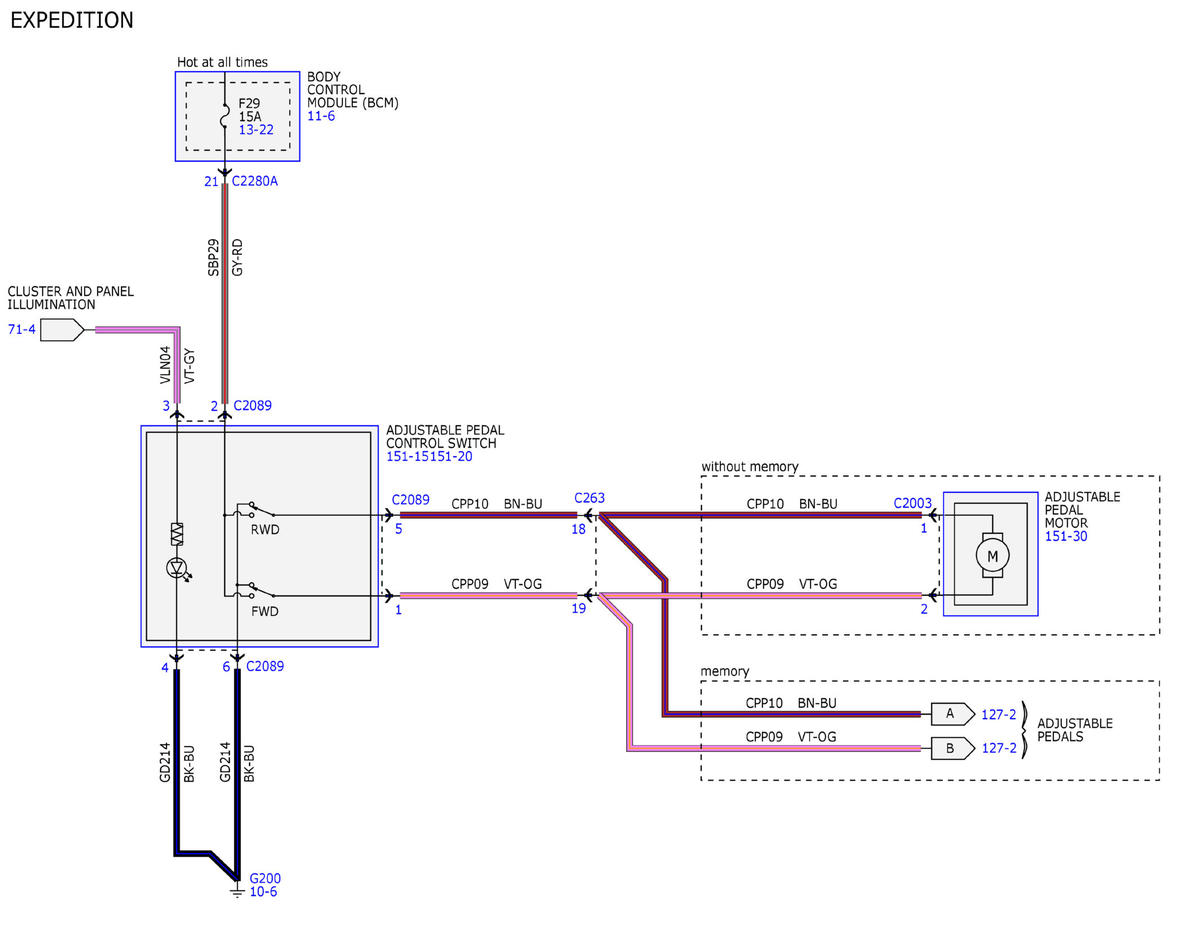

Fig 6: Adjustable Pedal Wiring Diagram (6 Of 8)
GFDWR115490Courtesy of FORD MOTOR COMPANY
Fig 7: Adjustable Pedal Wiring Diagram (7 Of 8)
GFDWR115491Courtesy of FORD MOTOR COMPANY
Fig 8: Adjustable Pedal Wiring Diagram (8 Of 8)
GFDWR115492Courtesy of FORD MOTOR COMPANY
