Side Parking Aid Camera: Removal

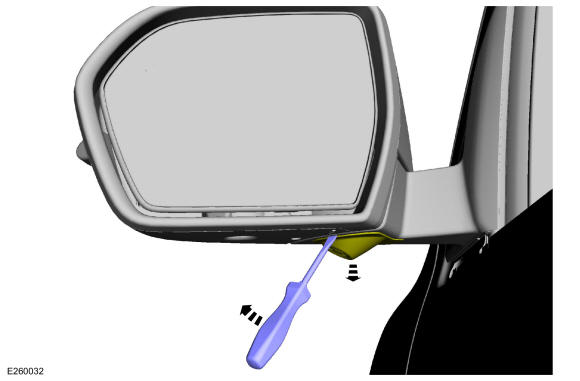

  1. Release the tab and lower the side parking aid camera bracket. Use the General Equipment: Flat-Bladed Screwdriver
    GFD544767Courtesy of FORD MOTOR COMPANY

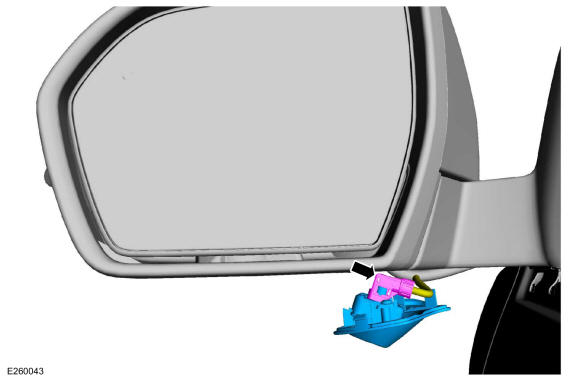

  2. Disconnect the co-ax connector and remove the side parking aid camera and bracket assembly.
    GFD544768Courtesy of FORD MOTOR COMPANY

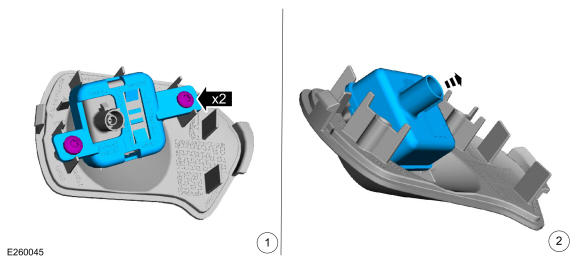

  3. Remove the side parking aid camera.

    1. Remove the screws and the side parking aid camera bracket.
    2. Separate the side parking aid camera from the bracket.

GFD544769Courtesy of FORD MOTOR COMPANY
