Rear Parking Aid Camera: Removal

Remove the reversing lamp. Refer to: Reversing Lamp .

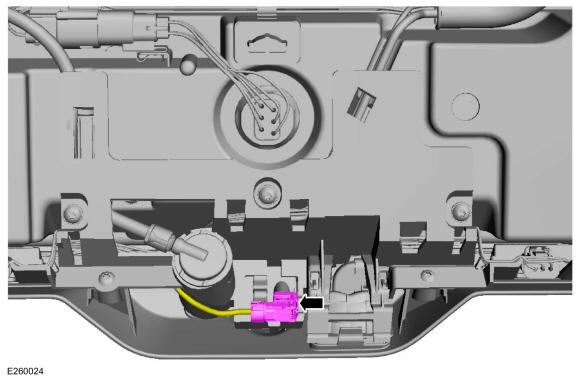

Disconnect the co-axial cable connector.

Courtesy of FORD MOTOR COMPANY

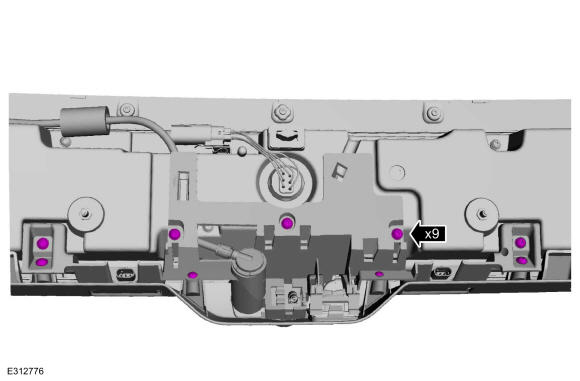

Remove the screws.

Courtesy of FORD MOTOR COMPANY

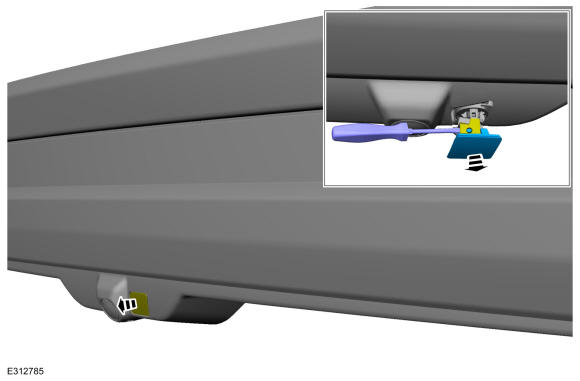

Manually extend the camera washer nozzle and remove the washer nozzle door. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

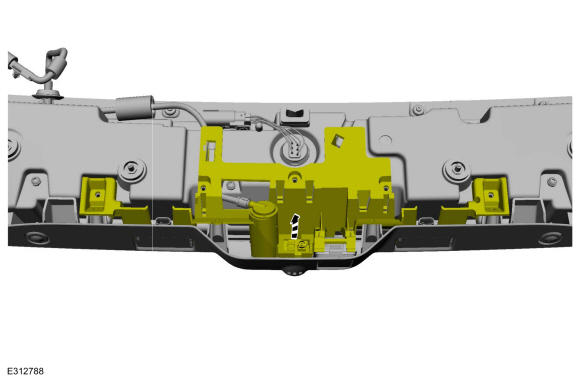

Position the rear view camera bracket for access.

Courtesy of FORD MOTOR COMPANY

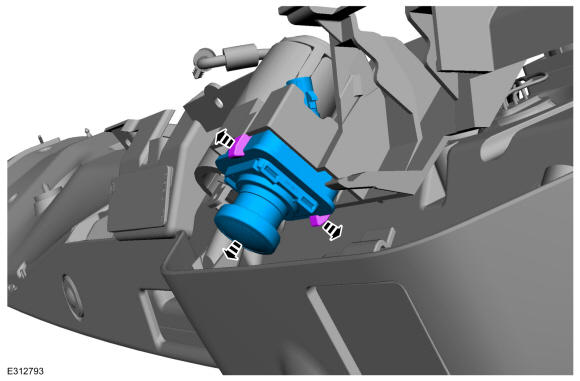

Release the tabs and remove the rear view camera.

Courtesy of FORD MOTOR COMPANY
