Front Parking Aid Camera: Removal

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

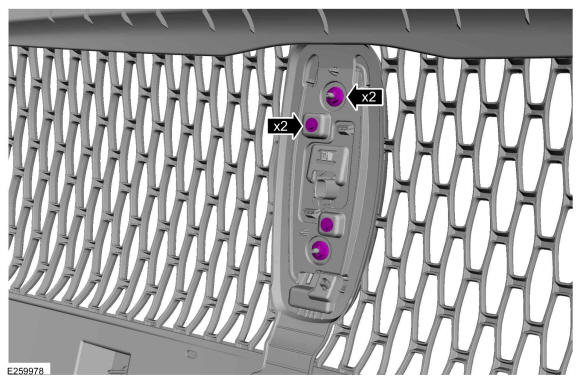

  2. Remove the screws and the speed nuts.
    GFD544754Courtesy of FORD MOTOR COMPANY

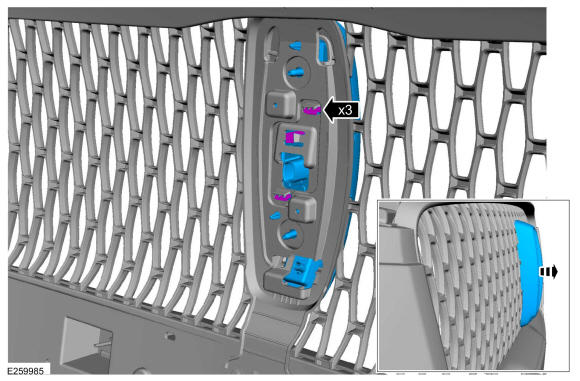

  3. Release the tabs and remove the radiator grille emblem housing assembly.
    GFD544755Courtesy of FORD MOTOR COMPANY
  4. Remove the front parking aid camera.
GFD544756Courtesy of FORD MOTOR COMPANY
