Brake Vacuum Sensor: Removal

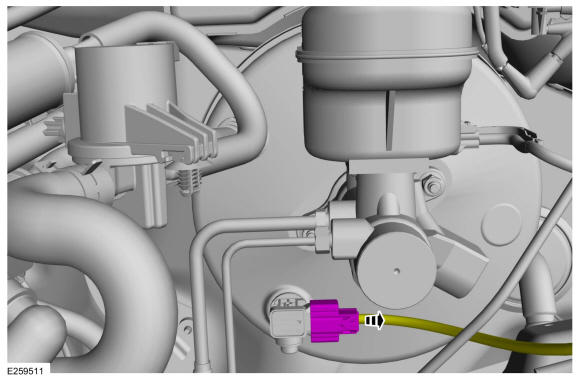

  1. Disconnect the vacuum sensor electrical connector.
    GFD542328Courtesy of FORD MOTOR COMPANY

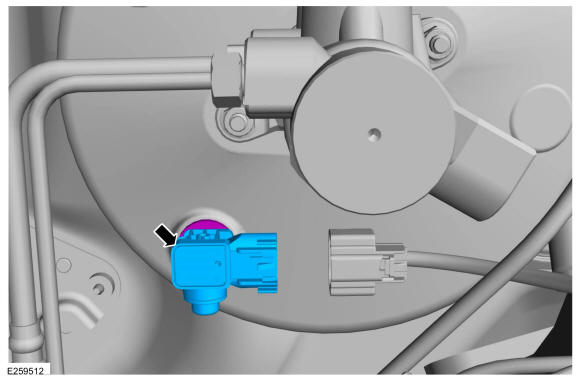

  2. Remove the vacuum sensor.
GFD542329Courtesy of FORD MOTOR COMPANY
