Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.

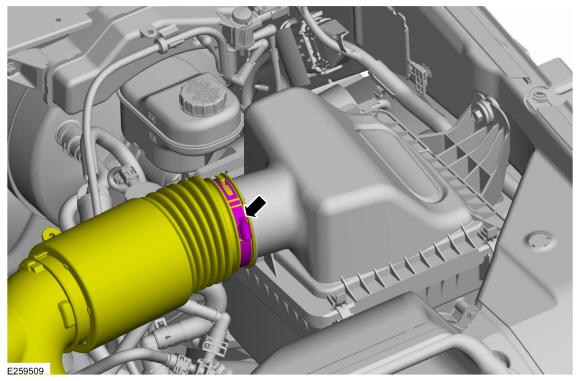

Loosen the clamp and position the air cleaner outlet pipe aside.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

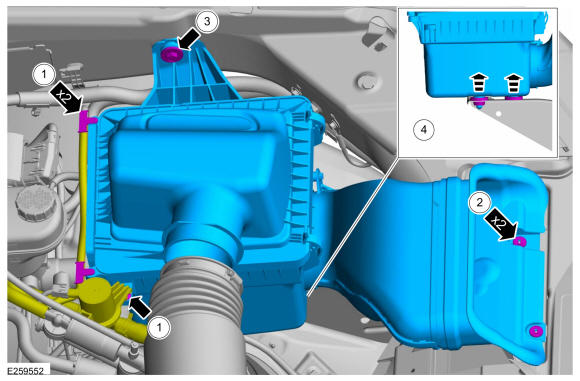

1. Disconnect the brake vacuum reservoir electrical connector. Detach the retainer and position the brake vacuum reservoir lines aside.
2. Remove the retainers.
3. Remove the bolt.
  Torque

  : 177 lb.in (20 Nm)
4. Loosen and remove the air cleaner from mountings.
Courtesy of FORD MOTOR COMPANY
Remove the brake master cylinder. Refer to: Brake Master Cylinder .

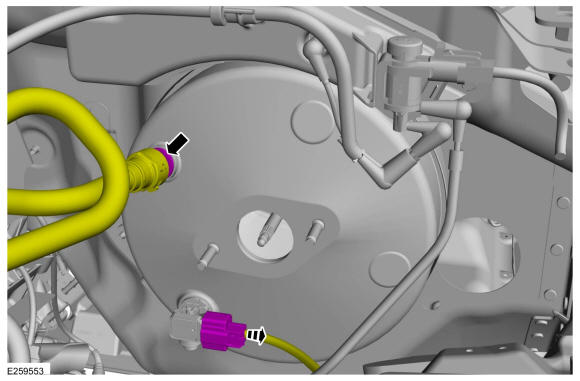

Disconnect the vacuum tube and the vacuum sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch .

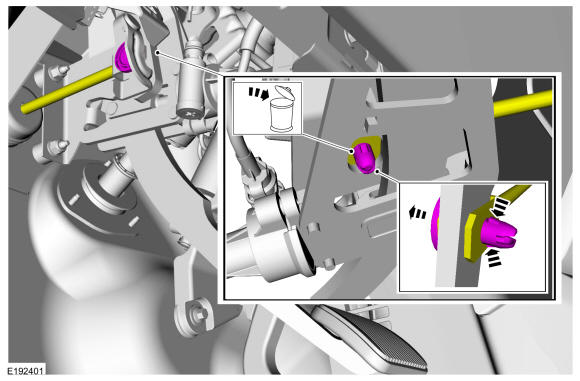

Remove the brake pedal clevis pin, and disconnect the brake booster push rod from the brake pedal arm. Discard the brake pedal clevis pin.

Courtesy of FORD MOTOR COMPANY

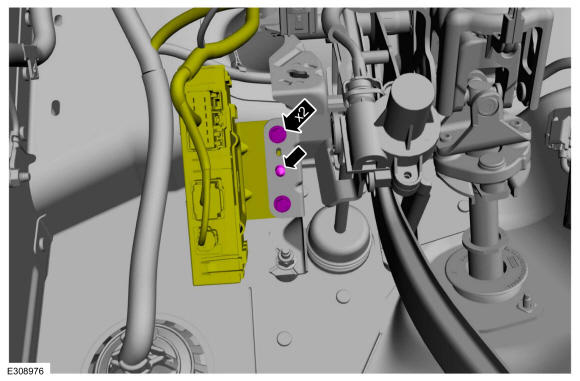

If equipped. Remove the bolts, retainer and position aside the TRM.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

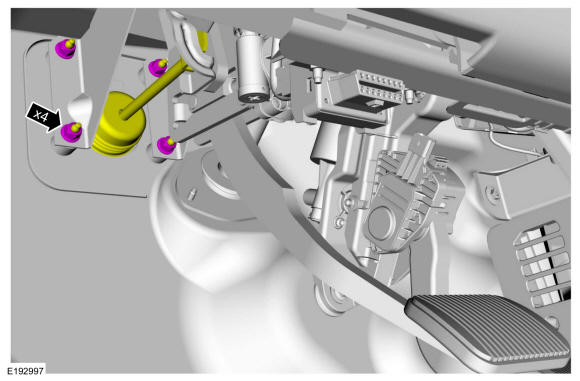

Remove the brake booster mounting nuts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

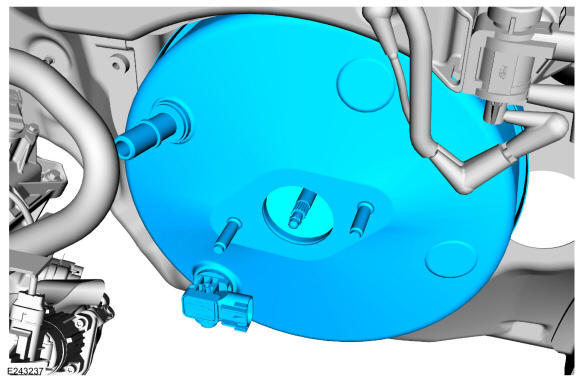

Remove the brake booster.

Courtesy of FORD MOTOR COMPANY
