Parking Brake Actuator Motor: Removal

RH or LH parking brake actuator motor

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

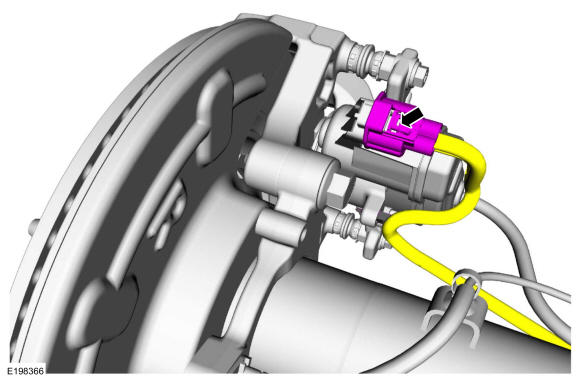

2. NOTE: RH side shown, LH similar.

   Disconnect the parking brake actuator motor electrical connector.

   Courtesy of FORD MOTOR COMPANY

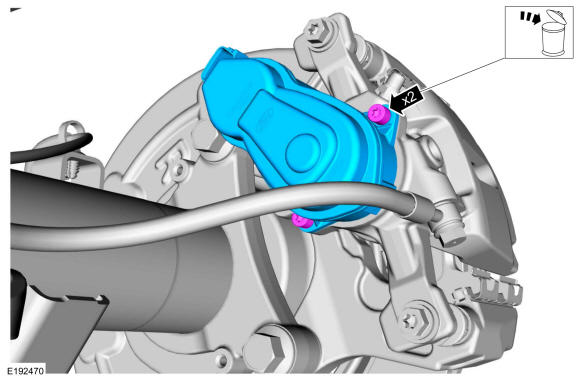

   RH parking brake actuator motor

3. NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

   Remove the 2 bolts and the parking brake actuator motor. Discard the bolts.

   Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

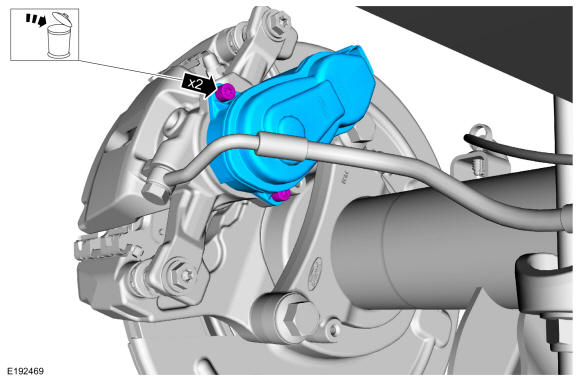

   LH parking brake actuator motor

4. NOTE: Due to minor differences in LH brake hoses, on some vehicles it may be necessary to disconnect the brake hose from the brake caliper to provide enough clearance to remove the actuator motor. Do not pry on or bend the metal portion of the brake hose or damage to the hose may occur.
   NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

   Remove the 2 bolts and the parking brake actuator motor. Discard the bolts. If there is not enough clearance to remove the LH actuator motor proceed to the next step.

   Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

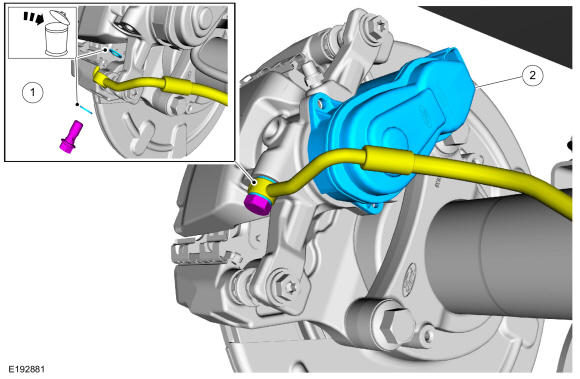

5. NOTE: Make sure that protective caps are removed prior to installation.
   1. NOTE: The blanking caps/plugs must not be removed until the brake tubes are ready to be connected.

      Remove the bolt and disconnect the brake hose. Discard the washers.

      Torque: 26 lb.ft (35 Nm)

   2. Remove the parking brake actuator motor.

   Courtesy of FORD MOTOR COMPANY

   RH or LH parking brake actuator motor

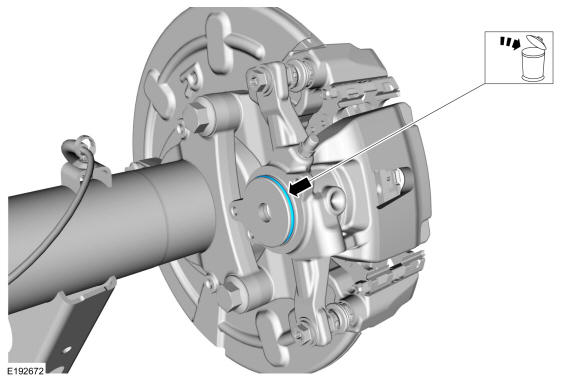

6. NOTE: RH side shown, LH similar.

   Remove and discard the O-ring.

Courtesy of FORD MOTOR COMPANY
