Turn Signal/Stop/Hazard Lamps

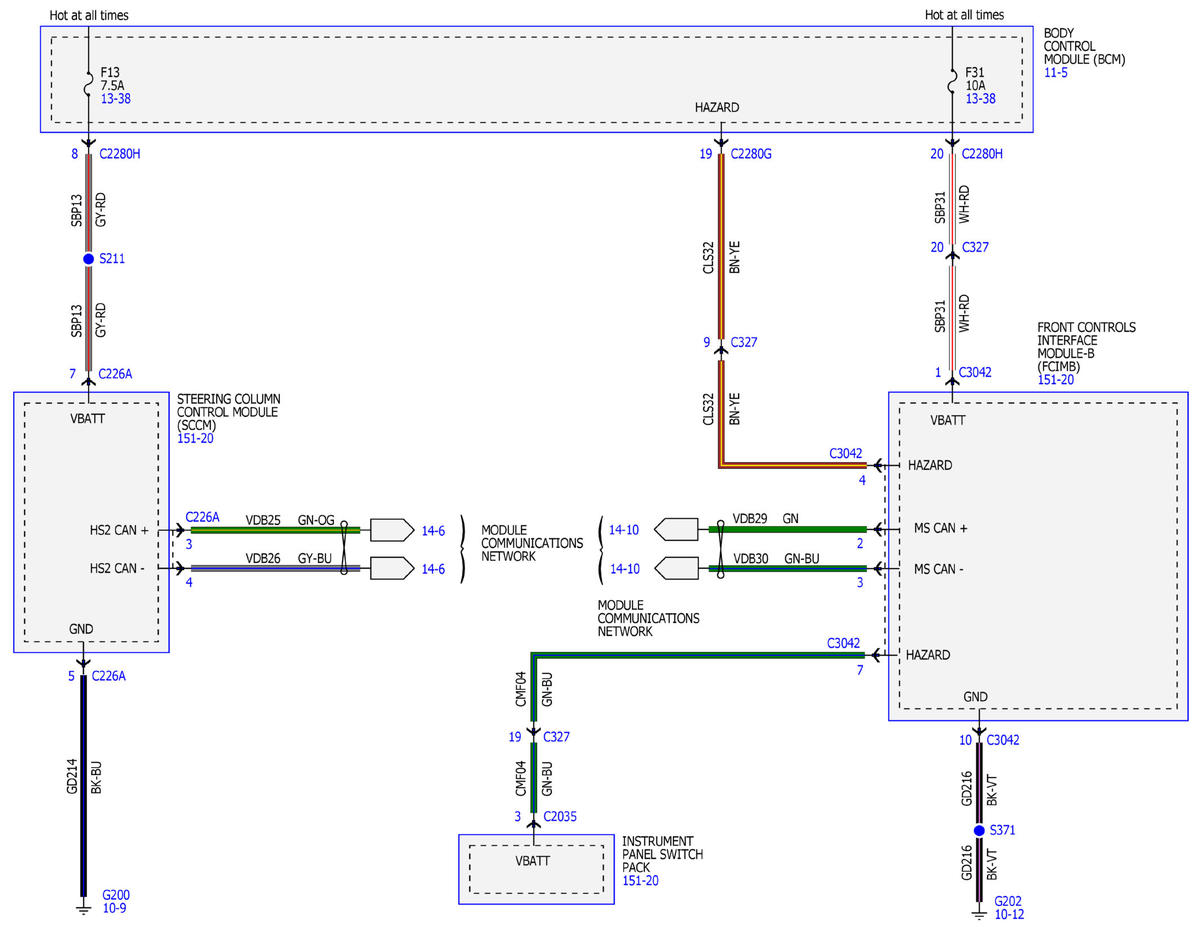

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (1 Of 8)
GFDWR149915Courtesy of FORD MOTOR COMPANY

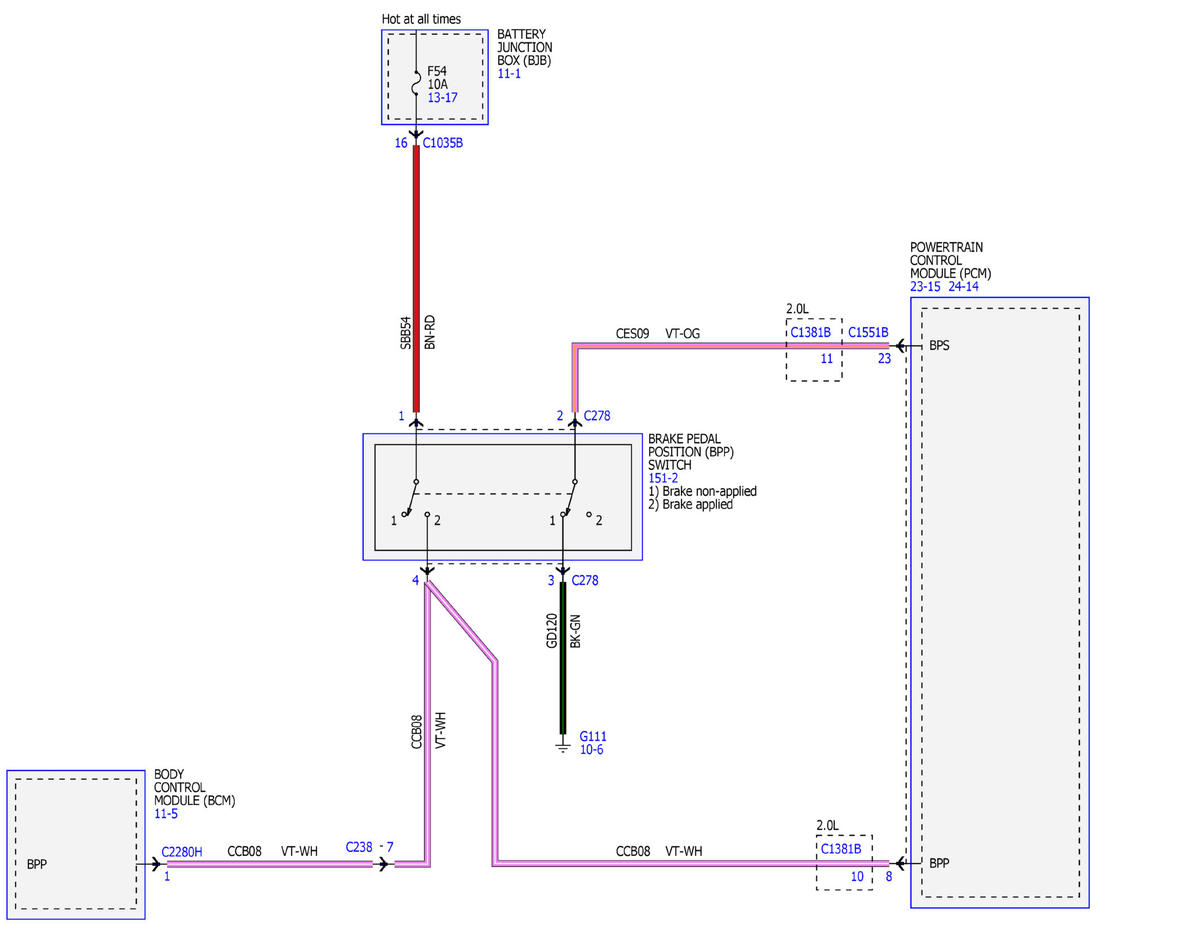

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (2 Of 8)
GFDWR149916Courtesy of FORD MOTOR COMPANY

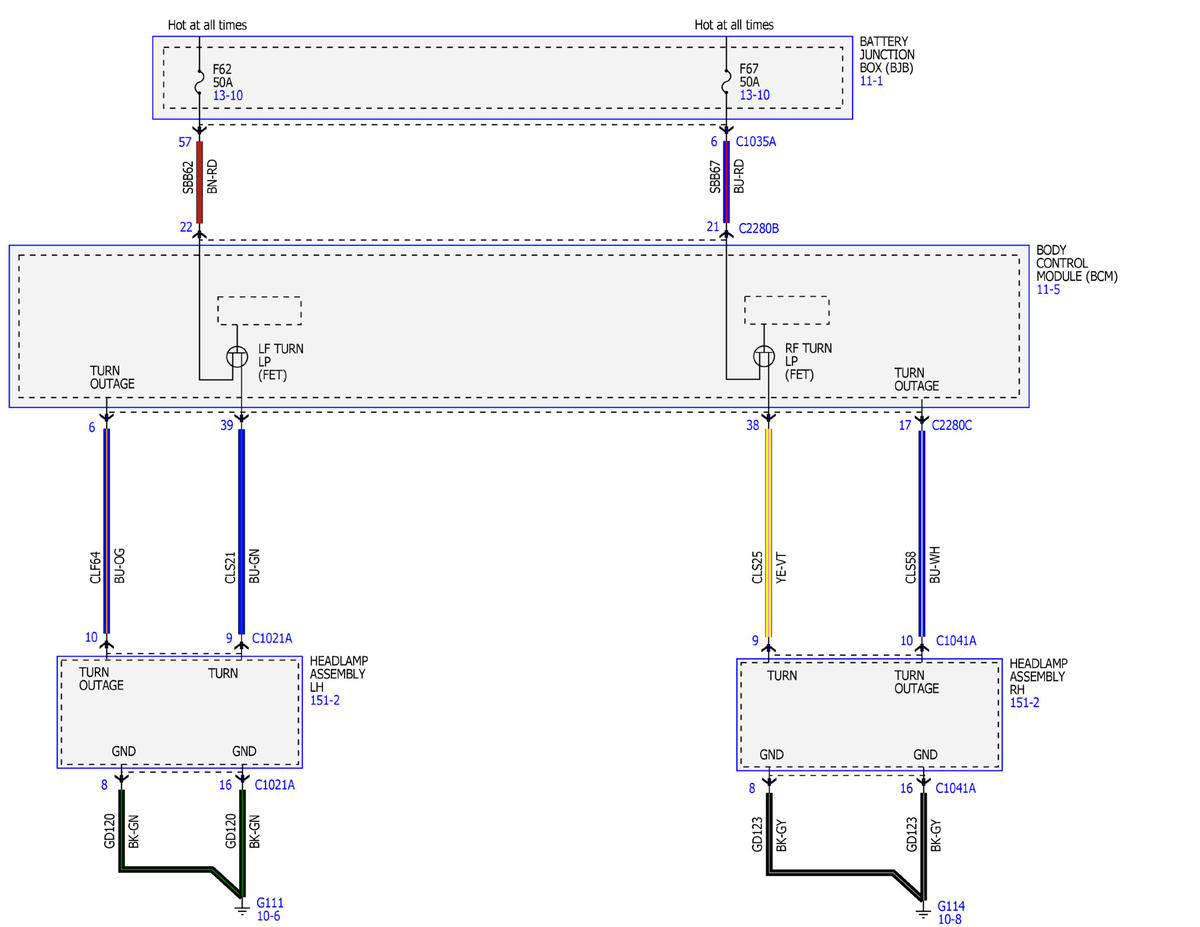

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (3 Of 8)
GFDWR149917Courtesy of FORD MOTOR COMPANY

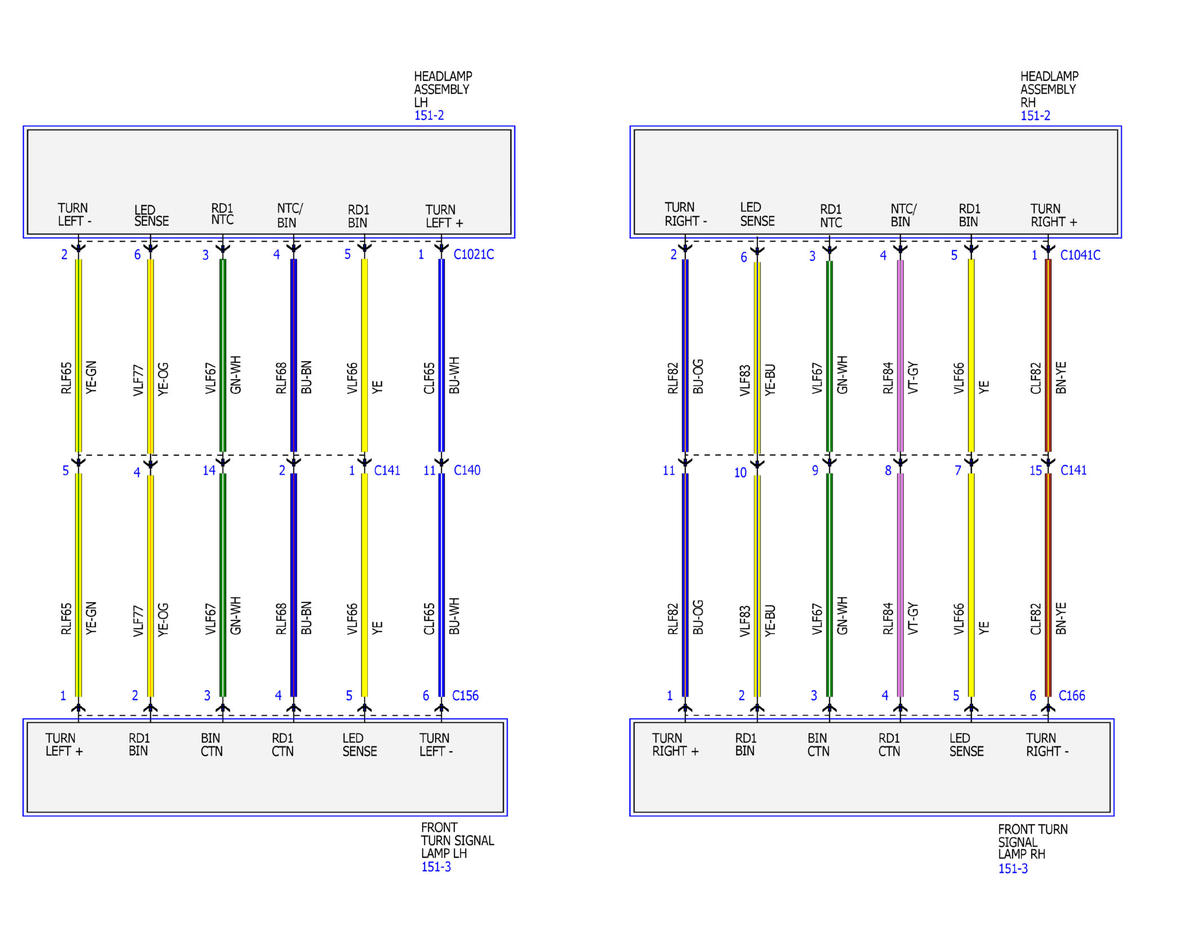

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (4 Of 8)
GFDWR149918Courtesy of FORD MOTOR COMPANY

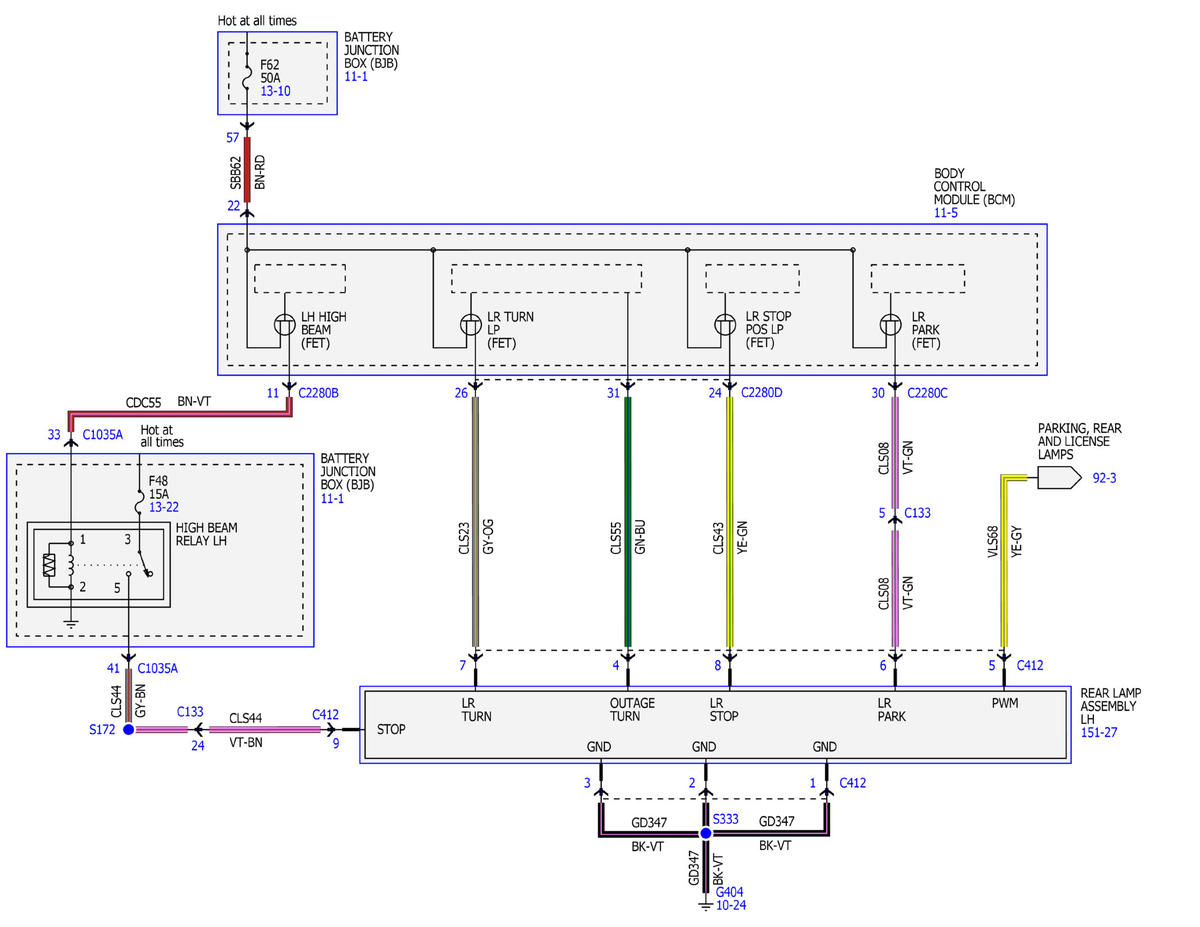

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (5 Of 8)
GFDWR149919Courtesy of FORD MOTOR COMPANY

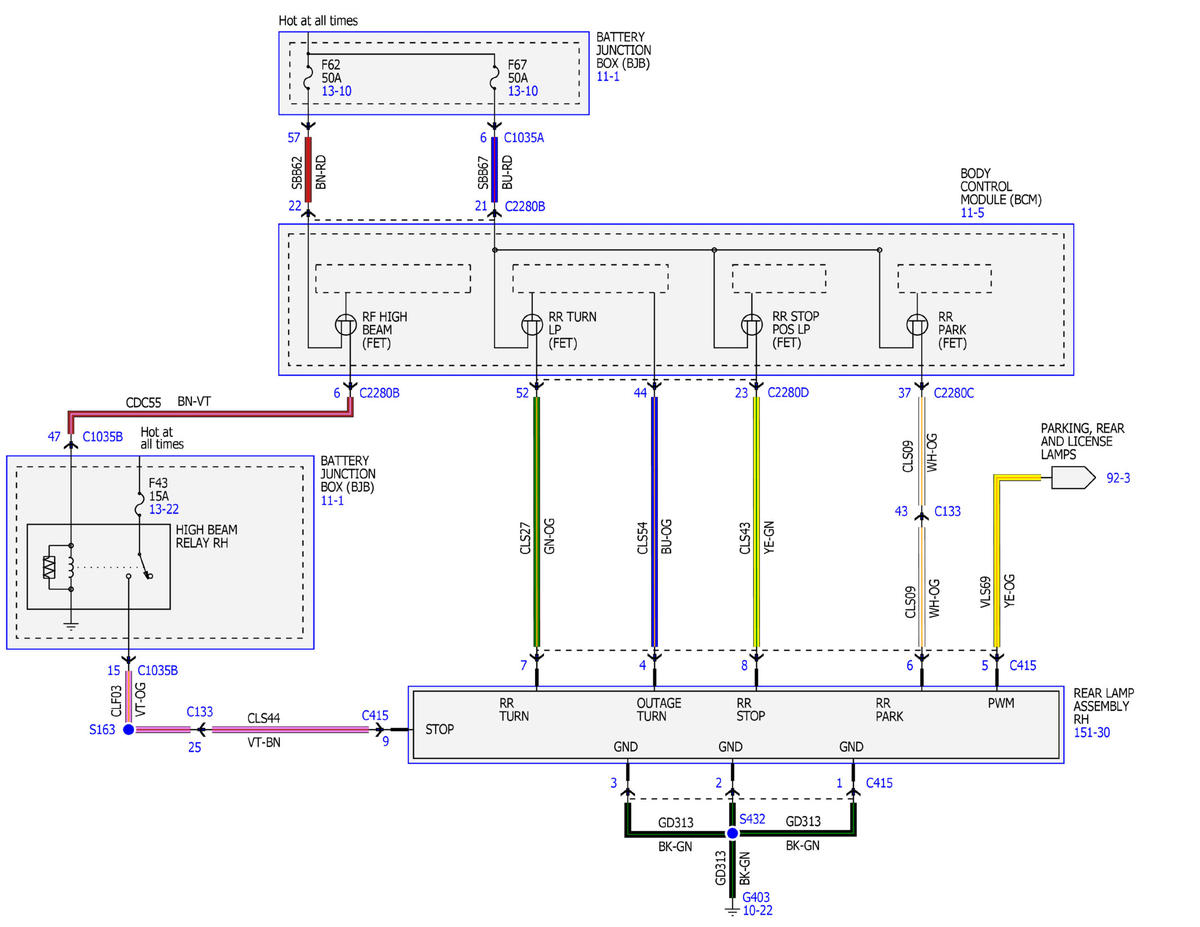

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (6 Of 8)
GFDWR149920Courtesy of FORD MOTOR COMPANY

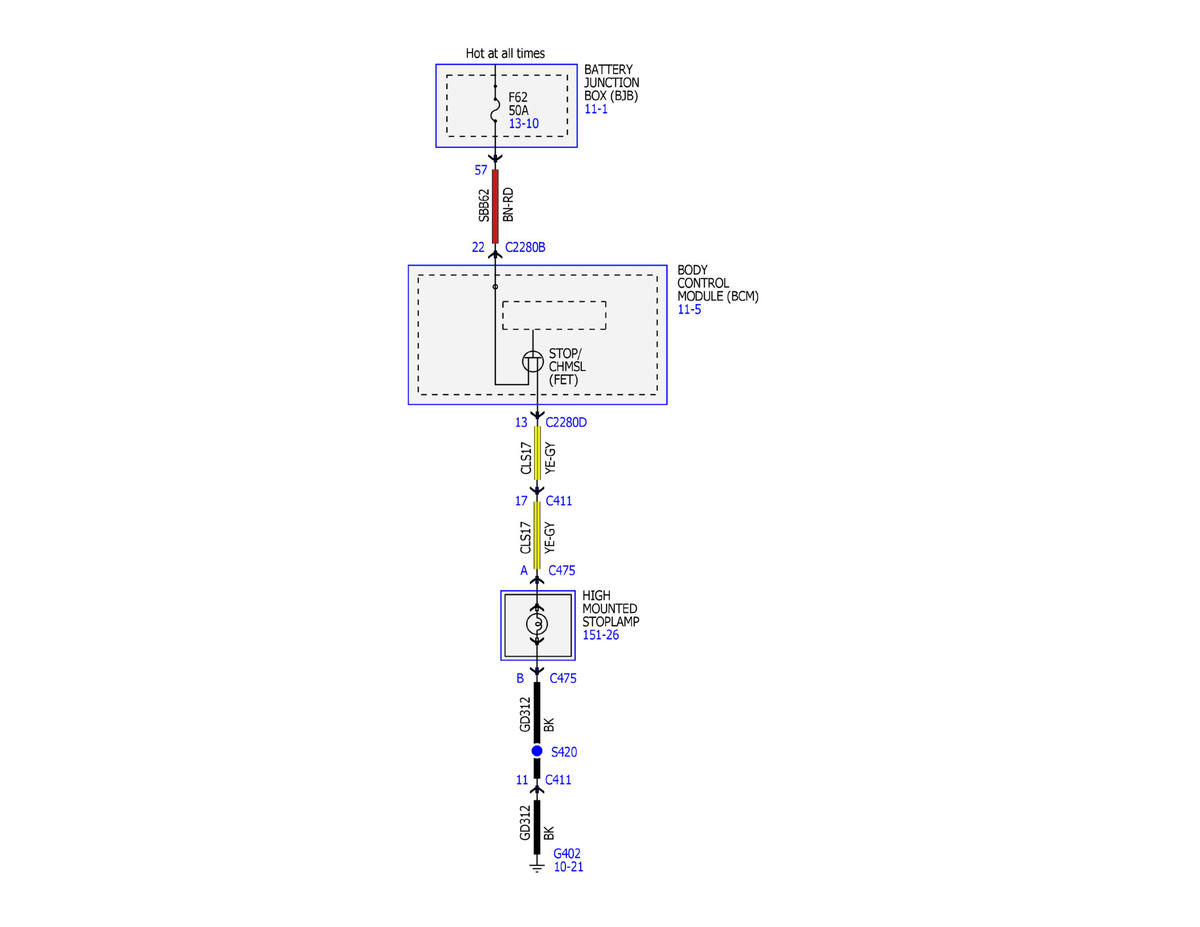

Fig 7: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (7 Of 8)
GFDWR149921Courtesy of FORD MOTOR COMPANY

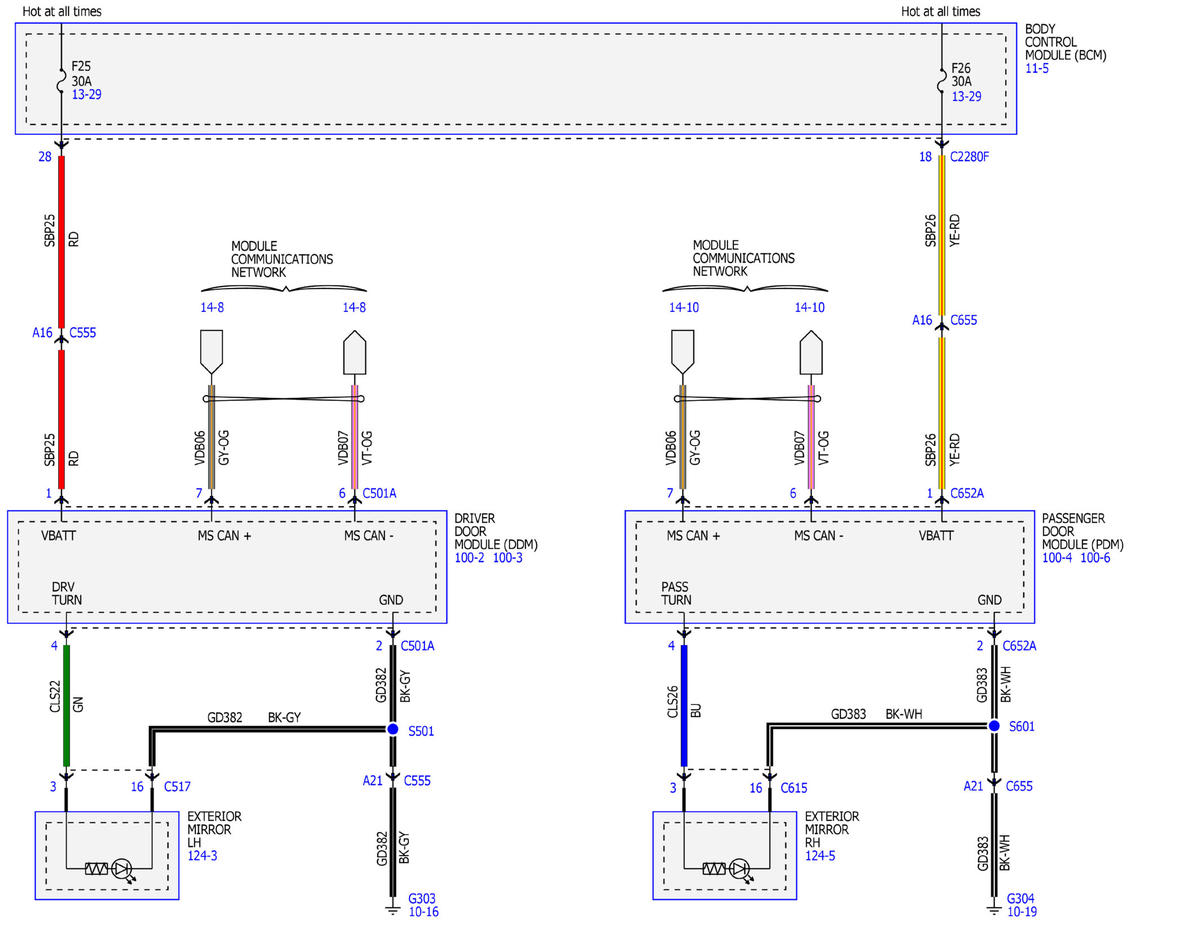

Fig 8: Turn Signal/Stop/Hazard Lamps Wiring Diagrams (8 Of 8)
GFDWR149922Courtesy of FORD MOTOR COMPANY
