Remote Keyless Entry And Alarm

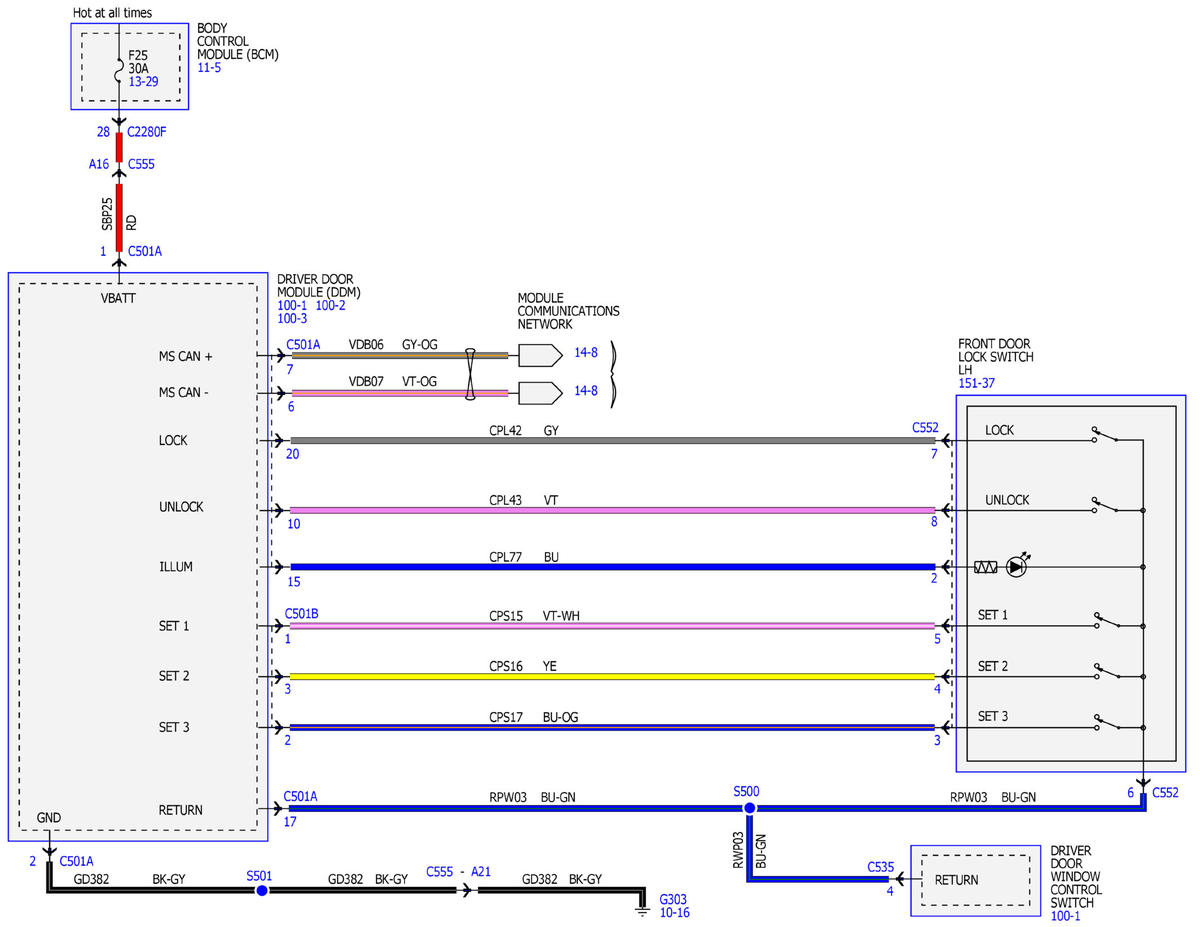

Fig 1: Remote Keyless Entry and Alarm Wiring Diagrams (1 Of 20)

GFDWR149861

Courtesy of FORD MOTOR COMPANY

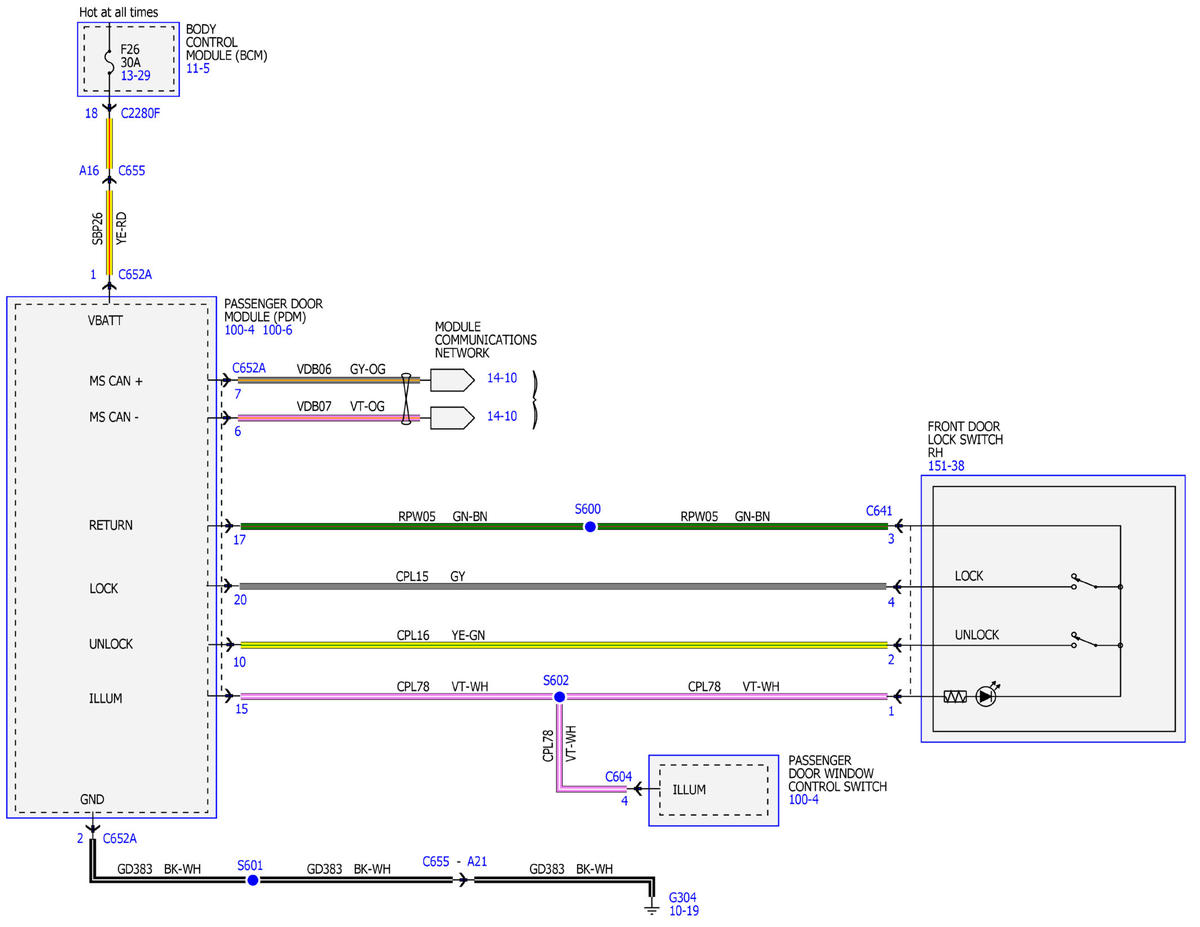

Fig 2: Remote Keyless Entry and Alarm Wiring Diagrams (2 Of 20)

GFDWR149872

Courtesy of FORD MOTOR COMPANY

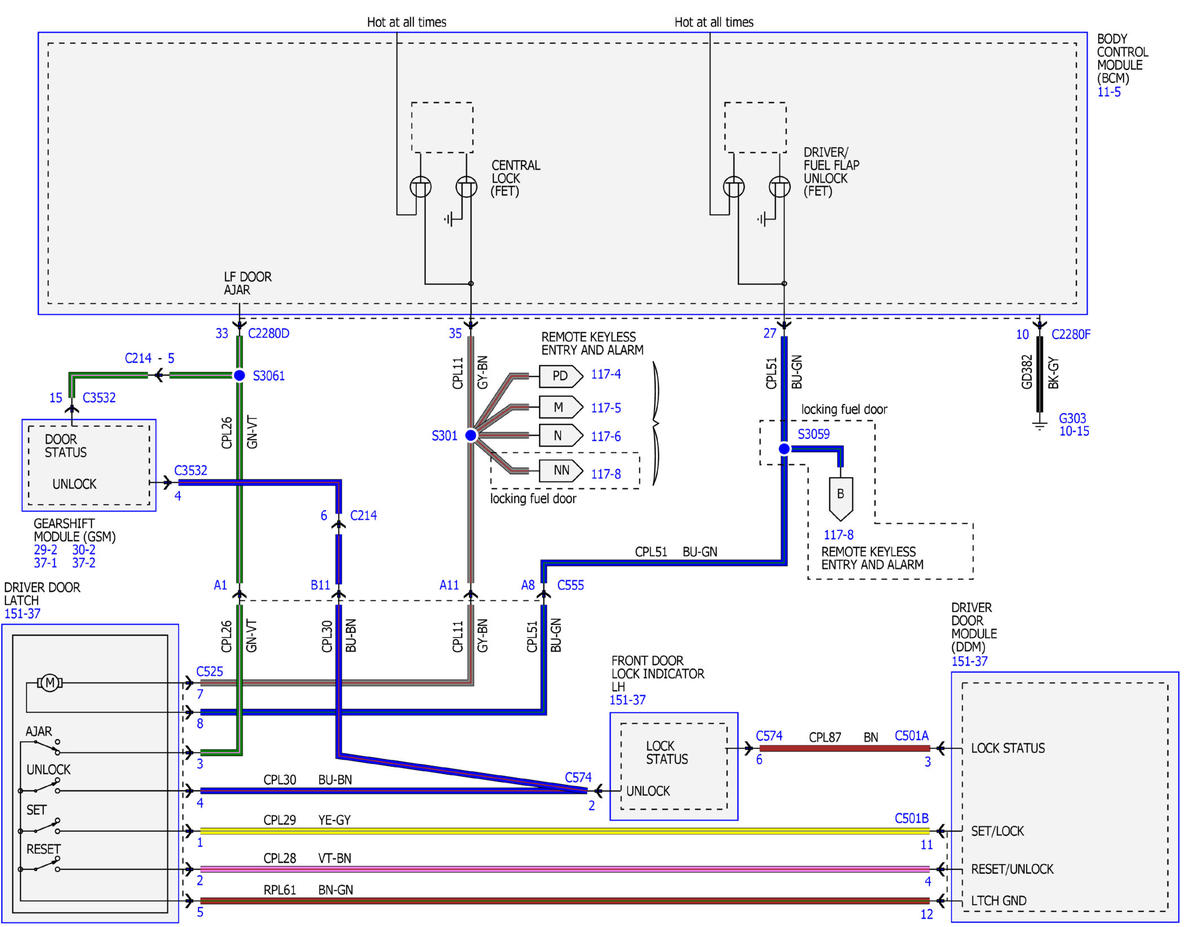

Fig 3: Remote Keyless Entry and Alarm Wiring Diagrams (3 Of 20)

GFDWR149874

Courtesy of FORD MOTOR COMPANY

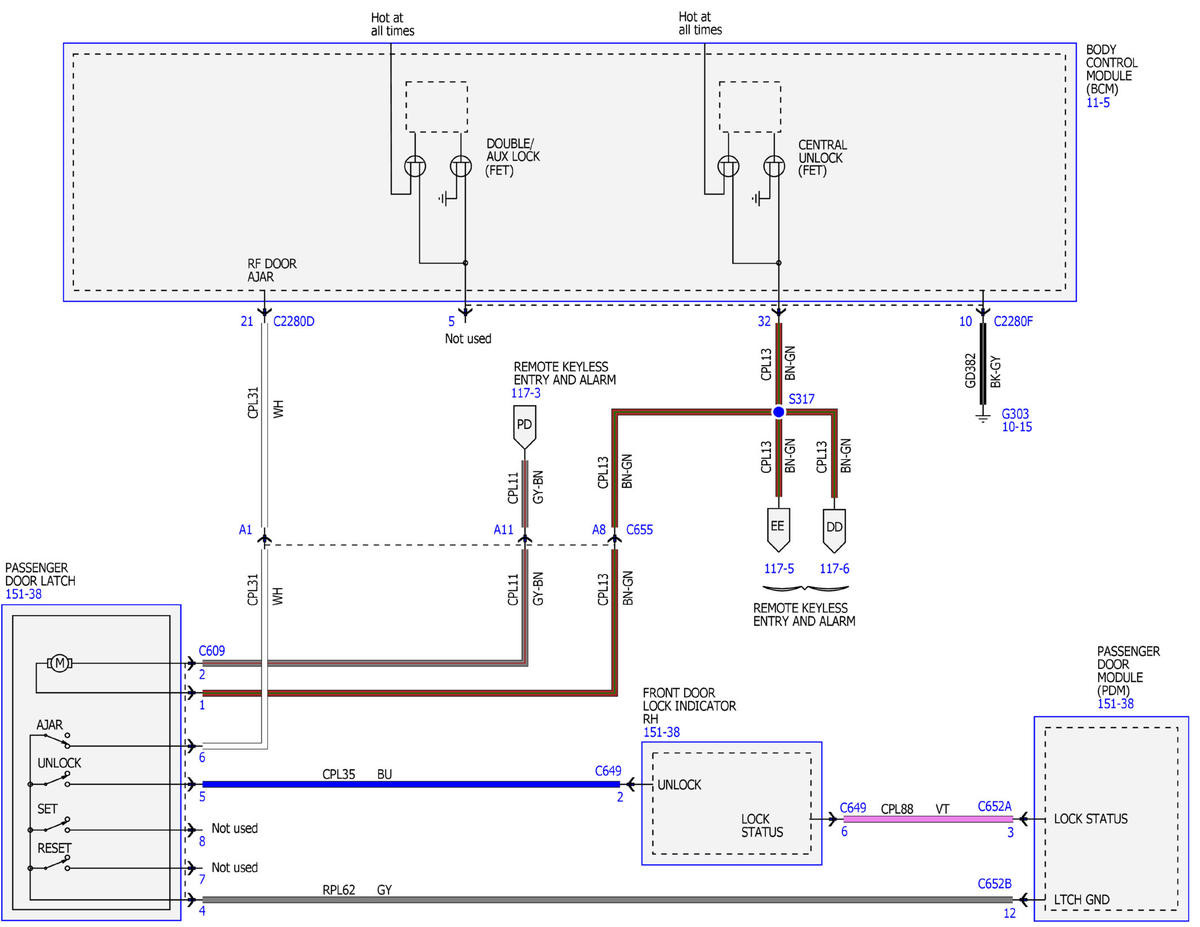

Fig 4: Remote Keyless Entry and Alarm Wiring Diagrams (4 Of 20)

GFDWR149875

Courtesy of FORD MOTOR COMPANY

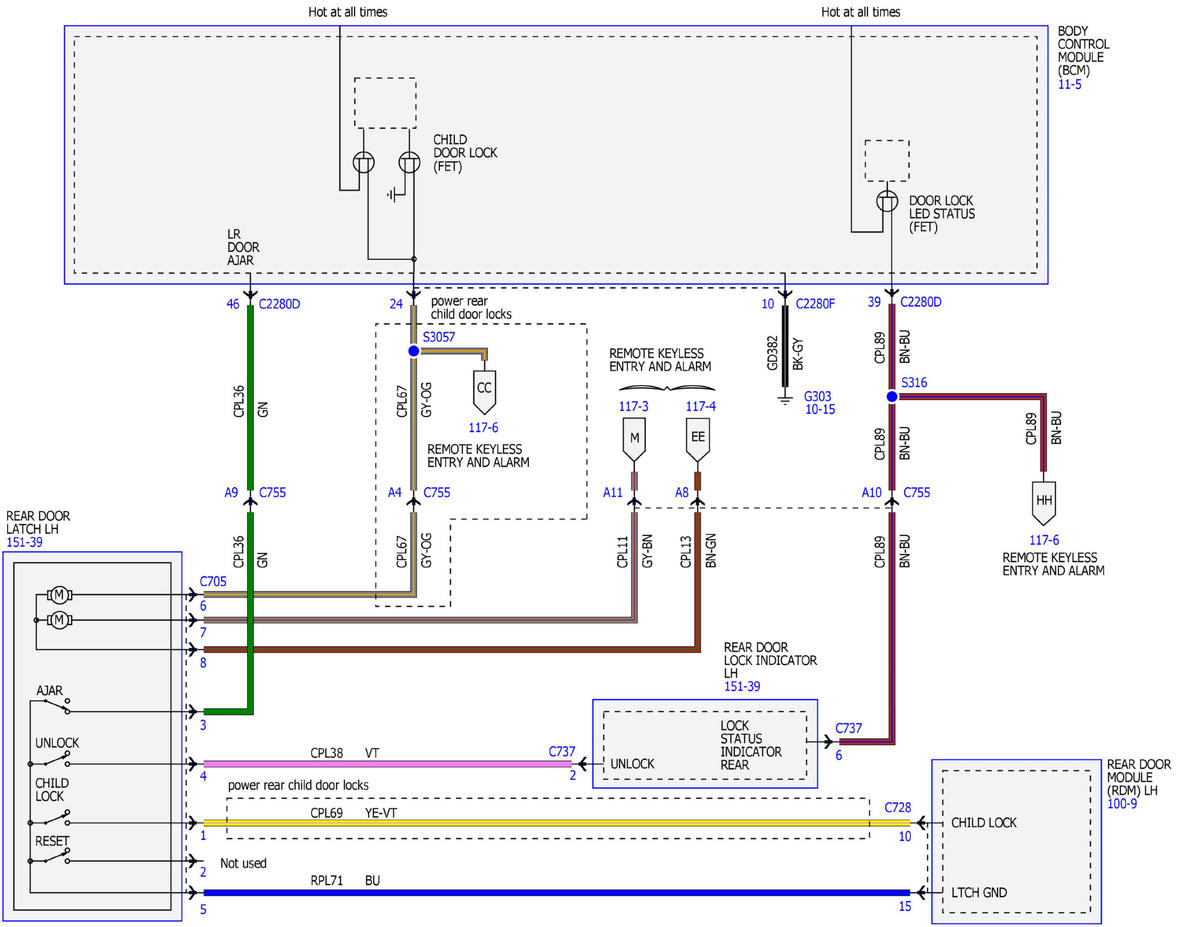

Fig 5: Remote Keyless Entry and Alarm Wiring Diagrams (5 Of 20)

GFDWR149876

Courtesy of FORD MOTOR COMPANY

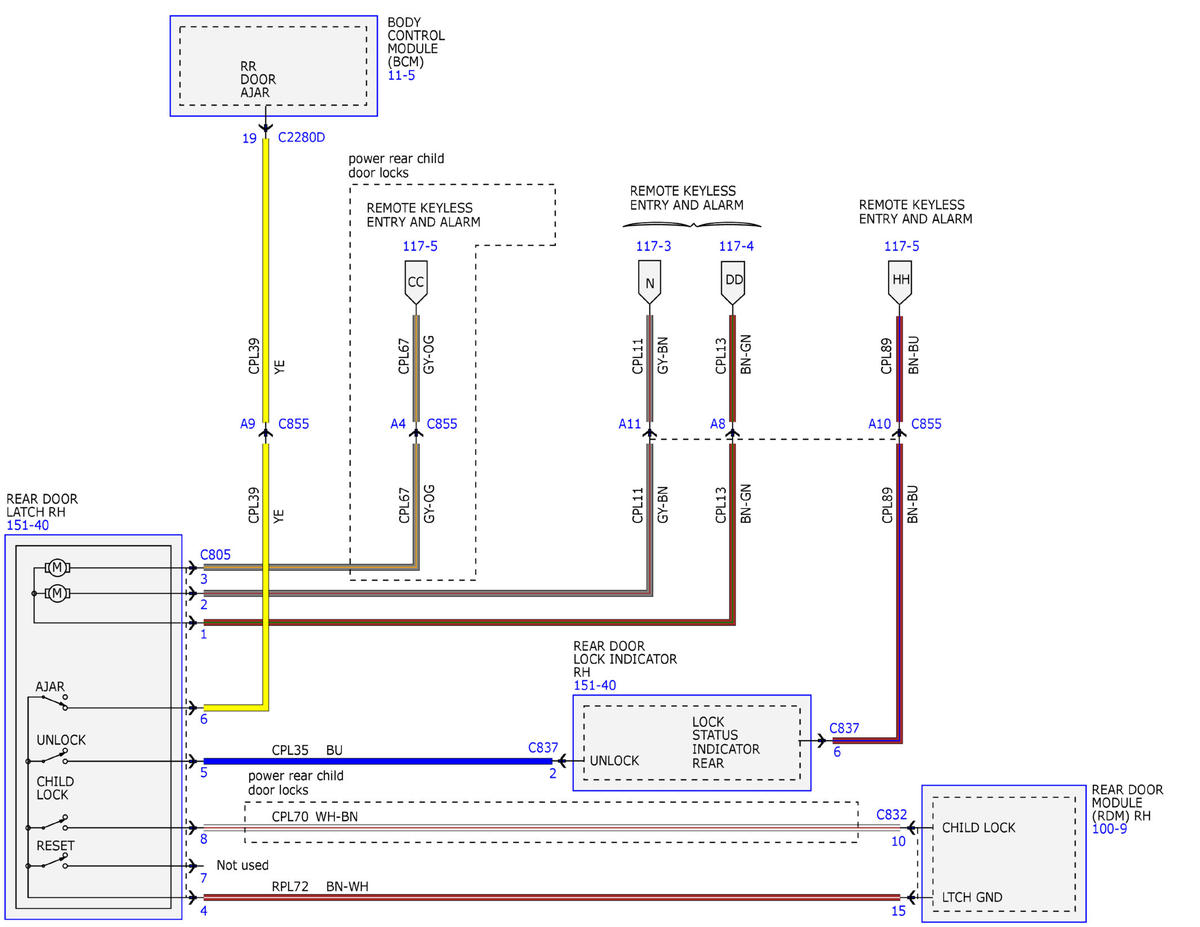

Fig 6: Remote Keyless Entry and Alarm Wiring Diagrams (6 Of 20)

GFDWR149877

Courtesy of FORD MOTOR COMPANY

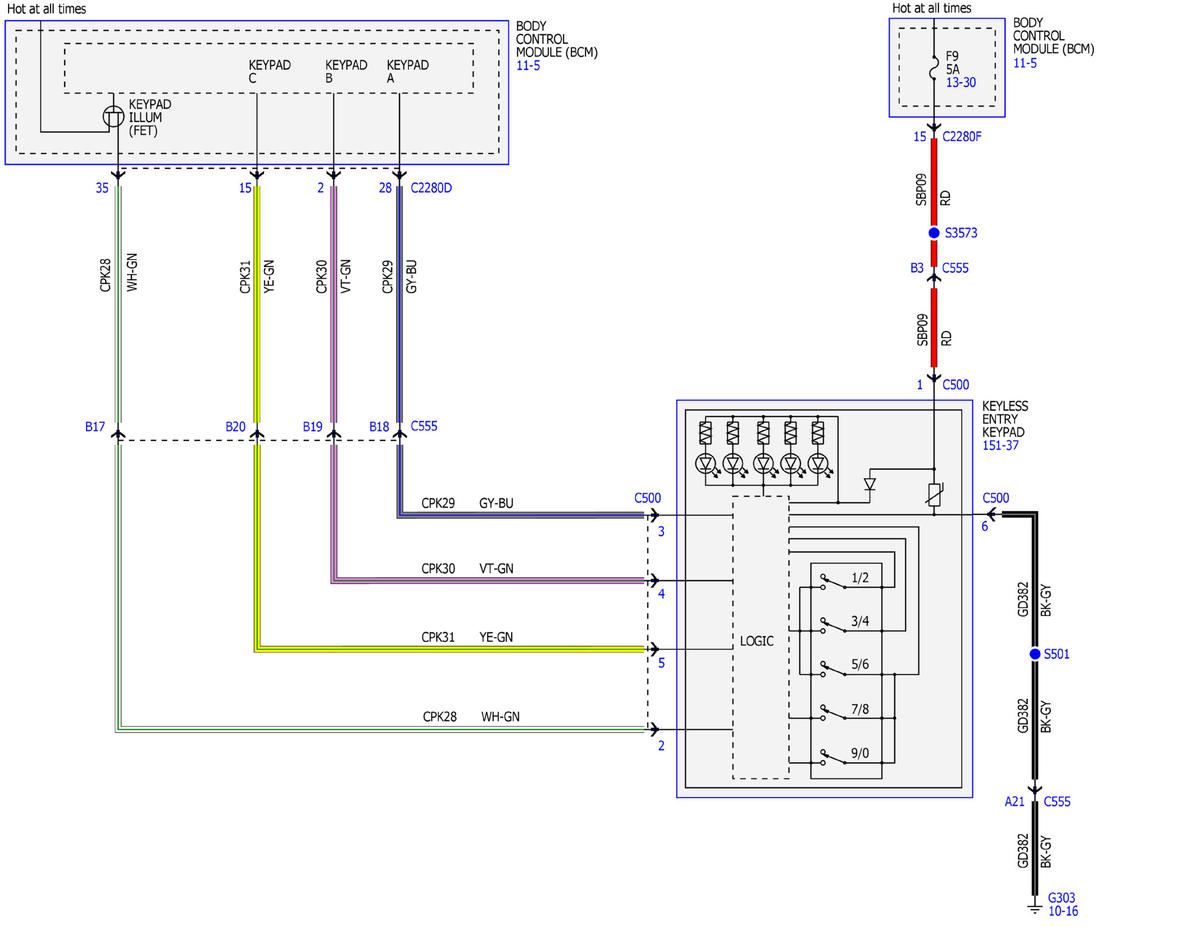

Fig 7: Remote Keyless Entry and Alarm Wiring Diagrams (7 Of 20)

GFDWR149878

Courtesy of FORD MOTOR COMPANY

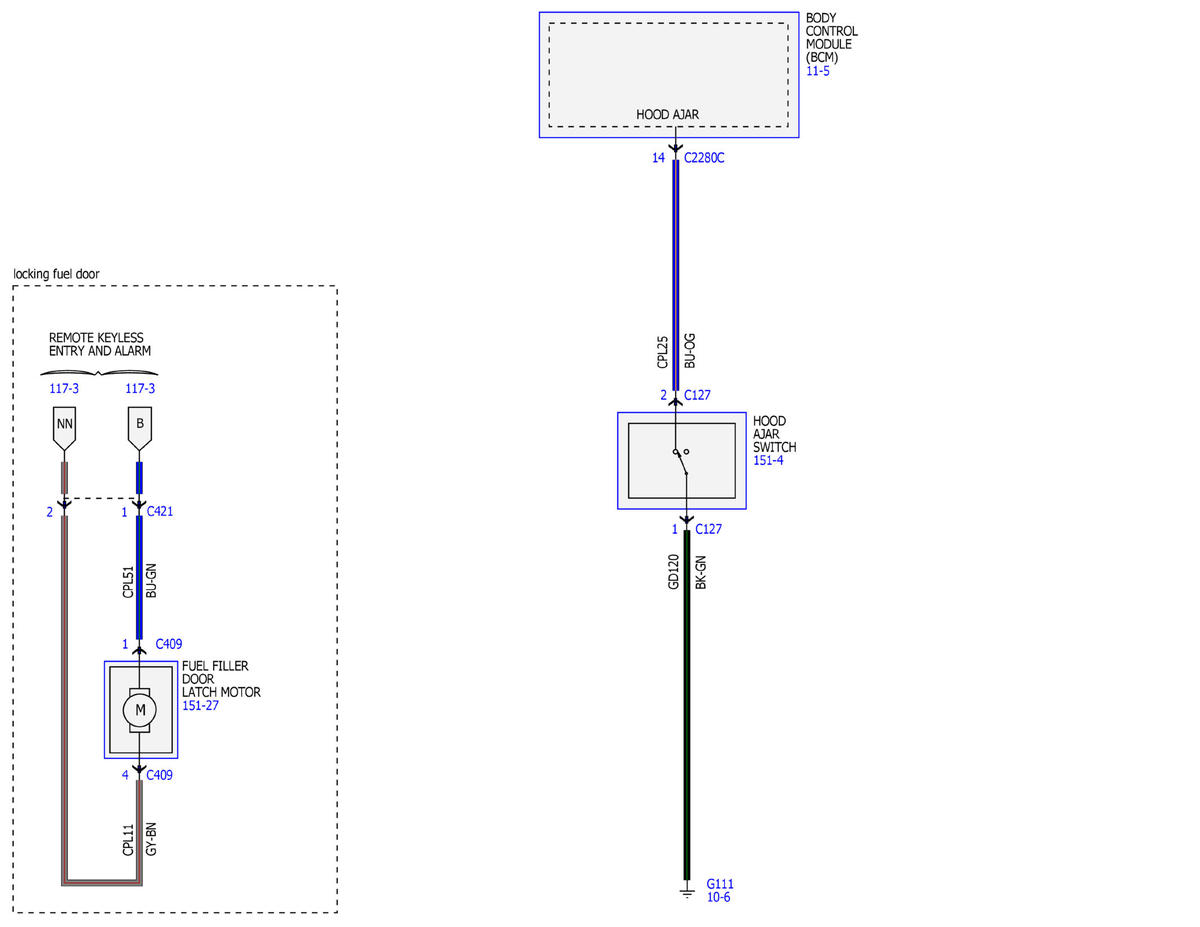

Fig 8: Remote Keyless Entry and Alarm Wiring Diagrams (8 Of 20)

GFDWR149879

Courtesy of FORD MOTOR COMPANY

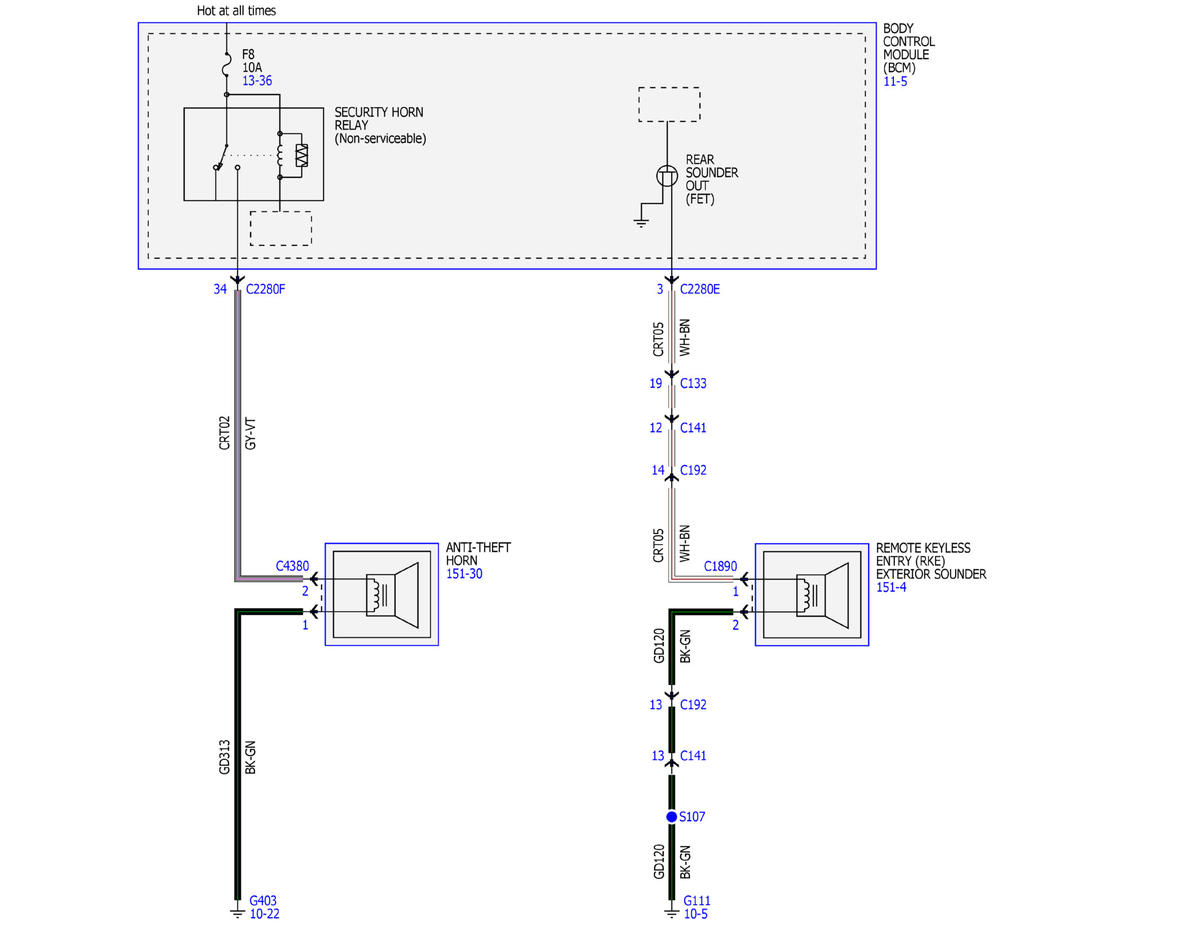

Fig 9: Remote Keyless Entry and Alarm Wiring Diagrams (9 Of 20)

GFDWR149880

Courtesy of FORD MOTOR COMPANY

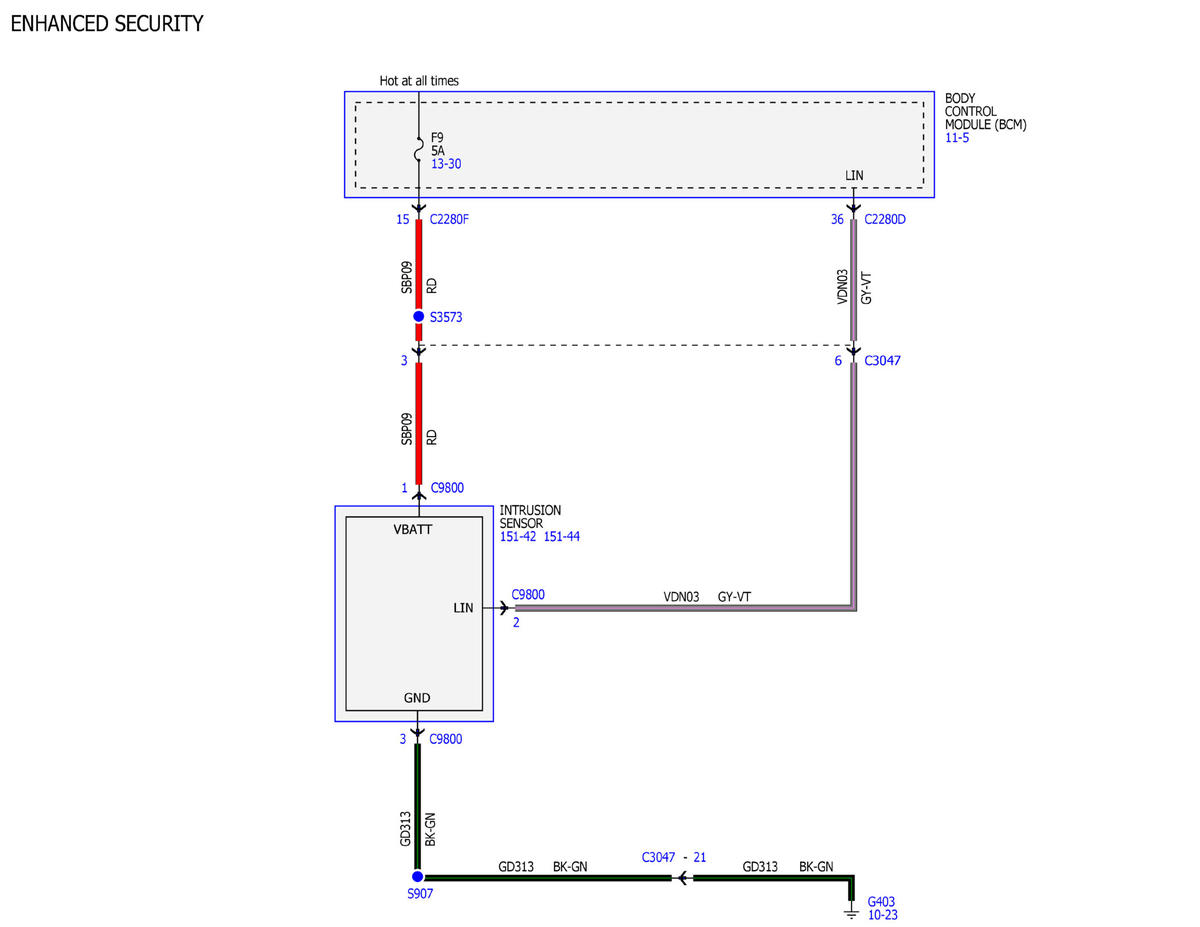

Fig 10: Remote Keyless Entry and Alarm Wiring Diagrams (10 Of 20)

GFDWR149862

Courtesy of FORD MOTOR COMPANY

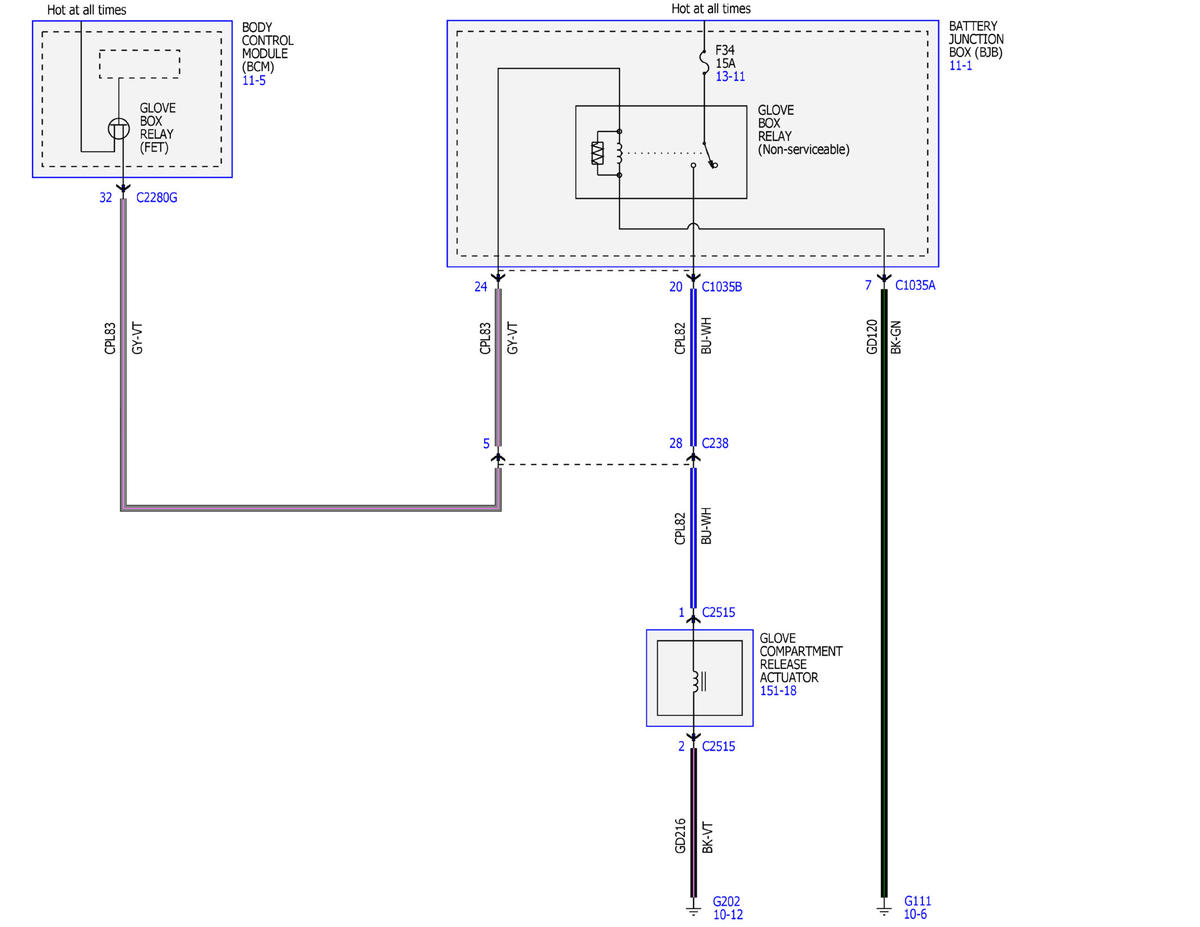

Fig 11: Remote Keyless Entry and Alarm Wiring Diagrams (11 Of 20)

GFDWR149863

Courtesy of FORD MOTOR COMPANY

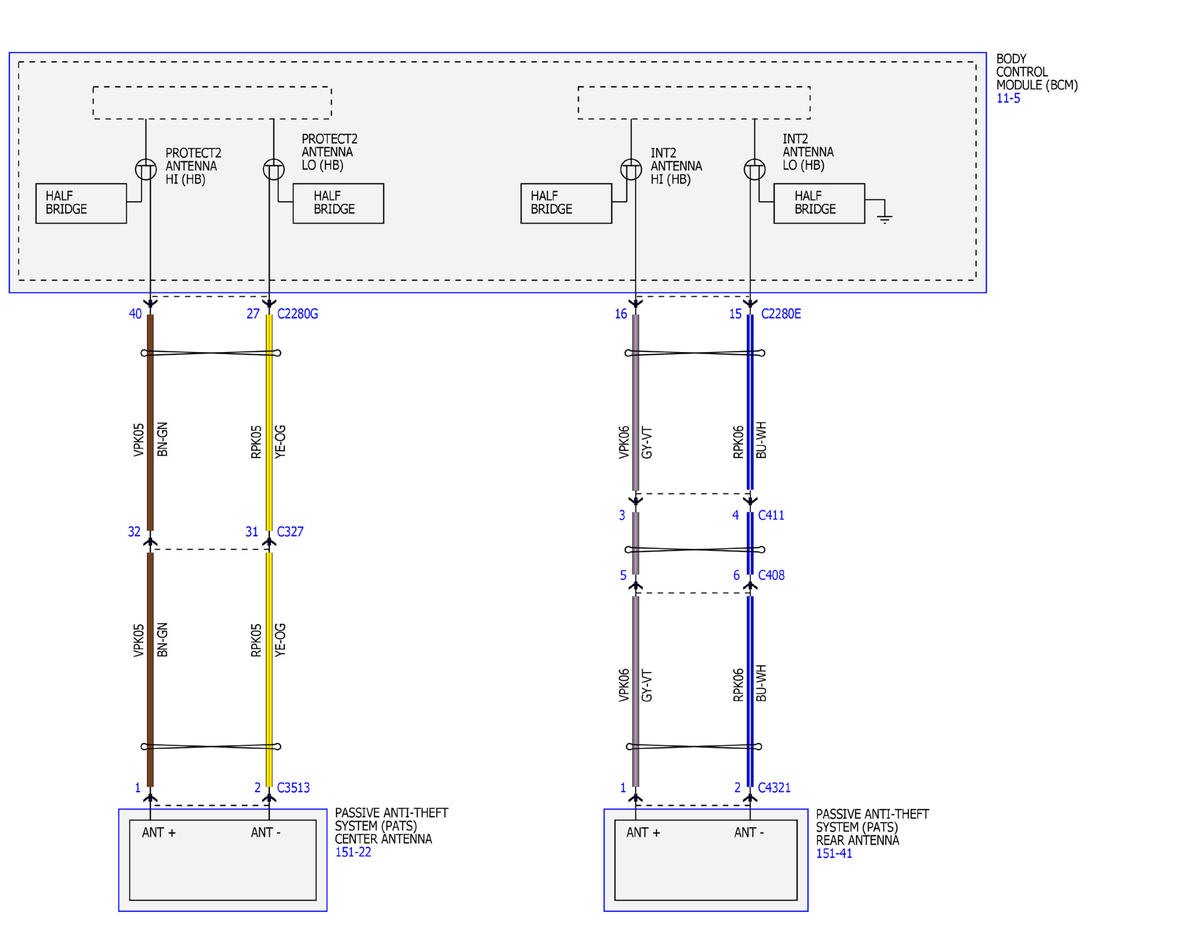

Fig 12: Remote Keyless Entry and Alarm Wiring Diagrams (12 Of 20)

GFDWR149864

Courtesy of FORD MOTOR COMPANY

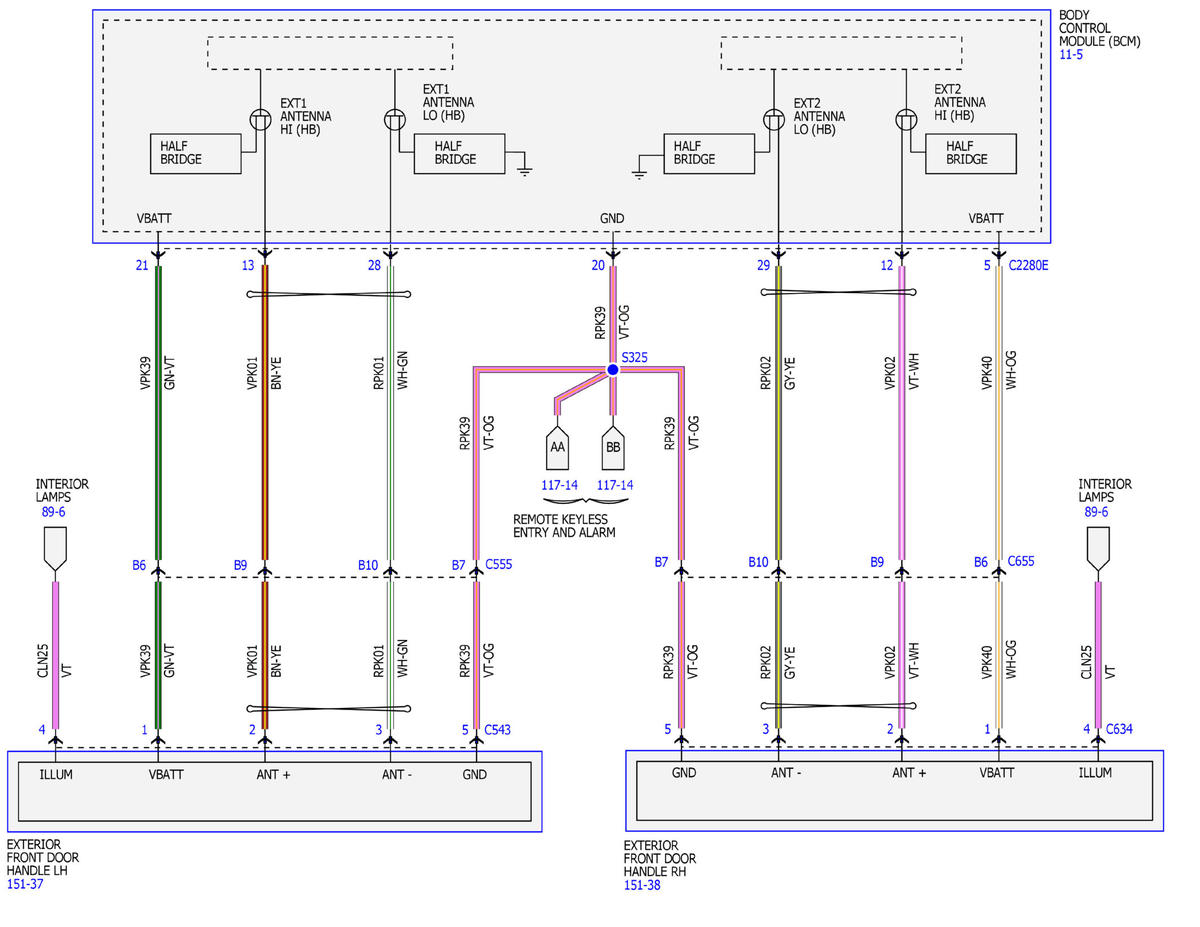

Fig 13: Remote Keyless Entry and Alarm Wiring Diagrams (13 Of 20)

GFDWR149865

Courtesy of FORD MOTOR COMPANY

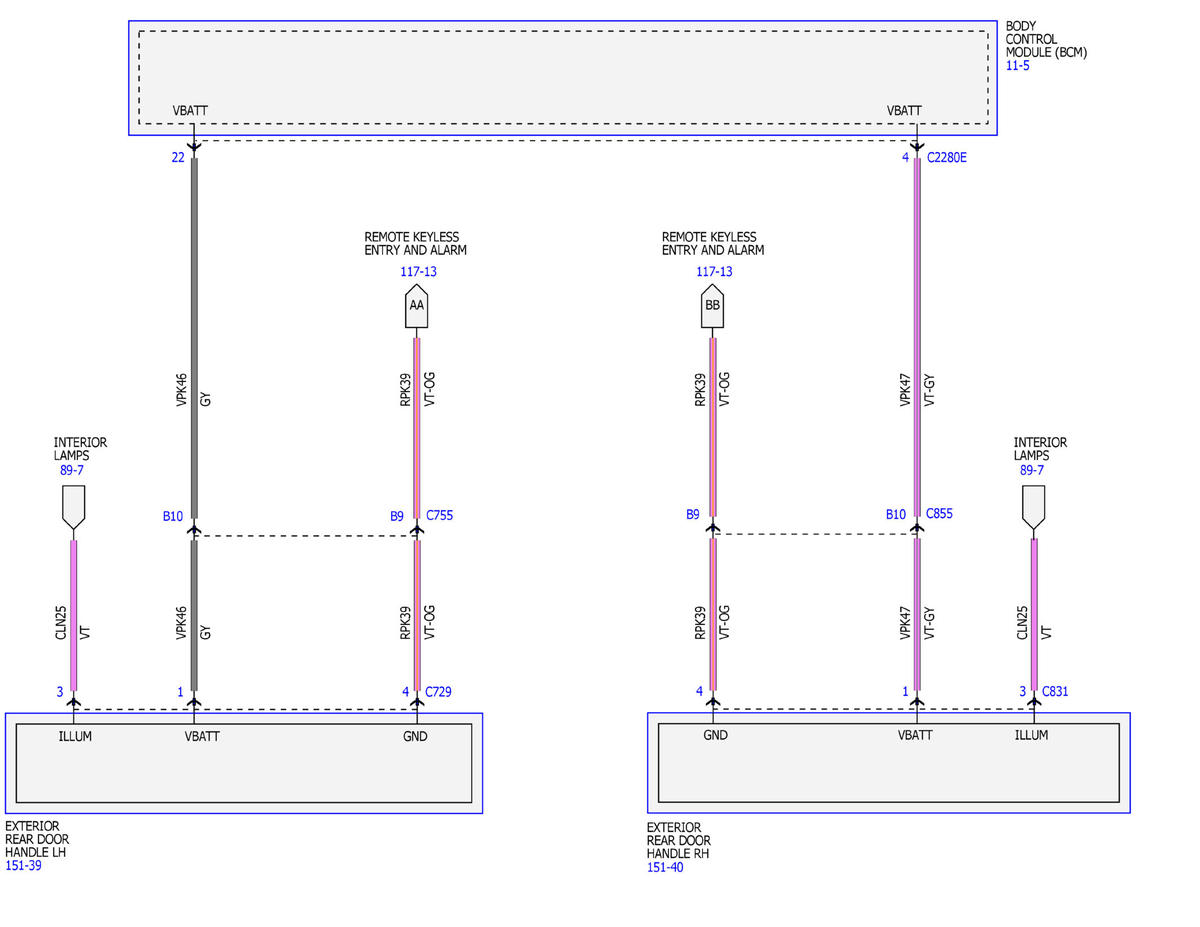

Fig 14: Remote Keyless Entry and Alarm Wiring Diagrams (14 Of 20)

GFDWR149866

Courtesy of FORD MOTOR COMPANY

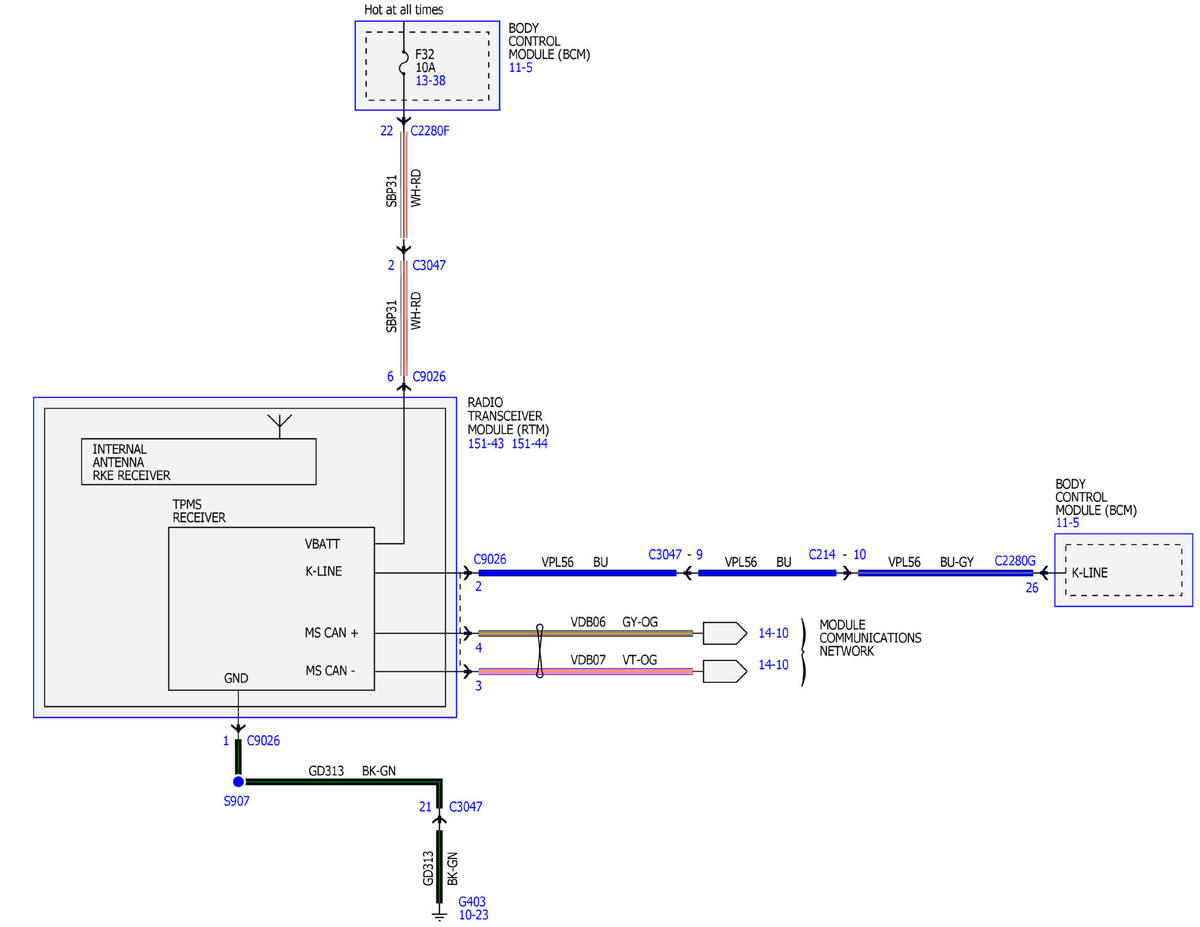

Fig 15: Remote Keyless Entry and Alarm Wiring Diagrams (15 Of 20)

GFDWR149867

Courtesy of FORD MOTOR COMPANY

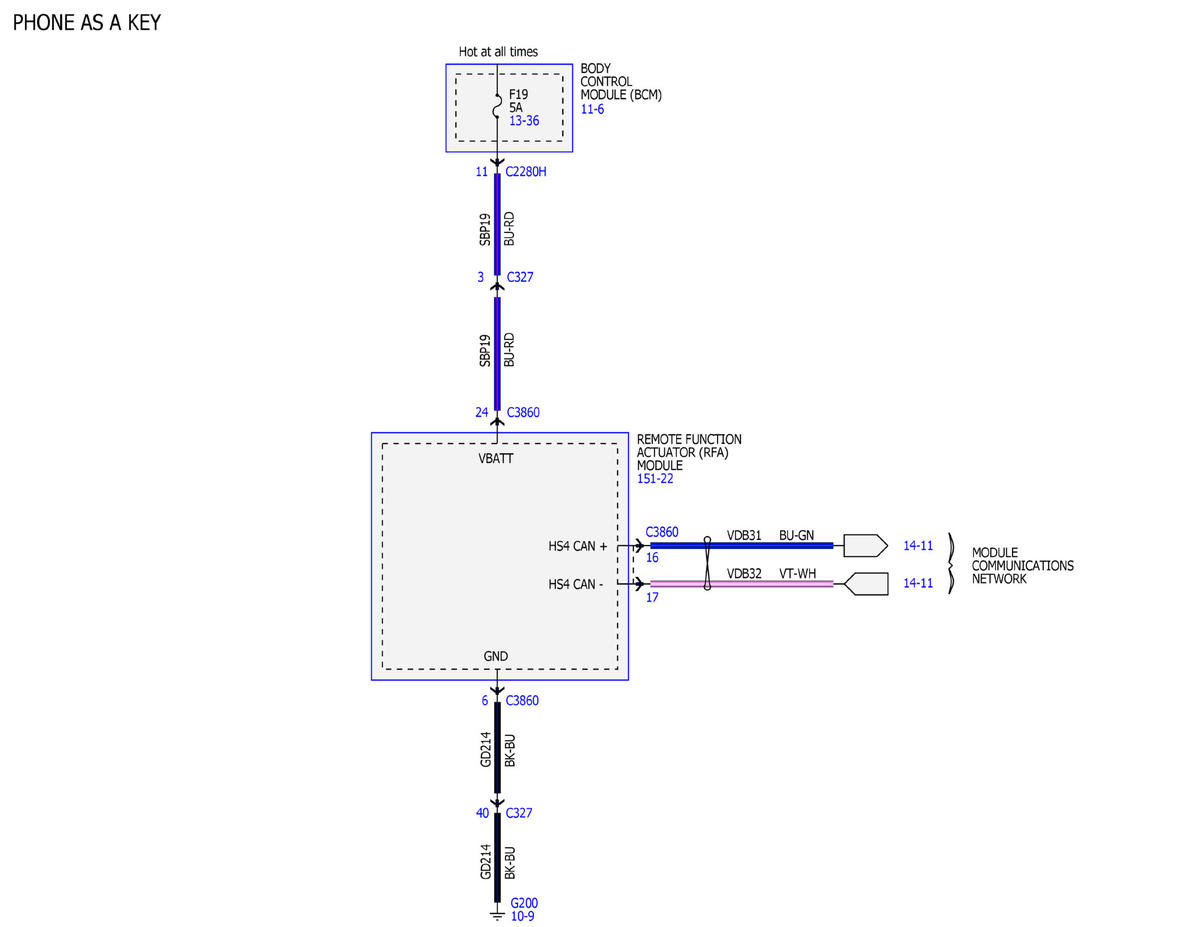

Fig 16: Remote Keyless Entry and Alarm Wiring Diagrams (16 Of 20)

GFDWR149868

Courtesy of FORD MOTOR COMPANY

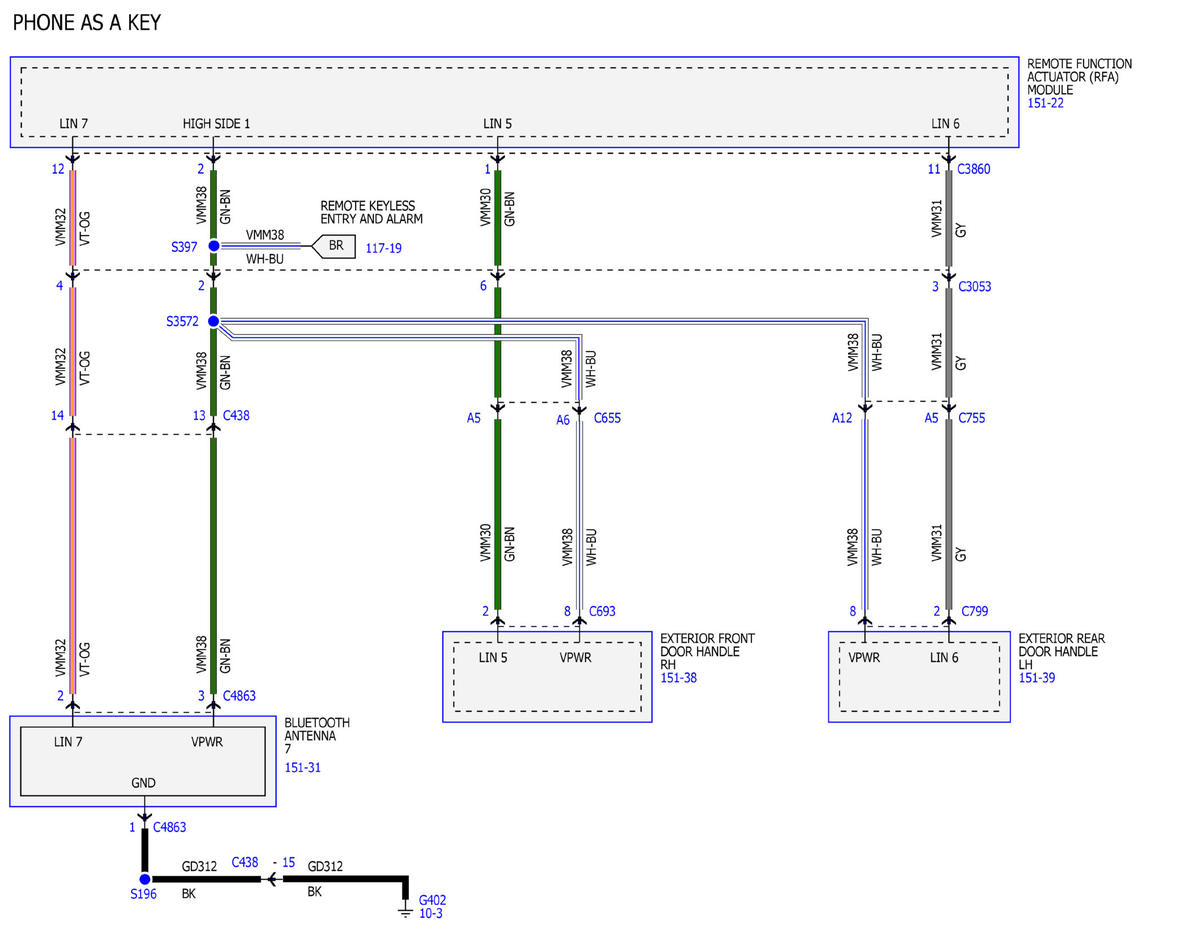

Fig 17: Remote Keyless Entry and Alarm Wiring Diagrams (17 Of 20)

GFDWR149869

Courtesy of FORD MOTOR COMPANY

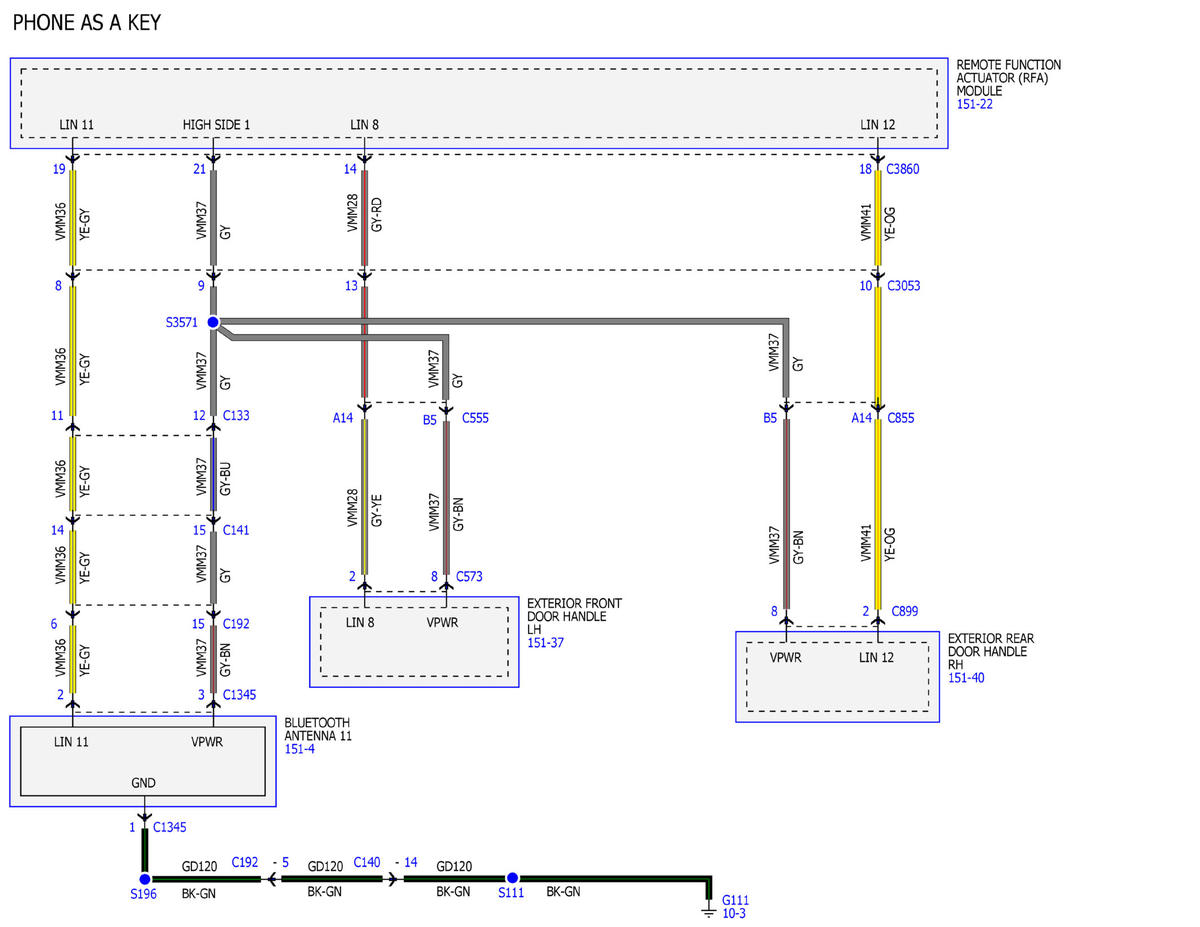

Fig 18: Remote Keyless Entry and Alarm Wiring Diagrams (18 Of 20)

GFDWR149870

Courtesy of FORD MOTOR COMPANY

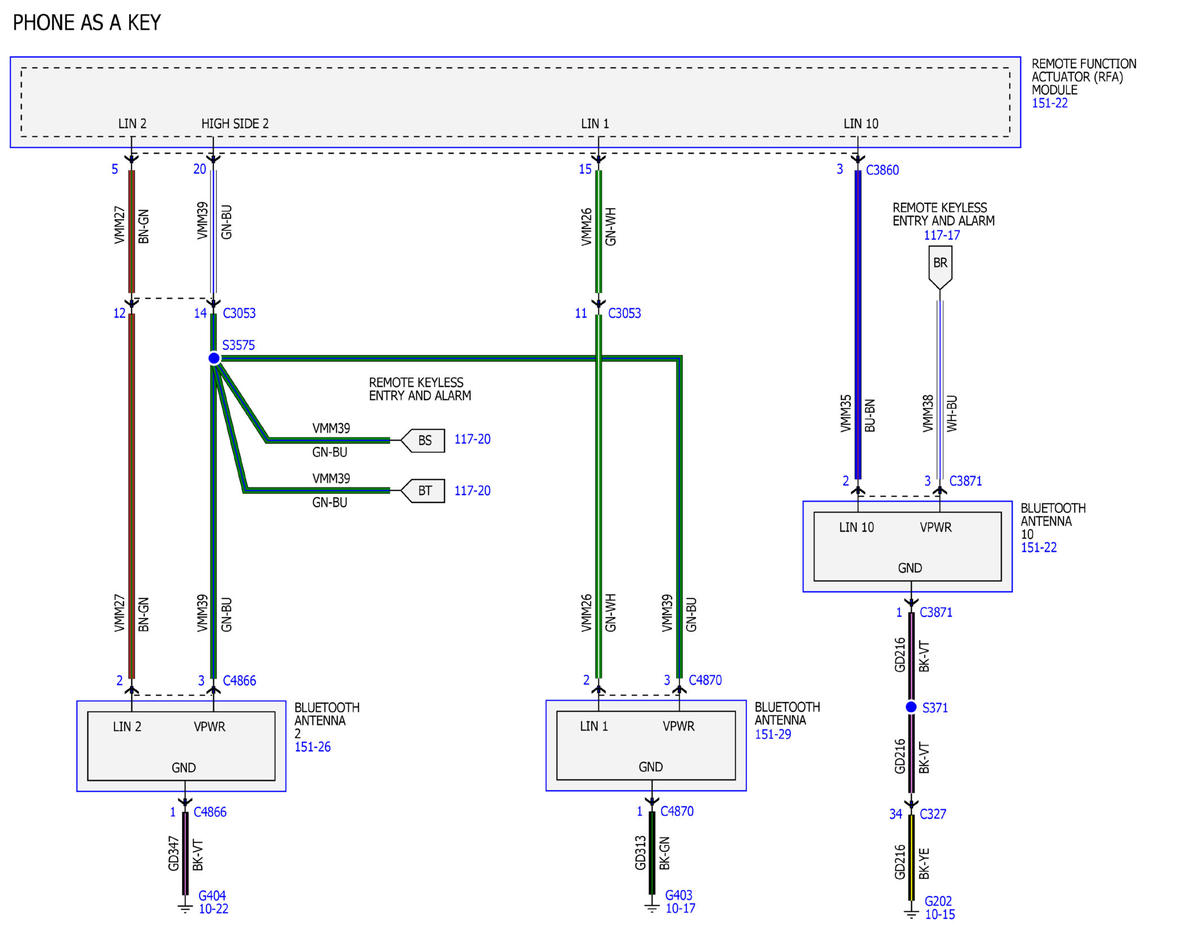

Fig 19: Remote Keyless Entry and Alarm Wiring Diagrams (19 Of 20)

GFDWR149871

Courtesy of FORD MOTOR COMPANY

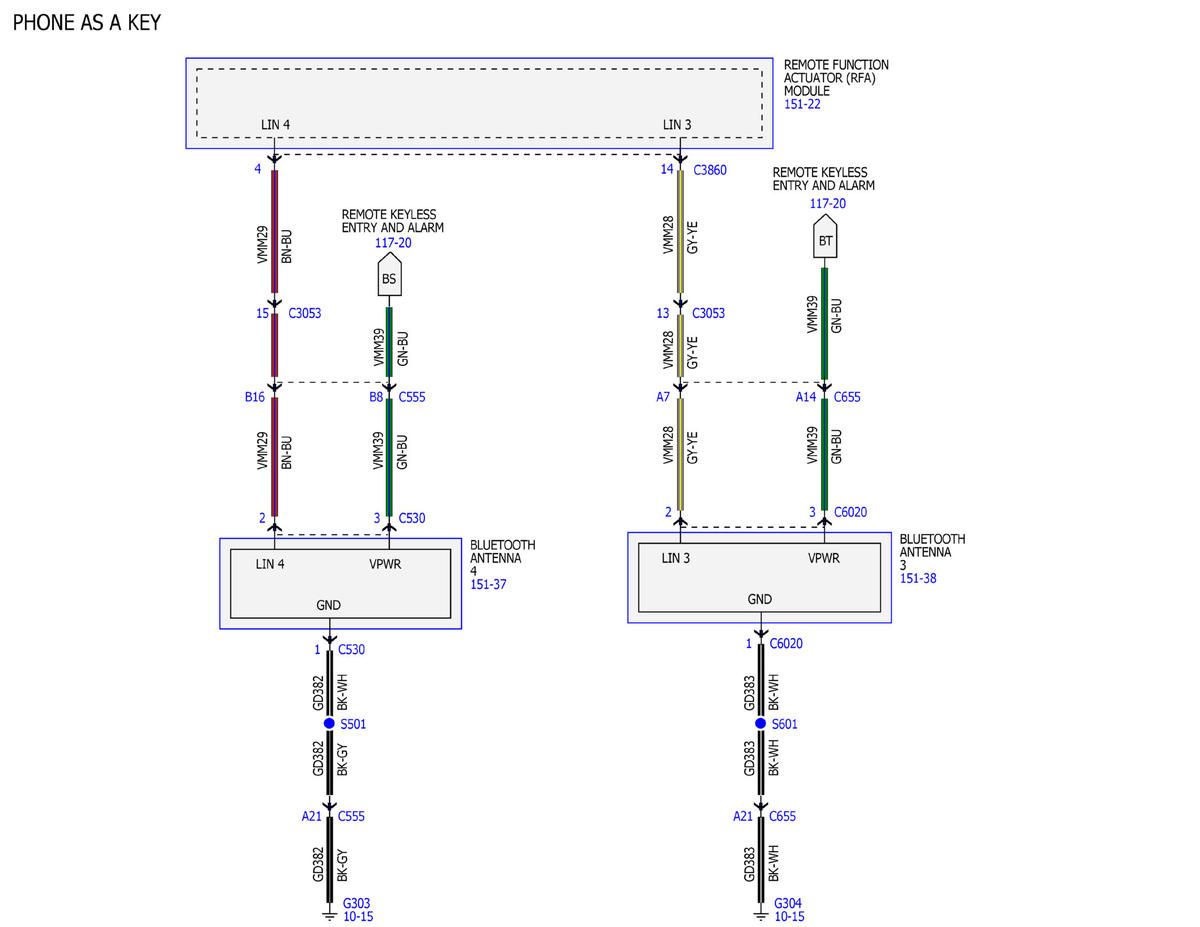

Fig 20: Remote Keyless Entry and Alarm Wiring Diagrams (20 Of 20)

GFDWR149873

Courtesy of FORD MOTOR COMPANY
