Passive Anti-Theft System
Passive Anti-Theft System

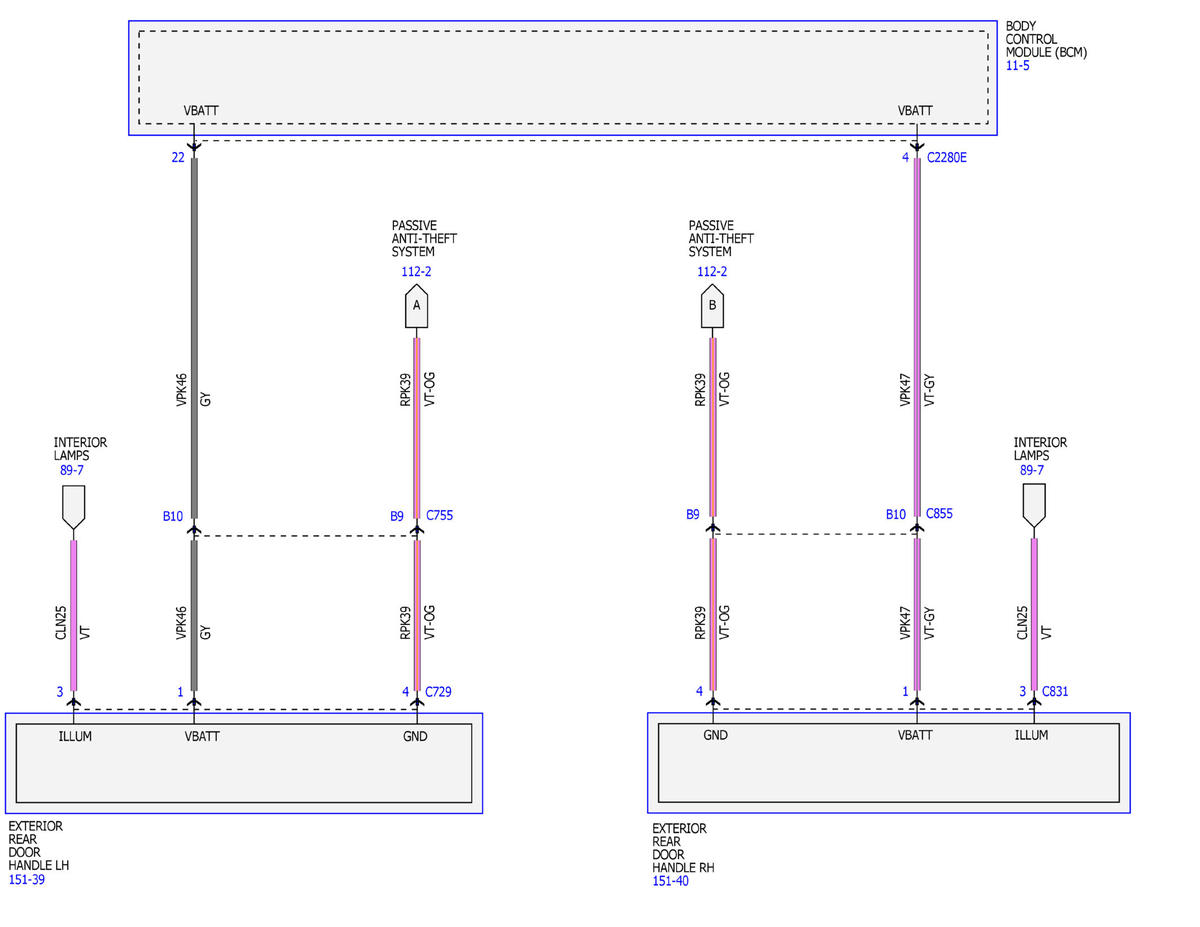

Fig 1: Passive Anti-Theft System Wiring Diagrams (1 Of 3)
Courtesy of FORD MOTOR COMPANY
Fig 2: Passive Anti-Theft System Wiring Diagrams (2 Of 3)
Courtesy of FORD MOTOR COMPANY
Fig 3: Passive Anti-Theft System Wiring Diagrams (3 Of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
