Parking Aid

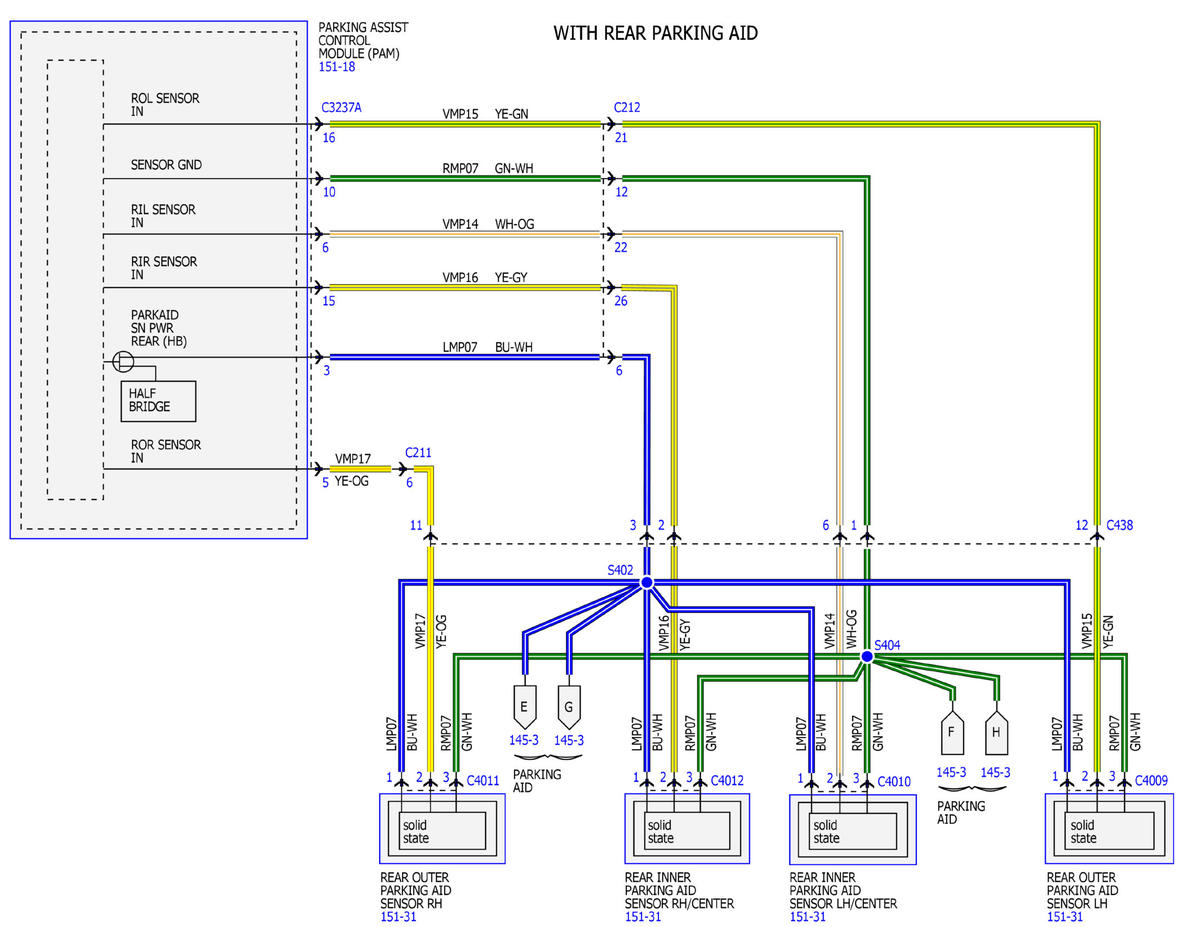

Fig 1: Parking Aid Wiring Diagrams (1 Of 8)

GFDWR149768

Courtesy of FORD MOTOR COMPANY

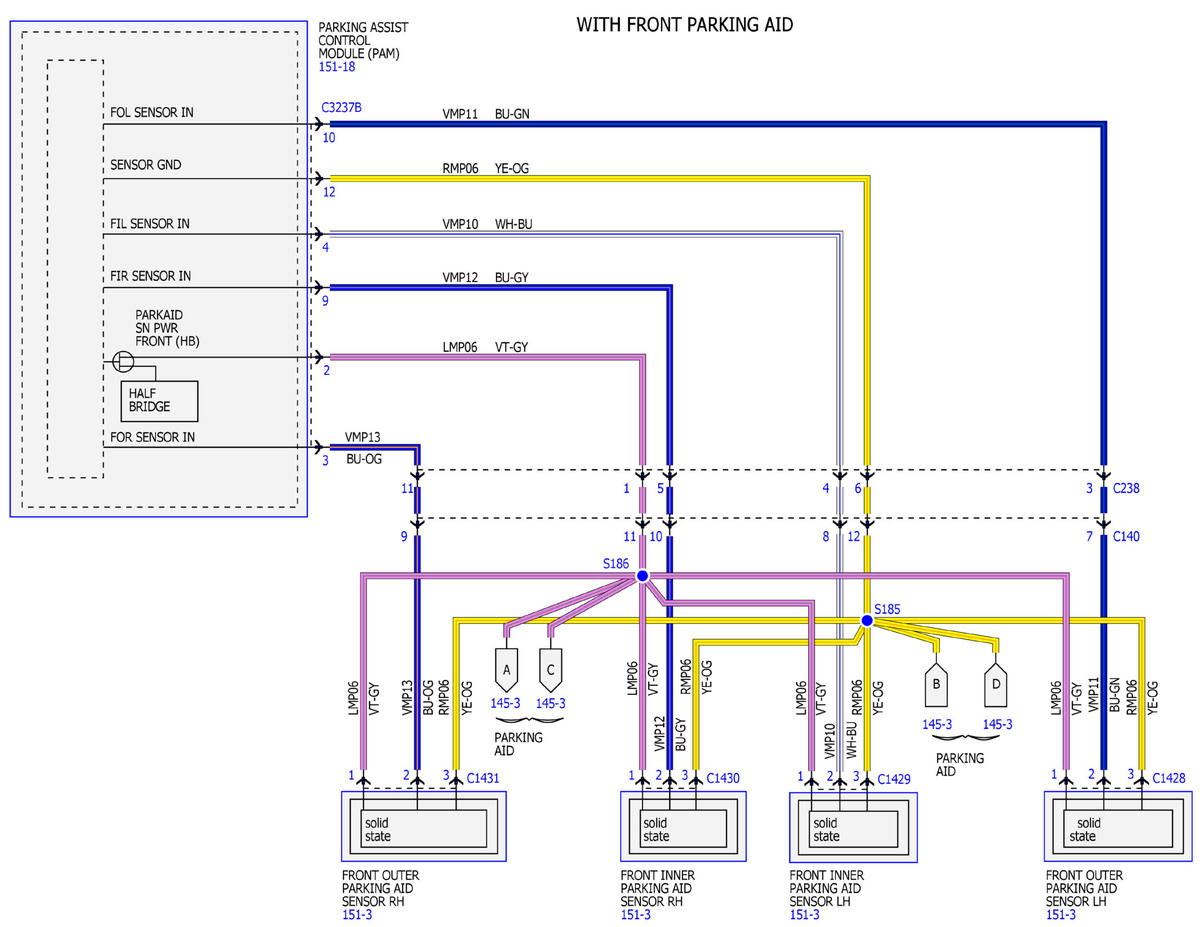

Fig 2: Parking Aid Wiring Diagrams (2 Of 8)

GFDWR149769

Courtesy of FORD MOTOR COMPANY

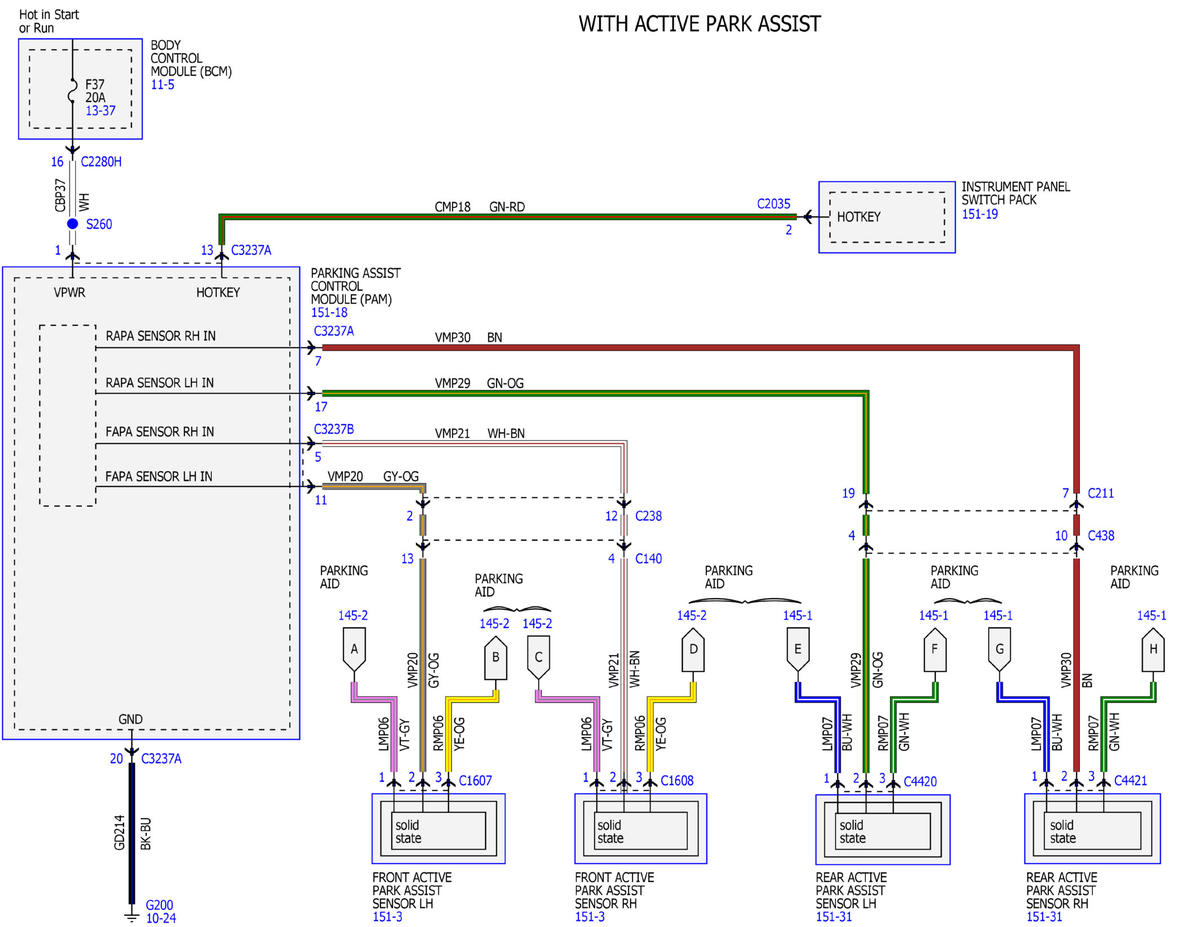

Fig 3: Parking Aid Wiring Diagrams (3 Of 8)

GFDWR149770

Courtesy of FORD MOTOR COMPANY

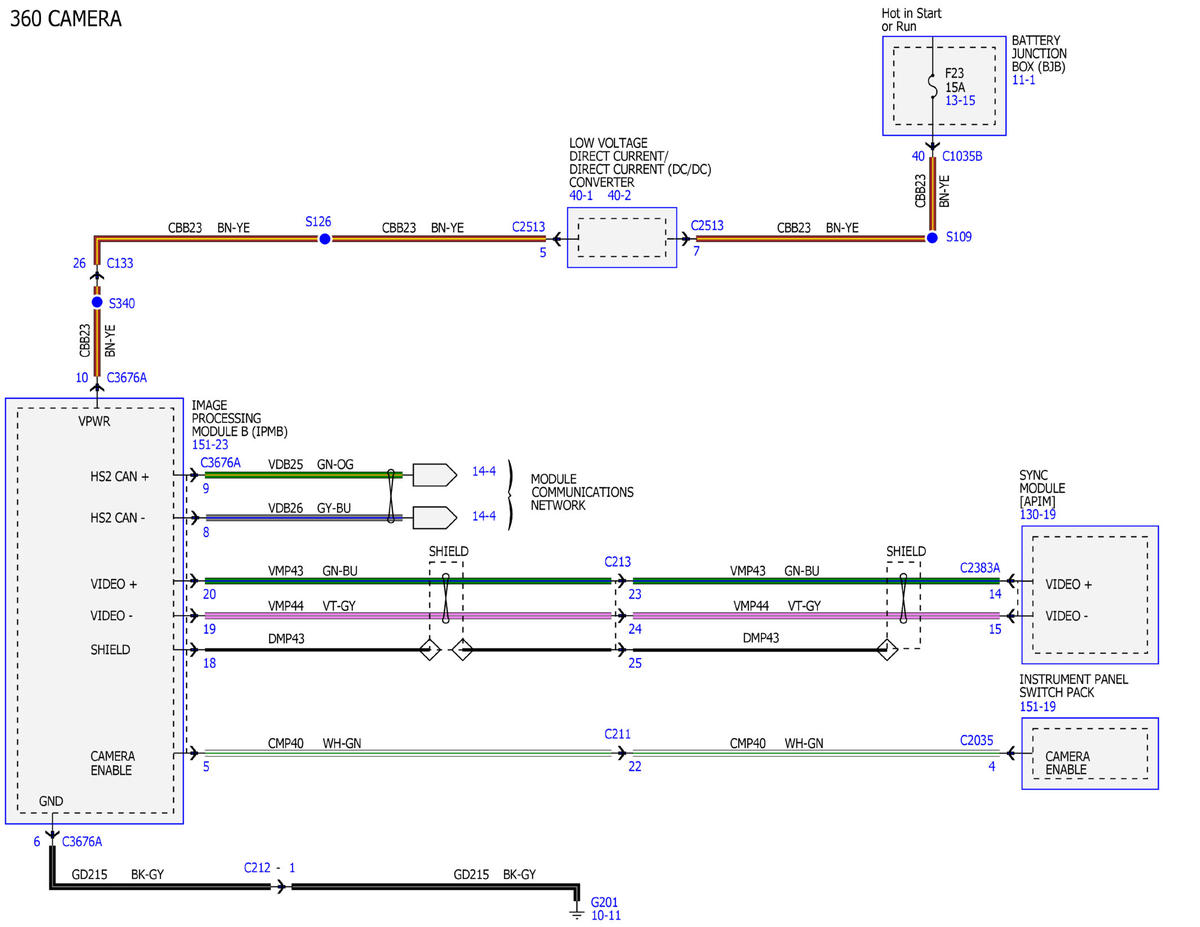

Fig 4: Parking Aid Wiring Diagrams (4 Of 8)

GFDWR149771

Courtesy of FORD MOTOR COMPANY

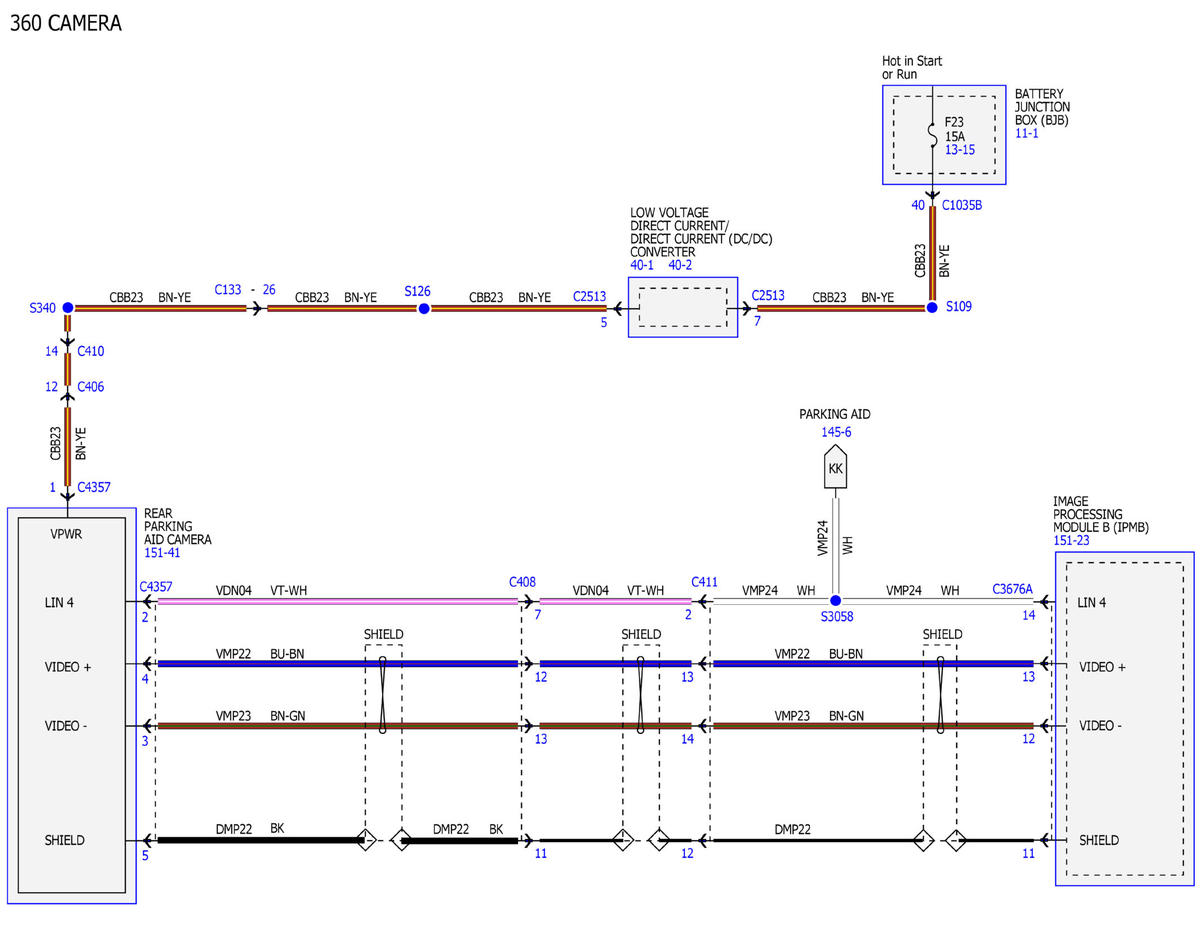

Fig 5: Parking Aid Wiring Diagrams (5 Of 8)

GFDWR149772

Courtesy of FORD MOTOR COMPANY

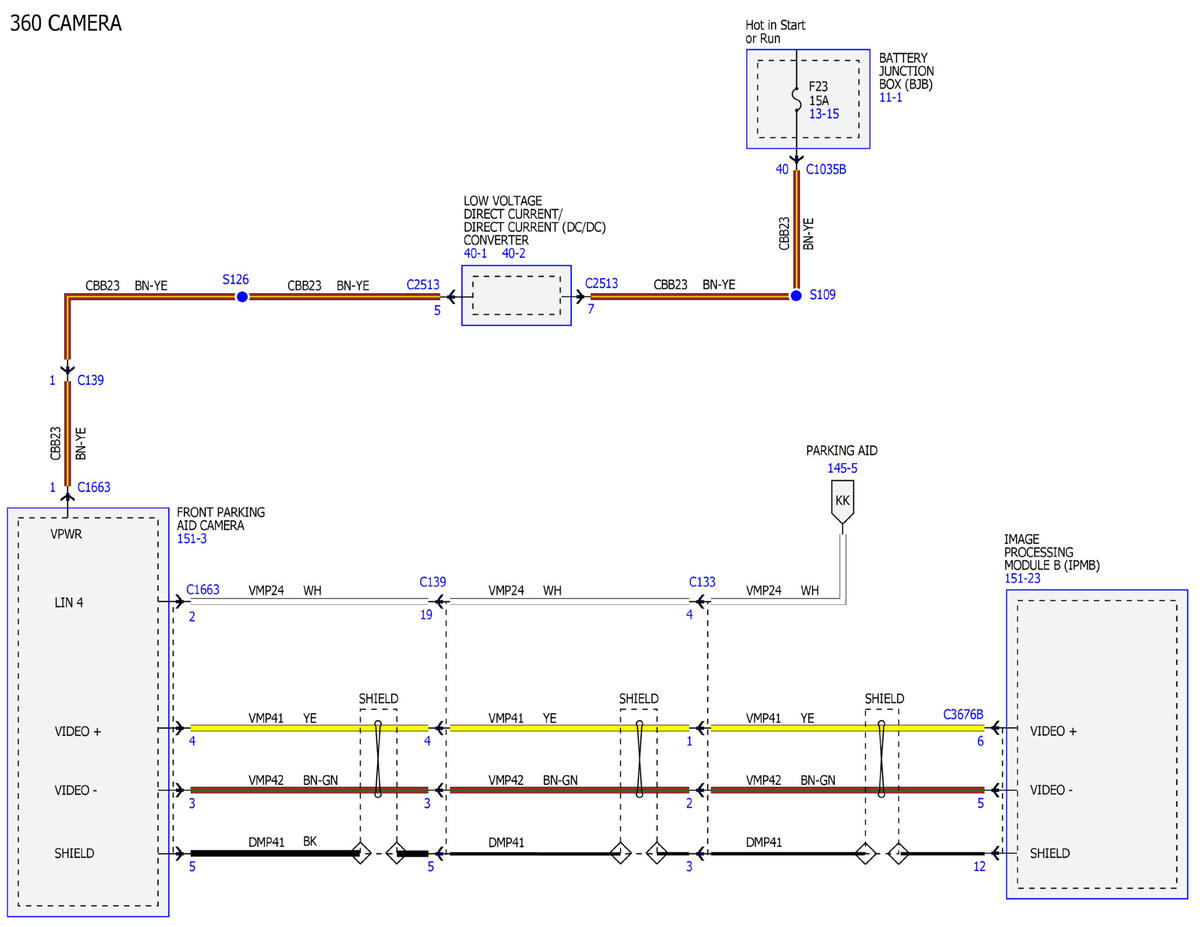

Fig 6: Parking Aid Wiring Diagrams (6 Of 8)

GFDWR149773

Courtesy of FORD MOTOR COMPANY

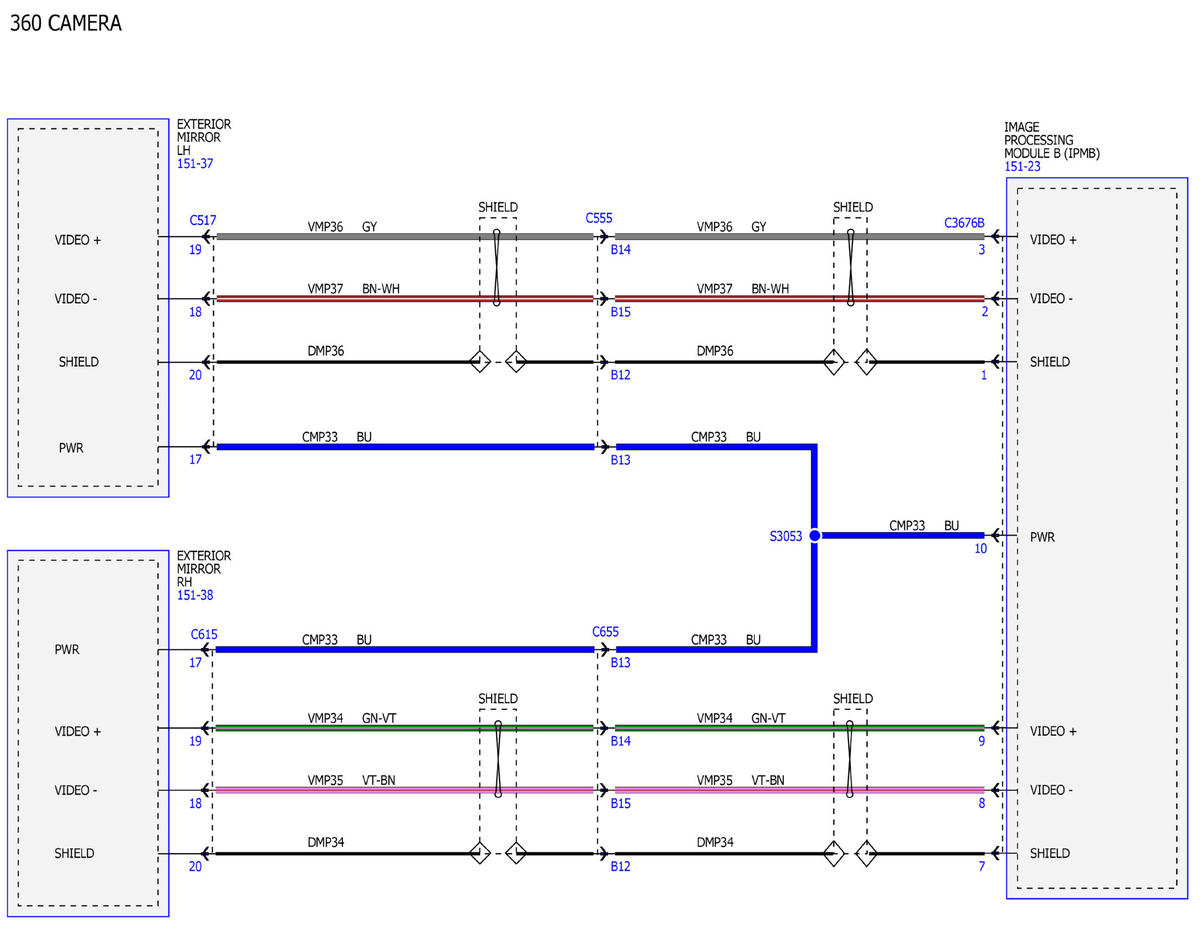

Fig 7: Parking Aid Wiring Diagrams (7 Of 8)

GFDWR149774

Courtesy of FORD MOTOR COMPANY

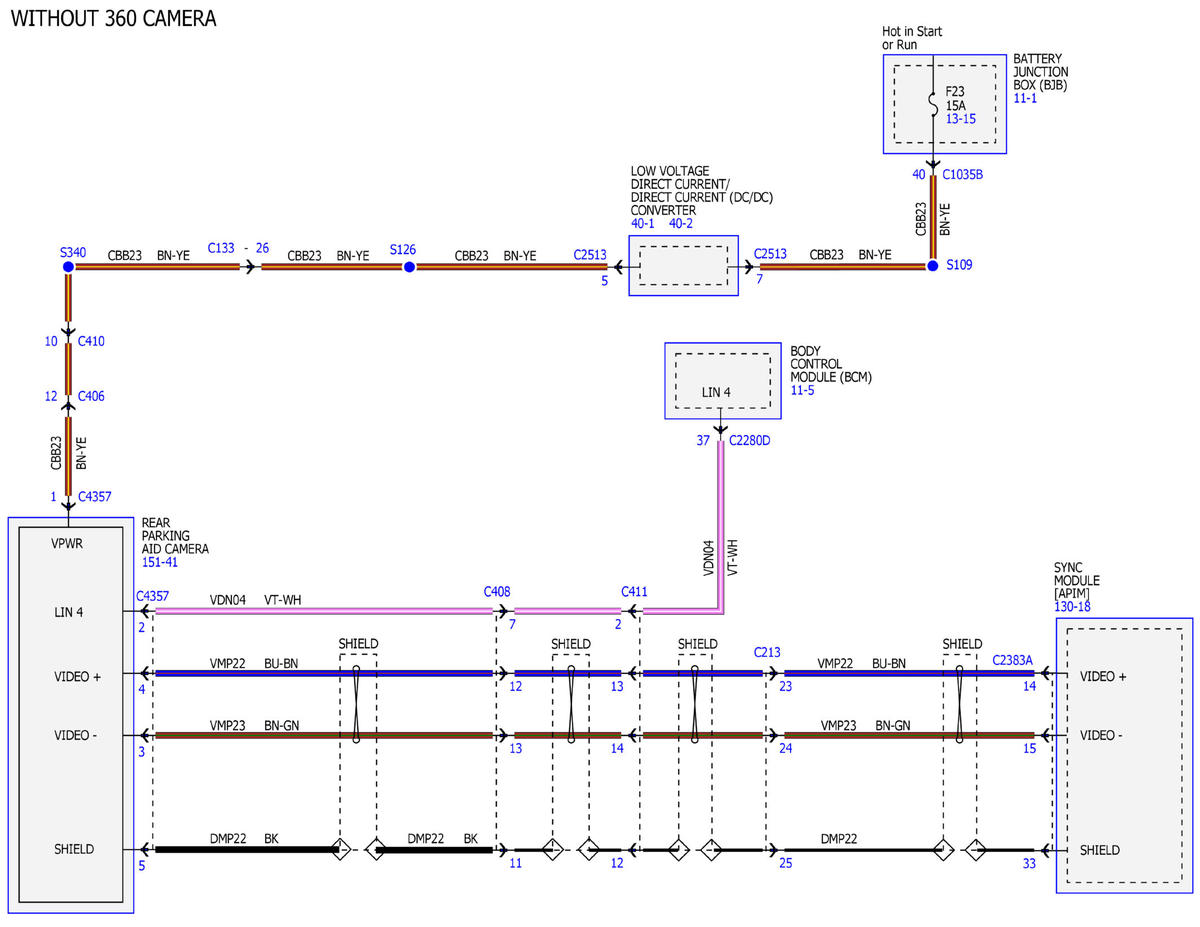

Fig 8: Parking Aid Wiring Diagrams (8 Of 8)

GFDWR149775

Courtesy of FORD MOTOR COMPANY
