Instrument Cluster

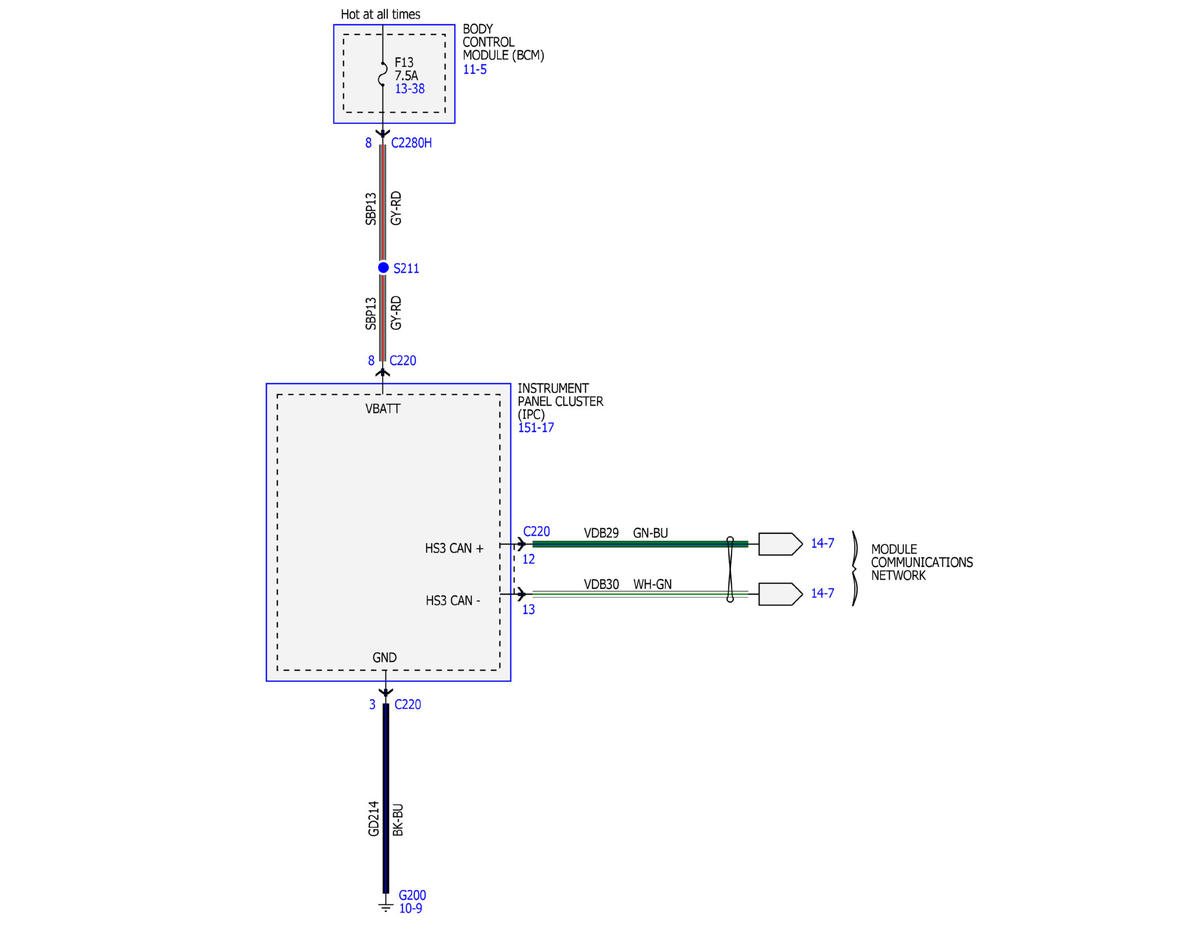

Fig 1: Instrument Cluster Wiring Diagrams (1 Of 6)
GFDWR149730Courtesy of FORD MOTOR COMPANY

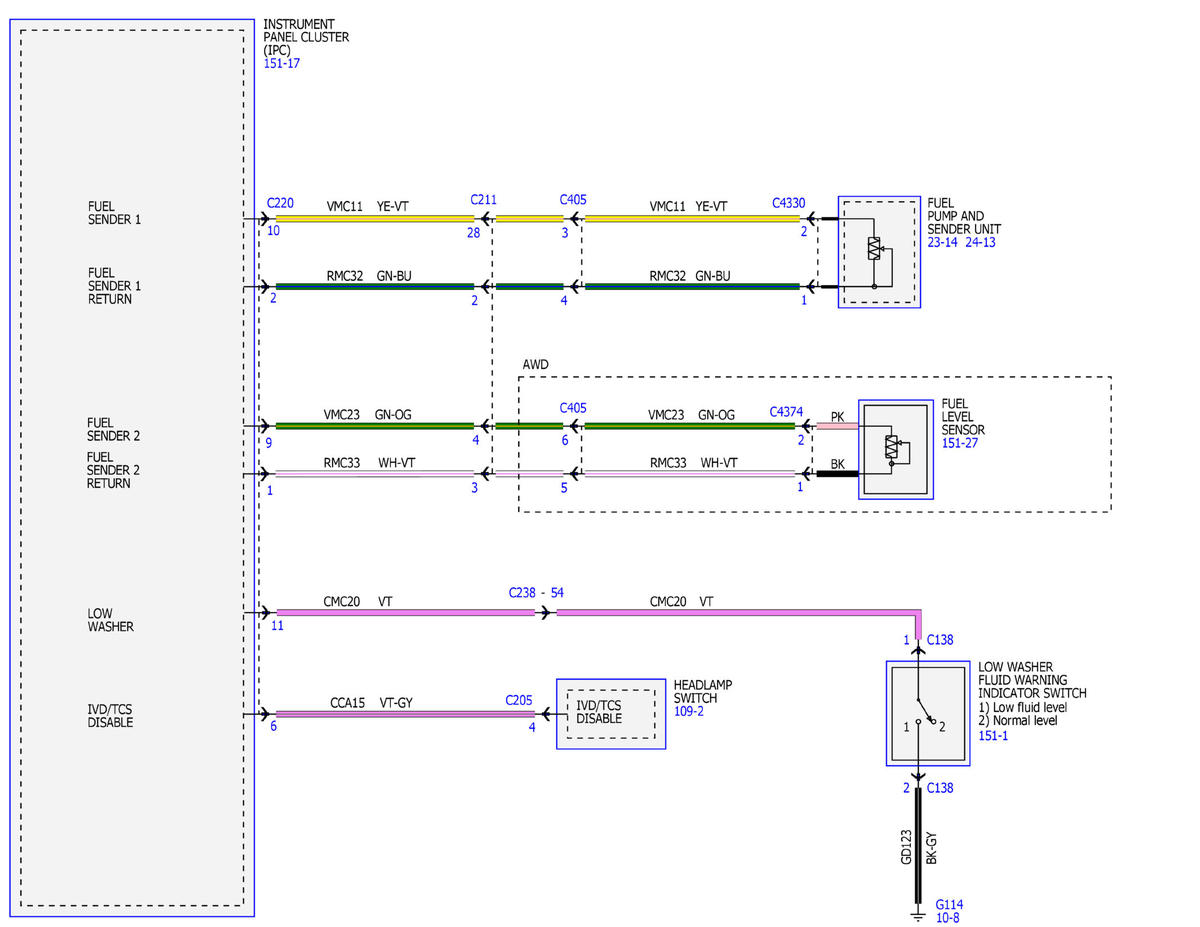

Fig 2: Instrument Cluster Wiring Diagrams (2 Of 6)
GFDWR149731Courtesy of FORD MOTOR COMPANY

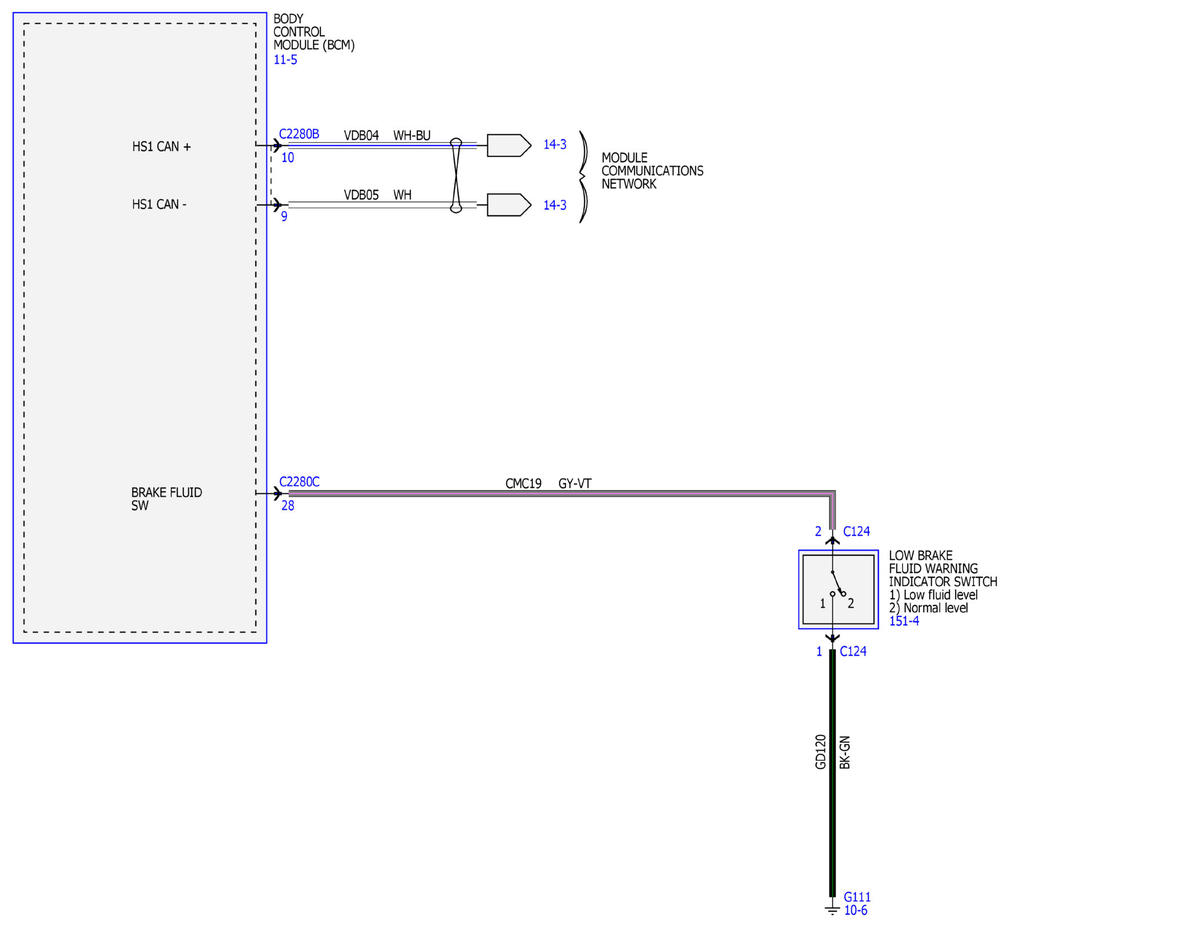

Fig 3: Instrument Cluster Wiring Diagrams (3 Of 6)
GFDWR149732Courtesy of FORD MOTOR COMPANY

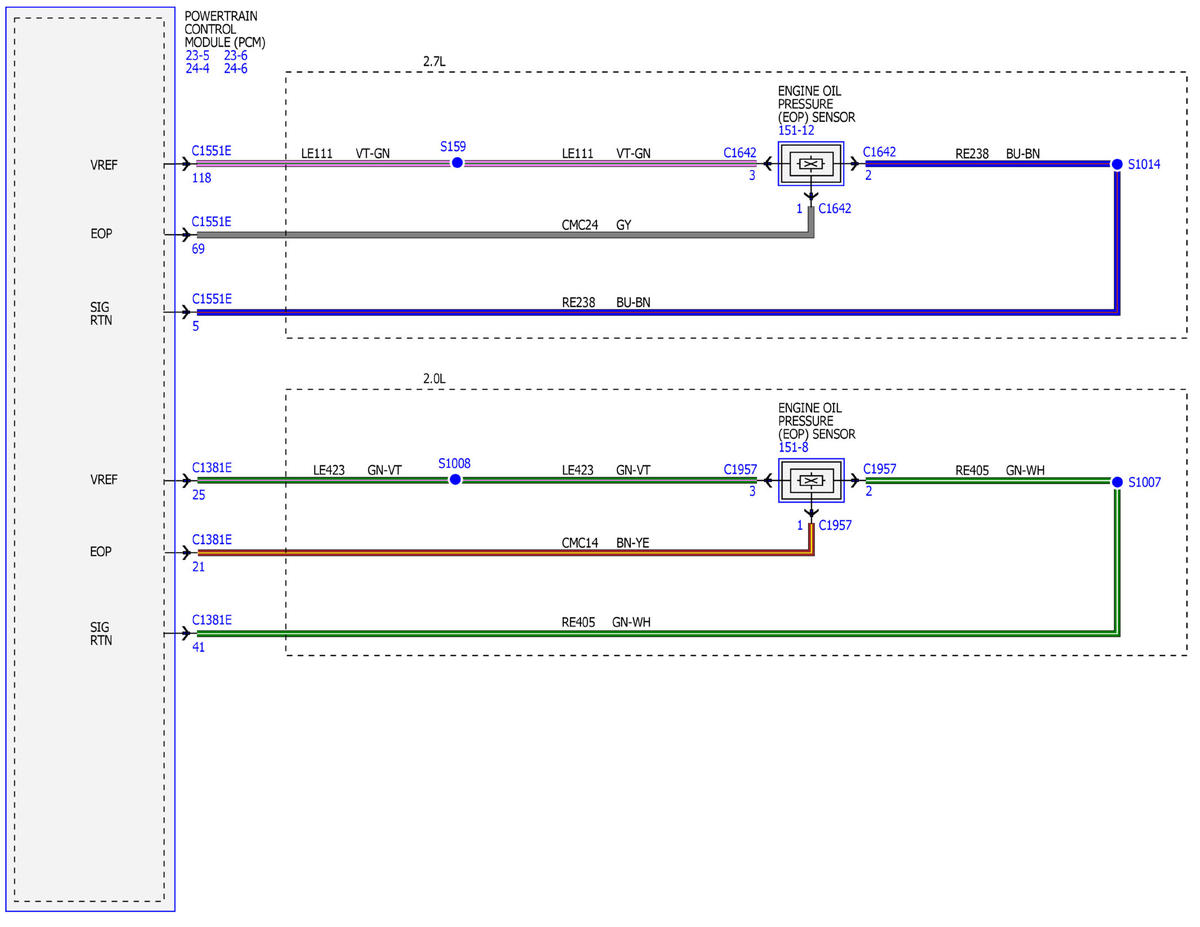

Fig 4: Instrument Cluster Wiring Diagrams (4 Of 6)
GFDWR149733Courtesy of FORD MOTOR COMPANY

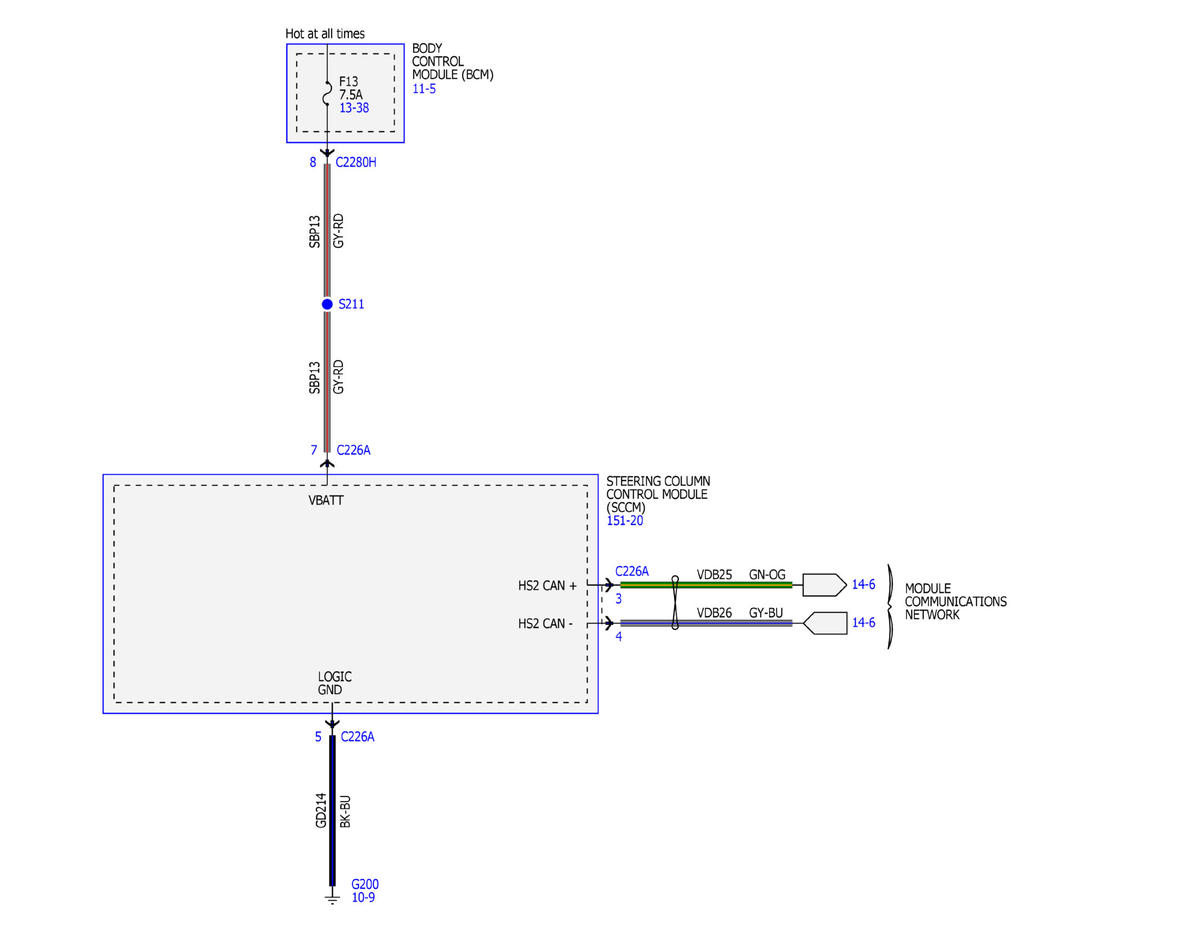

Fig 5: Instrument Cluster Wiring Diagrams (5 Of 6)
GFDWR149734Courtesy of FORD MOTOR COMPANY

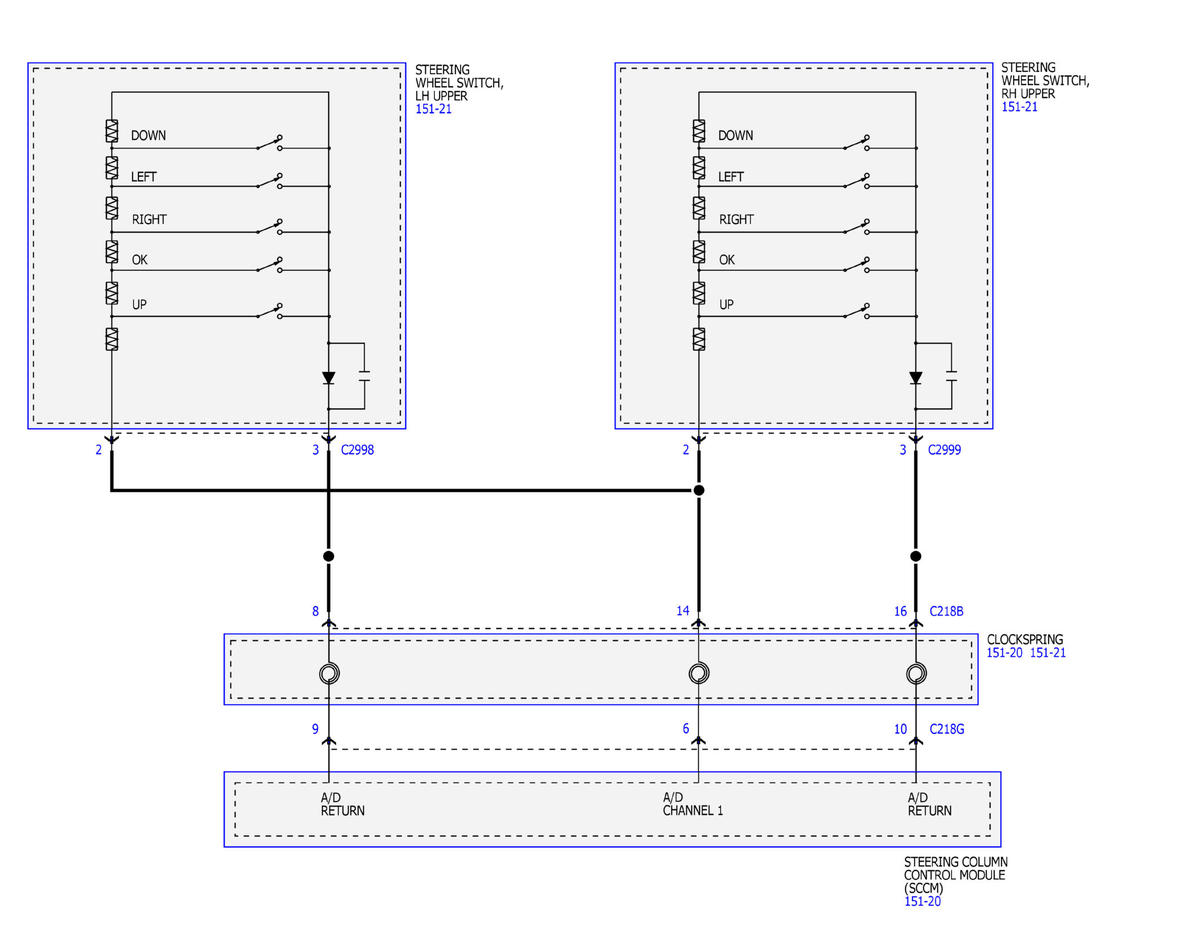

Fig 6: Instrument Cluster Wiring Diagrams (6 Of 6)
GFDWR149735Courtesy of FORD MOTOR COMPANY
