OEM Wiring Diagrams: Headlamps/AUTOLAMPS

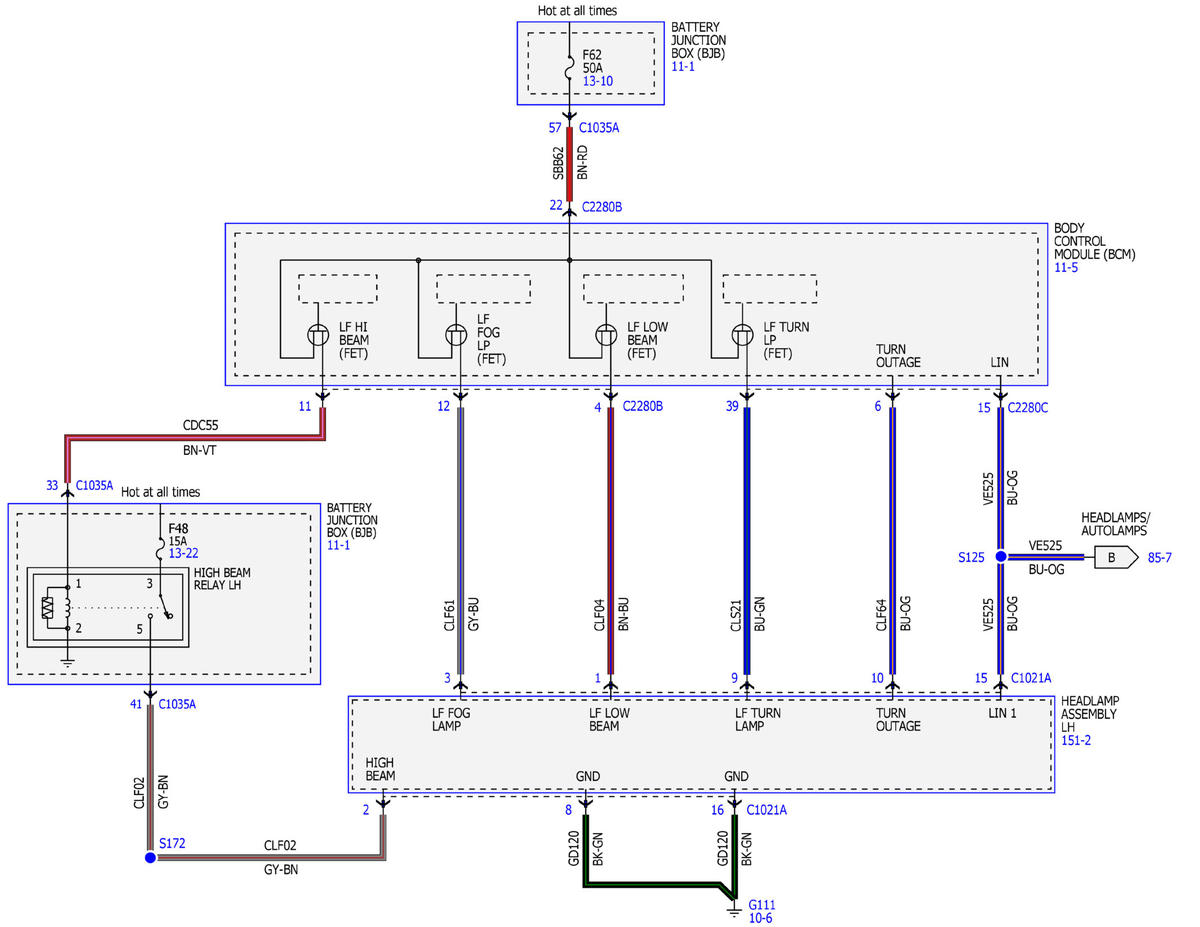

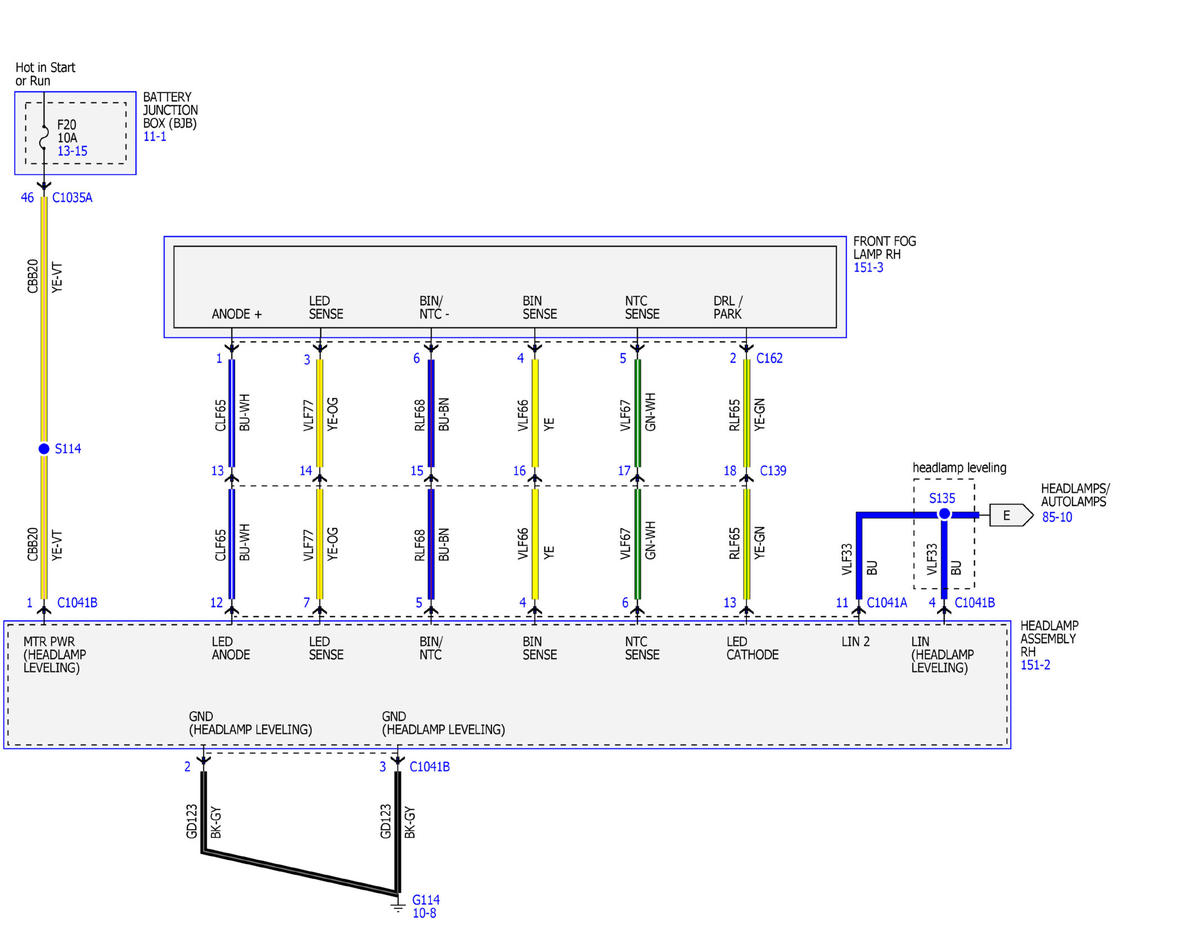

Fig 1: Headlamps/Autolamps Wiring Diagrams (1 Of 11)

Courtesy of FORD MOTOR COMPANY

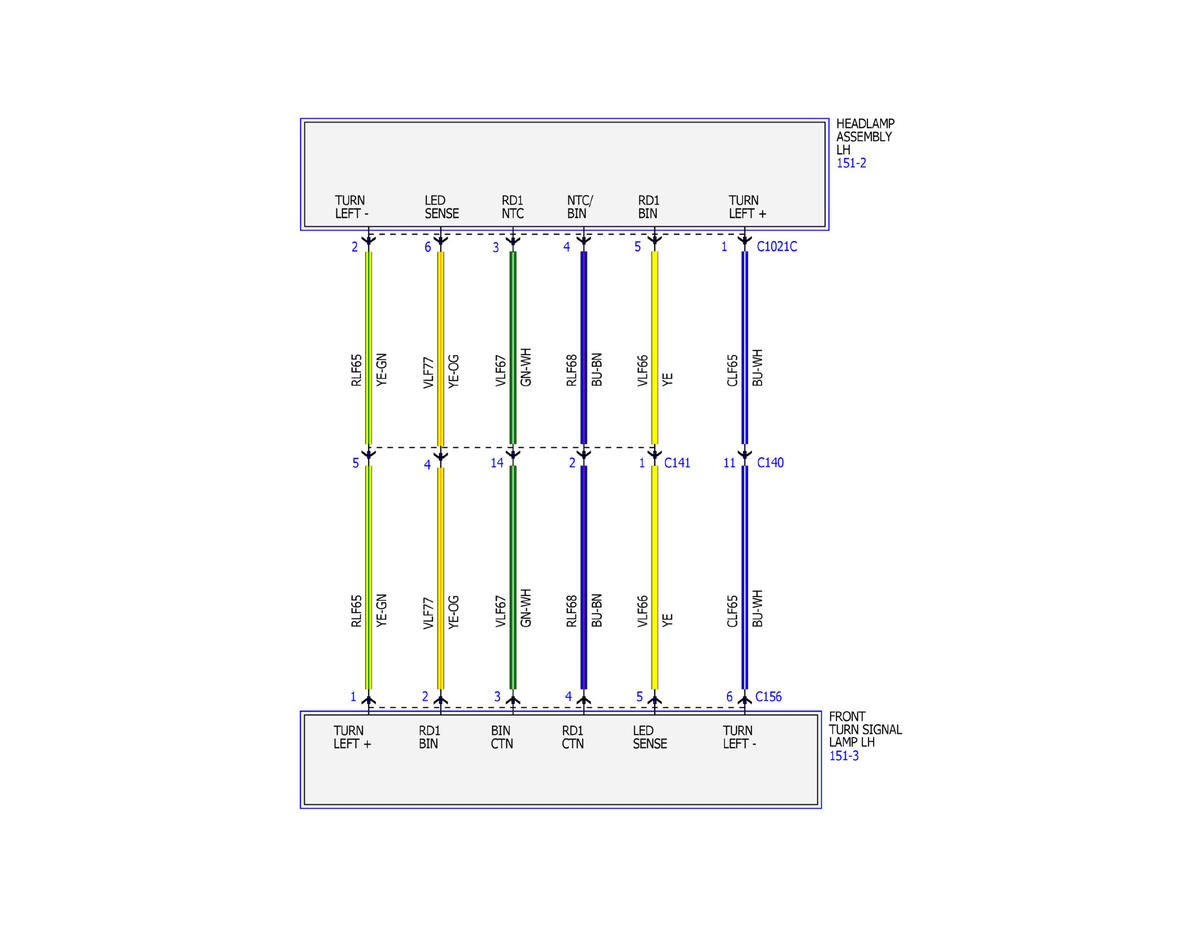

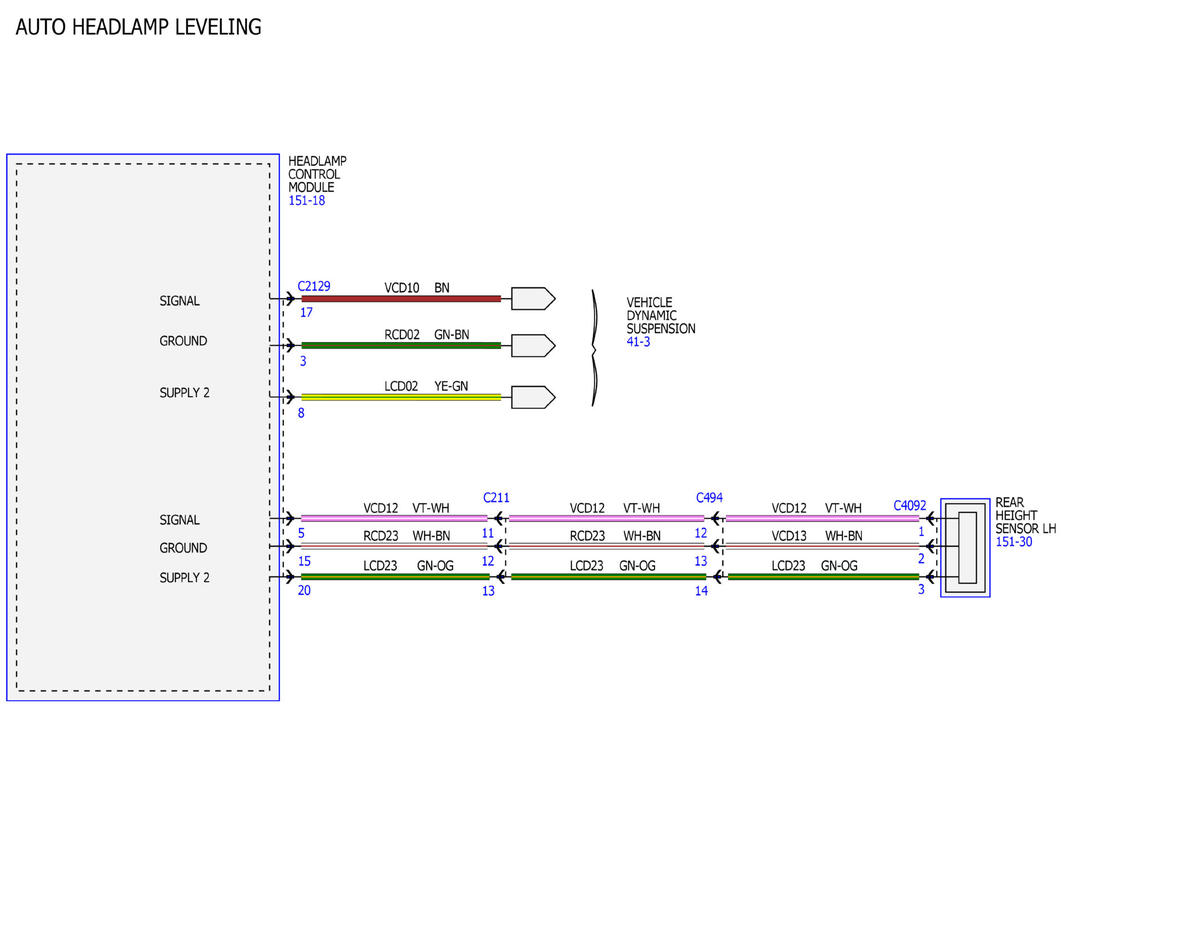

Fig 2: Headlamps/Autolamps Wiring Diagrams (2 Of 11)

Courtesy of FORD MOTOR COMPANY

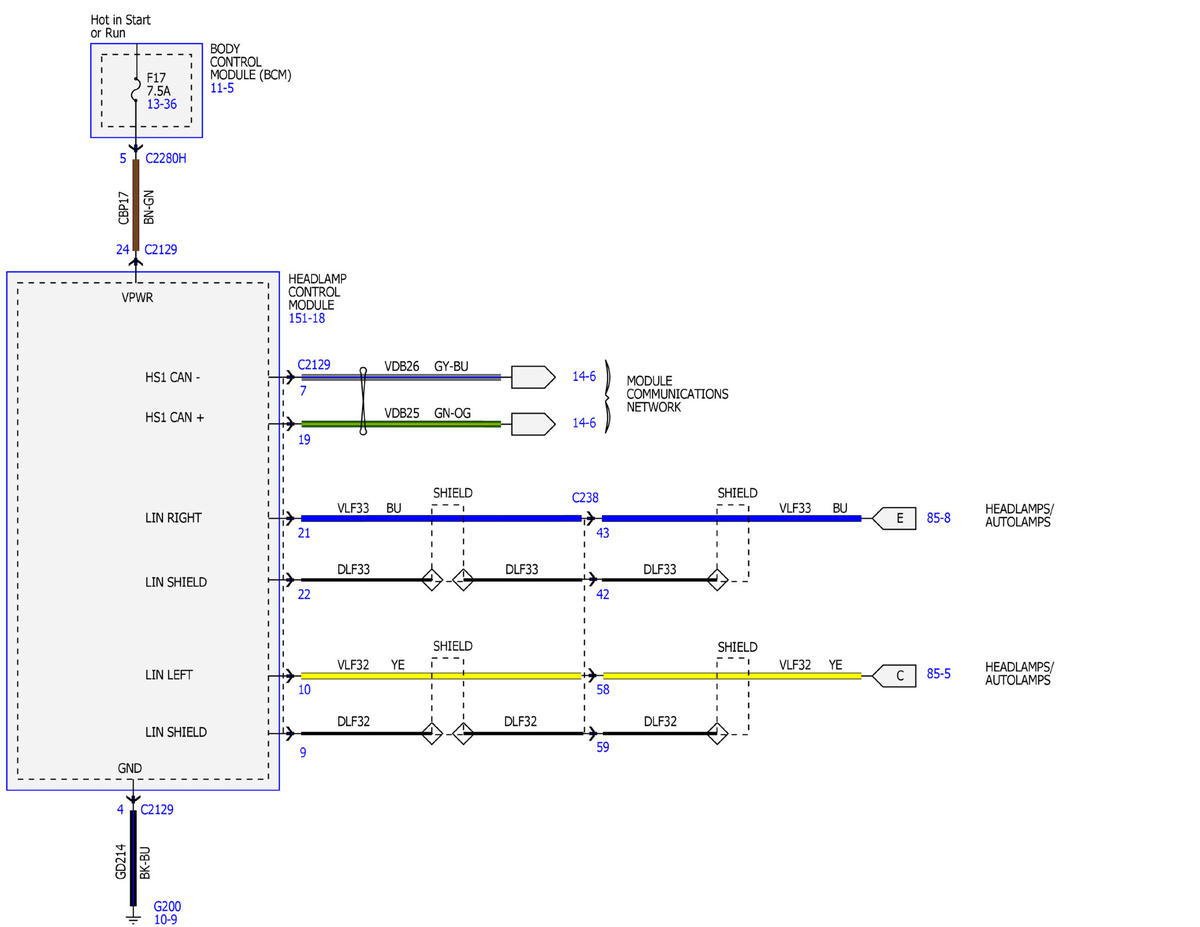

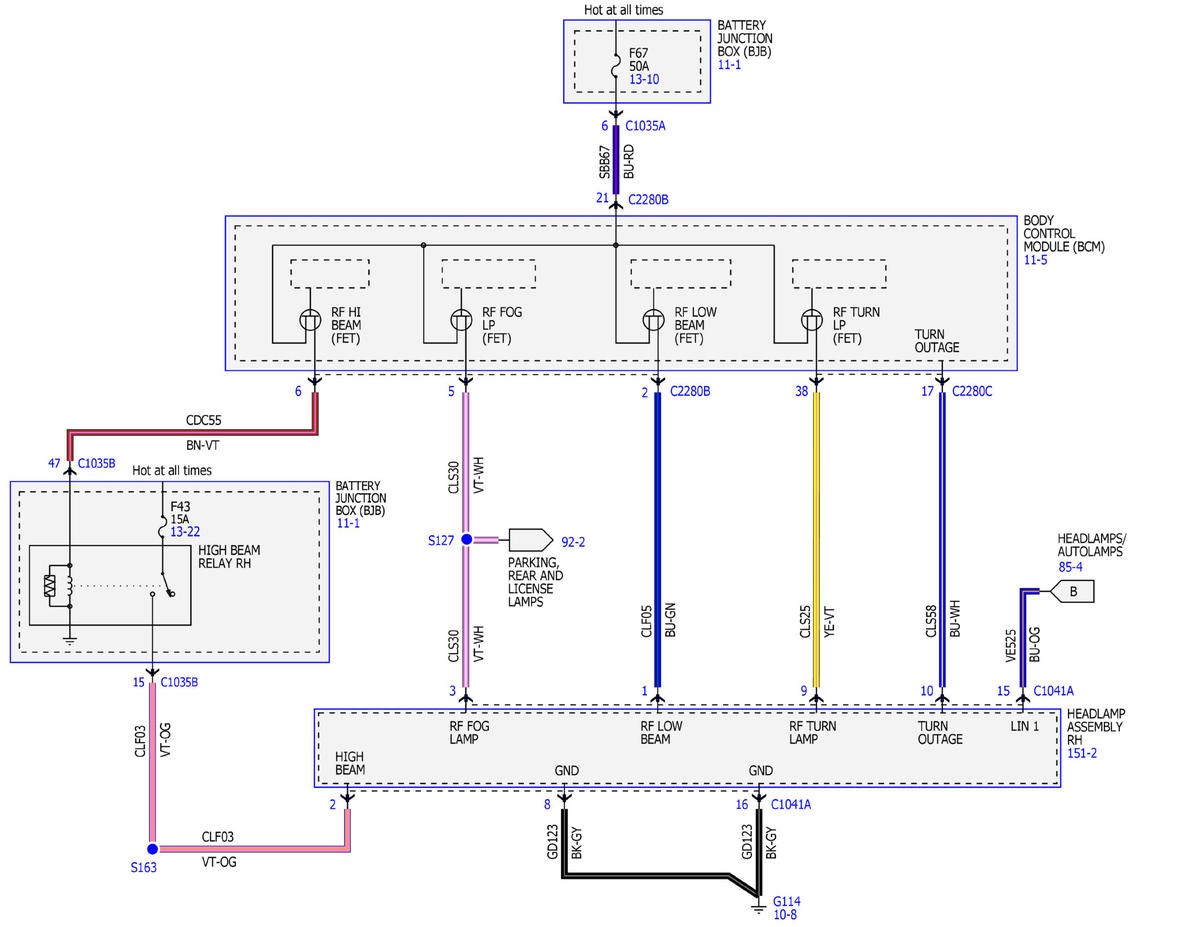

Fig 3: Headlamps/Autolamps Wiring Diagrams (3 Of 11)

Courtesy of FORD MOTOR COMPANY

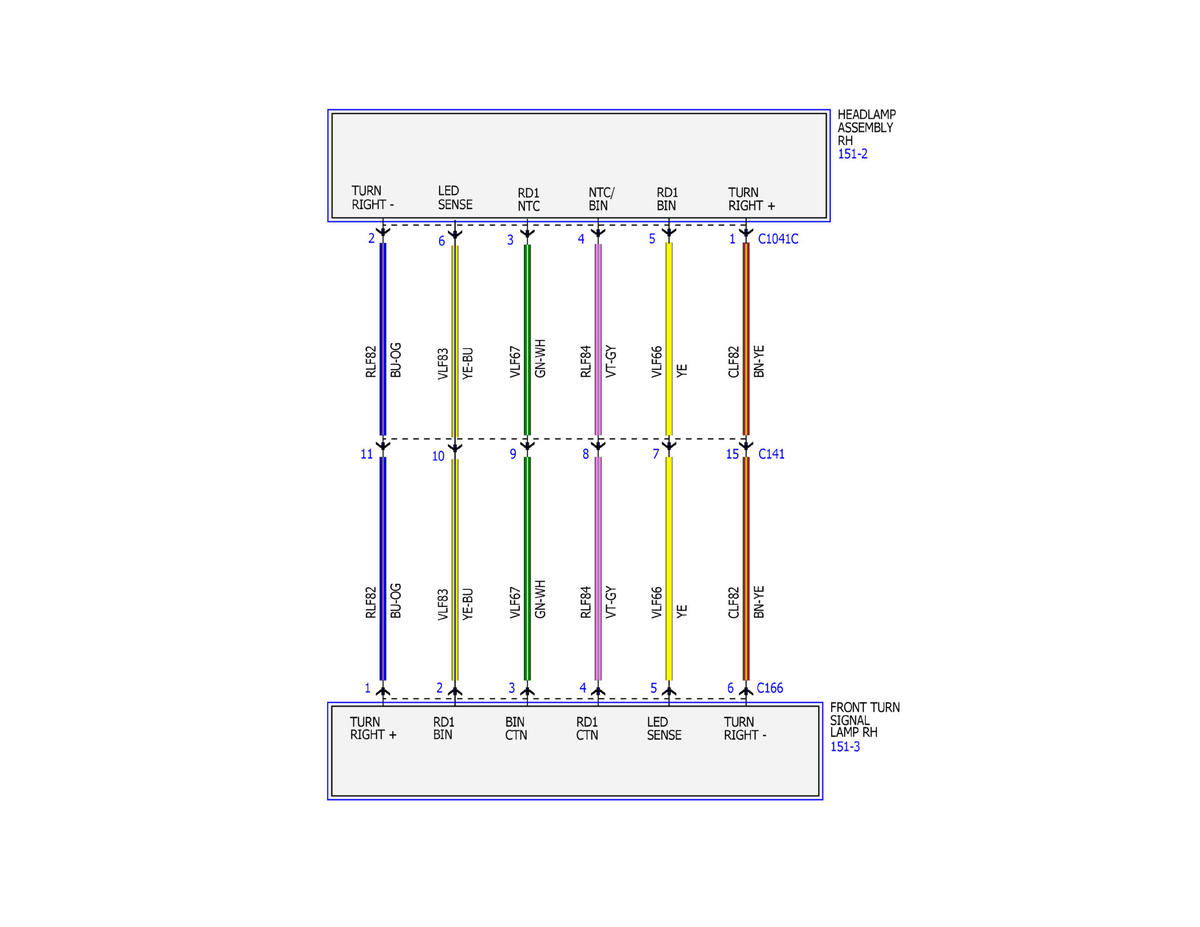

Fig 4: Headlamps/Autolamps Wiring Diagrams (4 Of 11)

Courtesy of FORD MOTOR COMPANY

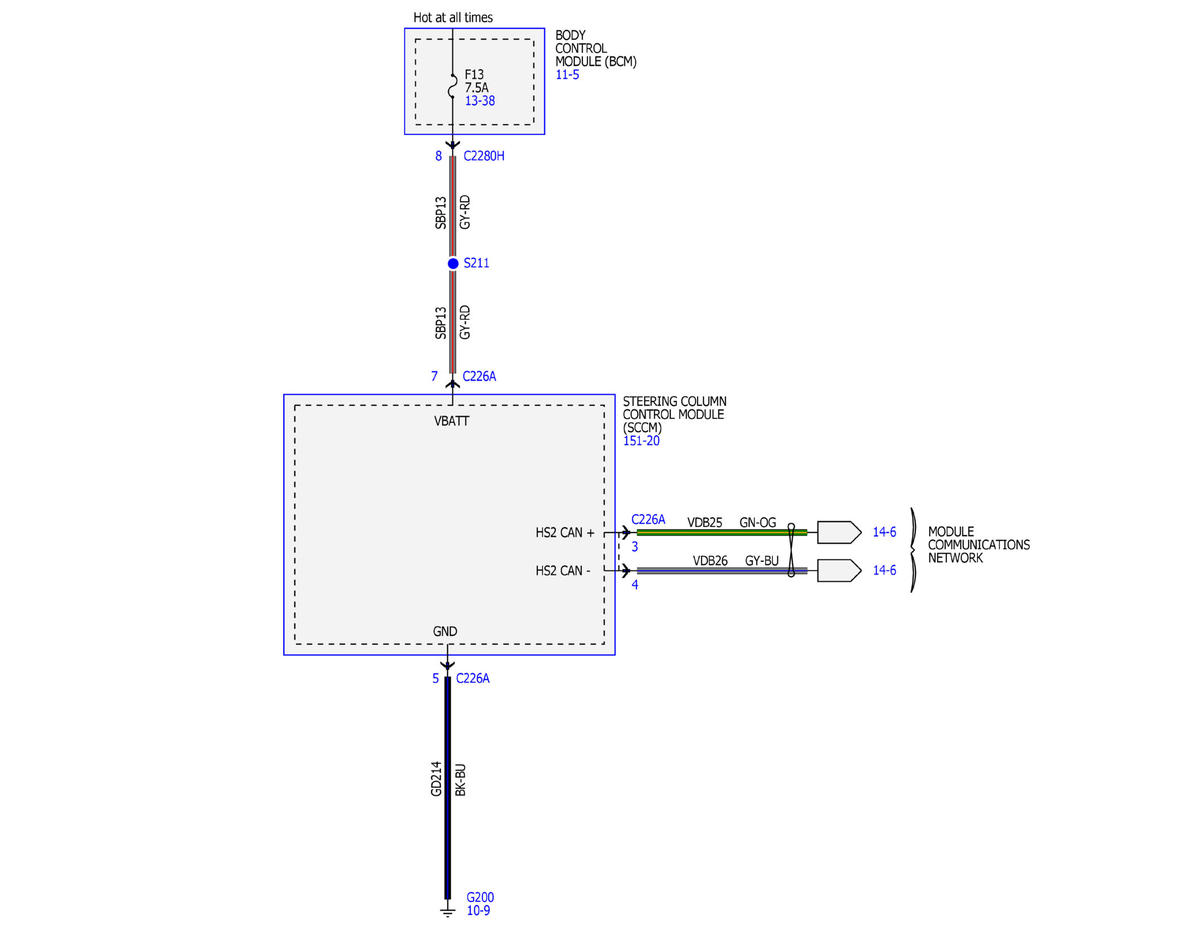

Fig 5: Headlamps/Autolamps Wiring Diagrams (5 Of 11)

Courtesy of FORD MOTOR COMPANY

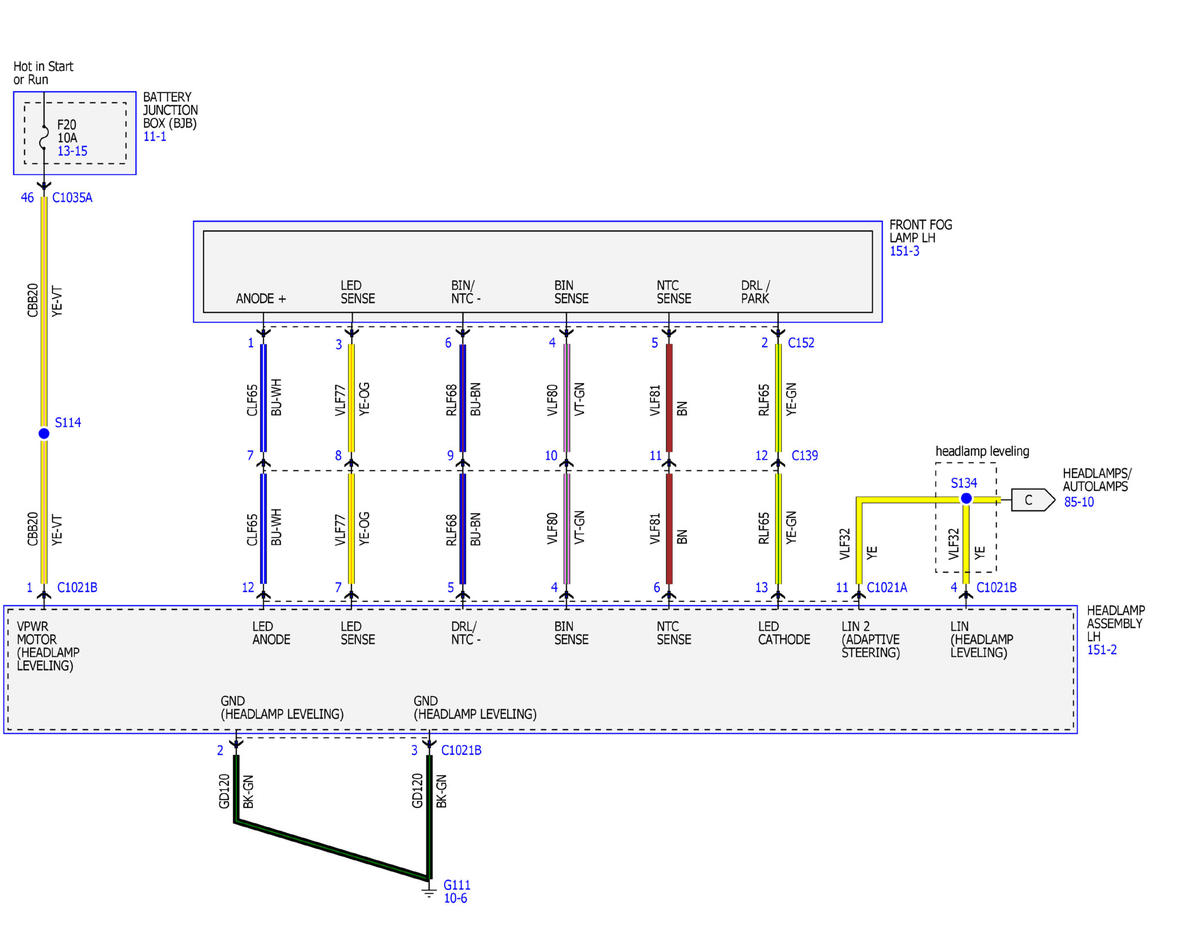

Fig 6: Headlamps/Autolamps Wiring Diagrams (6 Of 11)

Courtesy of FORD MOTOR COMPANY

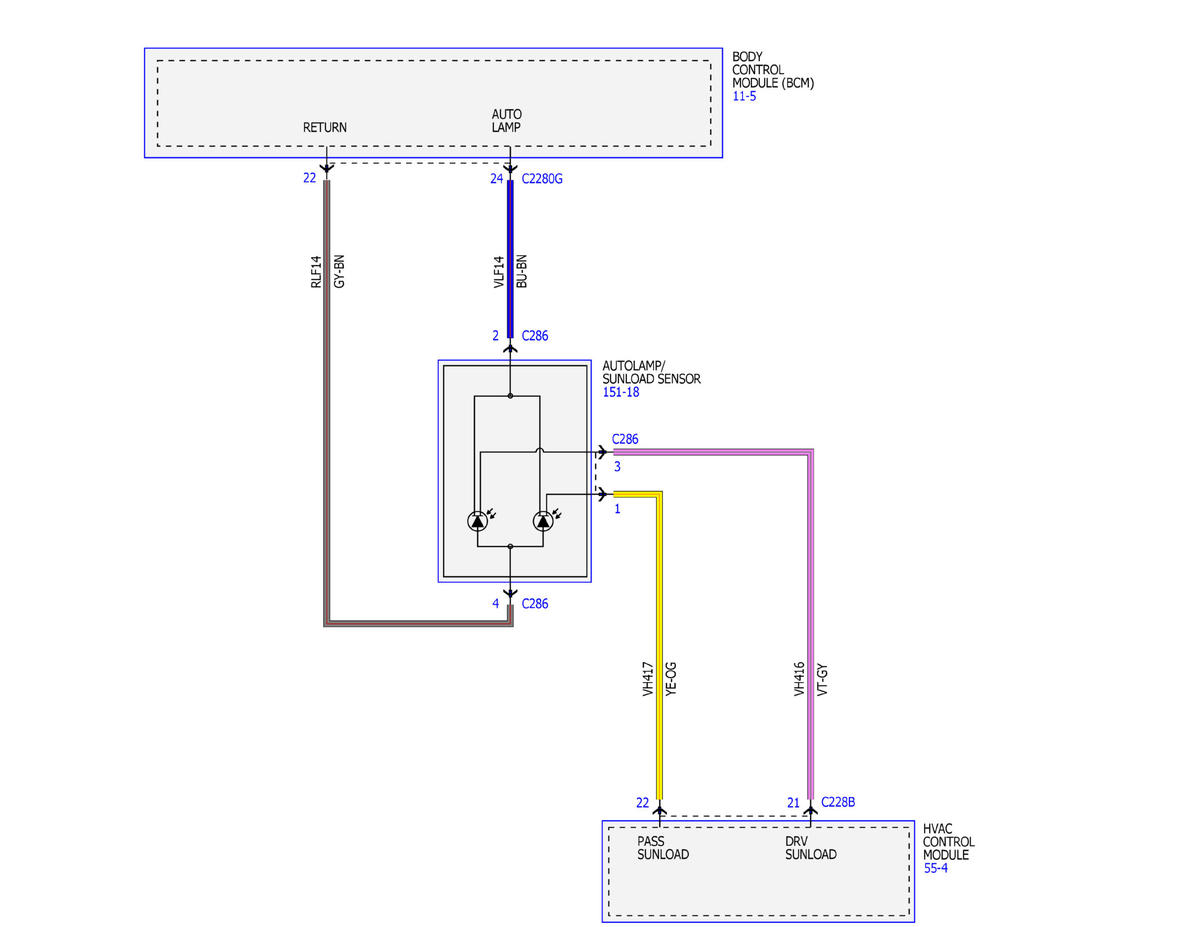

Fig 7: Headlamps/Autolamps Wiring Diagrams (7 Of 11)

Courtesy of FORD MOTOR COMPANY

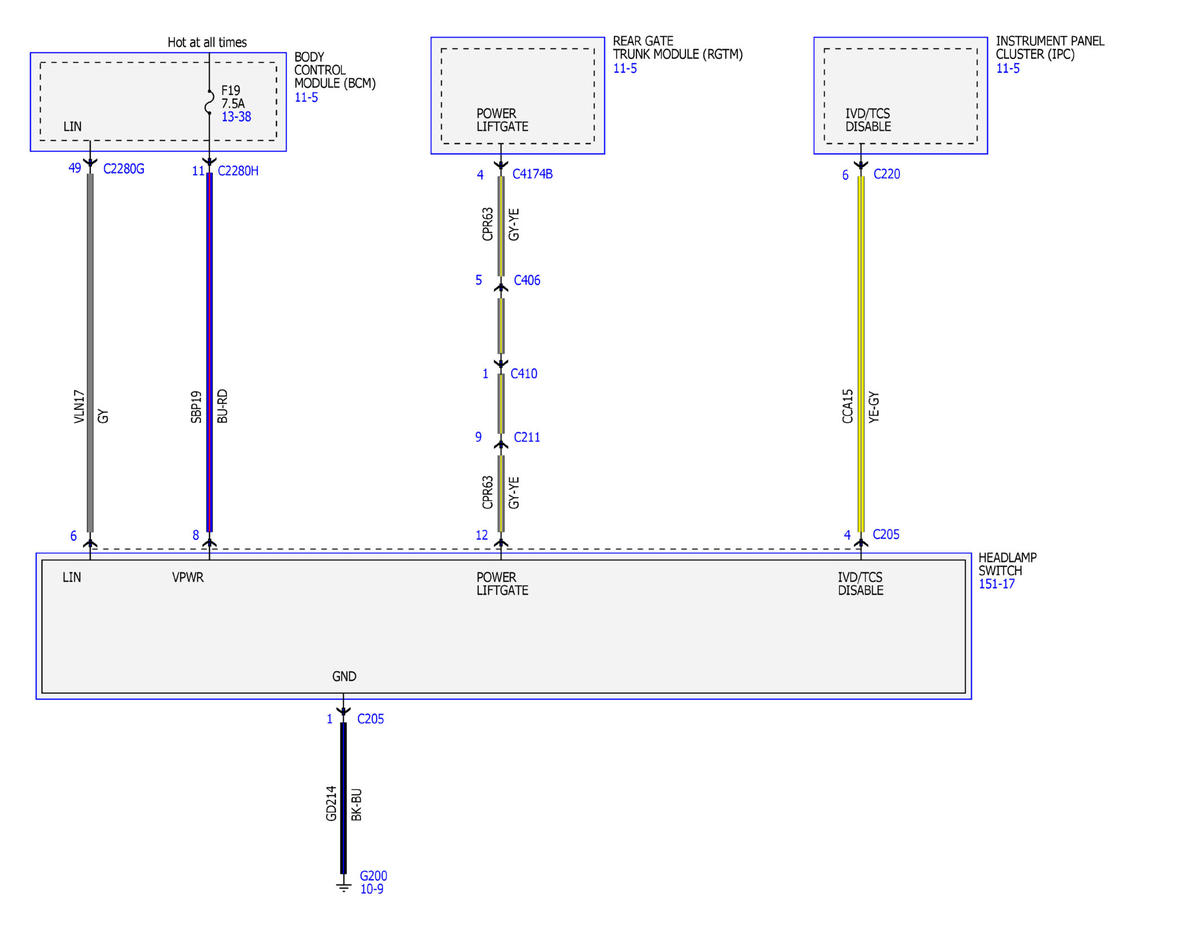

Fig 8: Headlamps/Autolamps Wiring Diagrams (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Headlamps/Autolamps Wiring Diagrams (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Headlamps/Autolamps Wiring Diagrams (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Headlamps/Autolamps Wiring Diagrams (11 Of 11)

Courtesy of FORD MOTOR COMPANY
