Fog Lamps

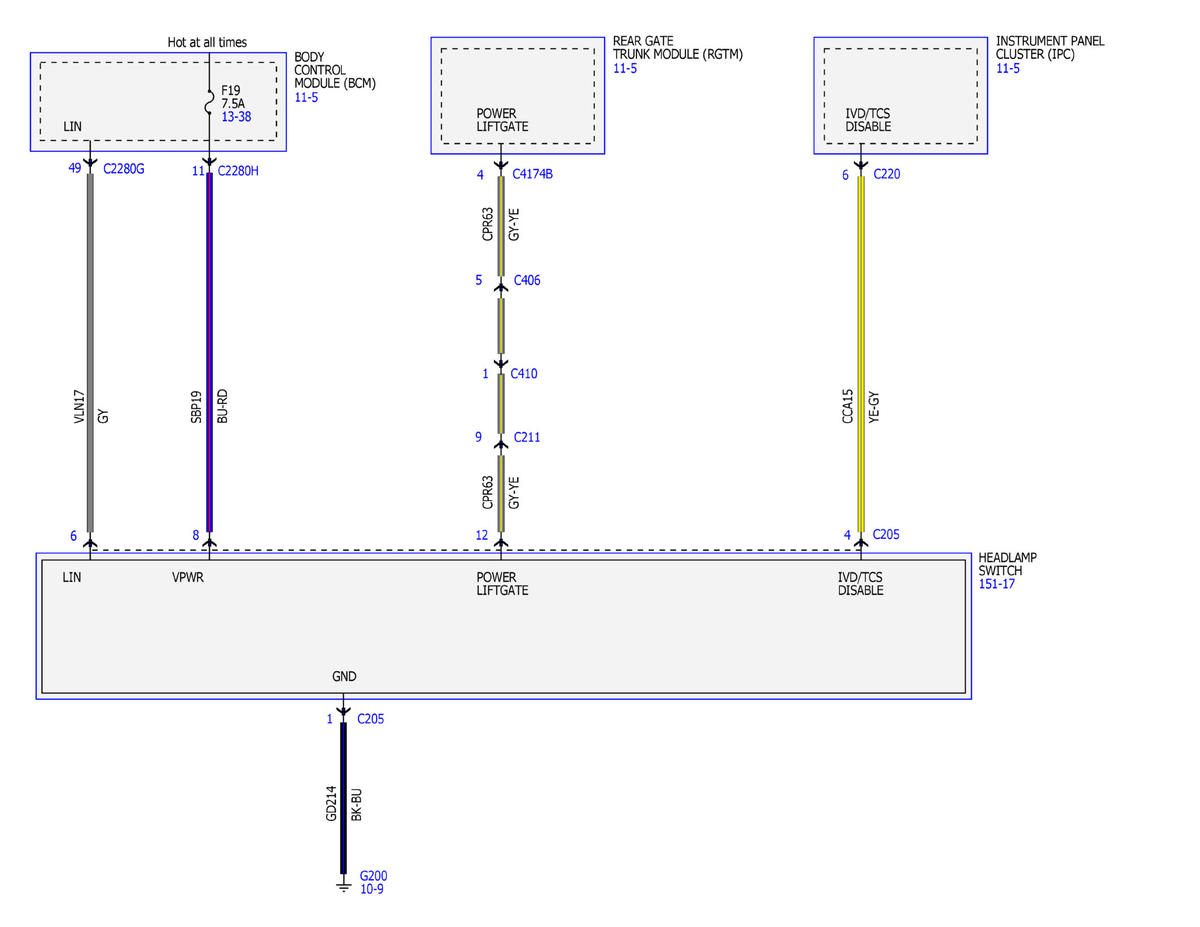

Fig 1: Fog Lamps Wiring Diagrams (1 Of 3)
GFDWR149707Courtesy of FORD MOTOR COMPANY

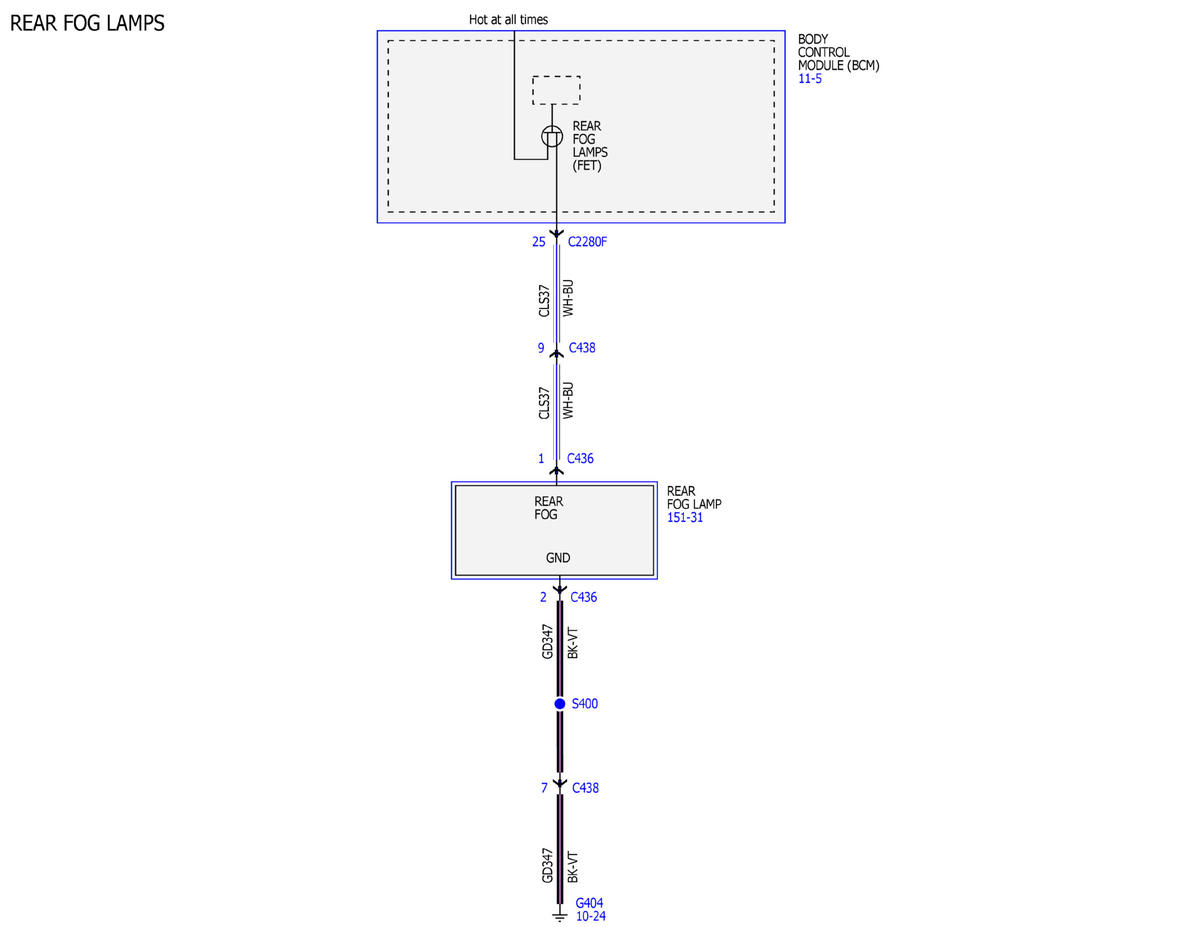

Fig 2: Fog Lamps Wiring Diagrams (2 Of 3)
GFDWR149708Courtesy of FORD MOTOR COMPANY

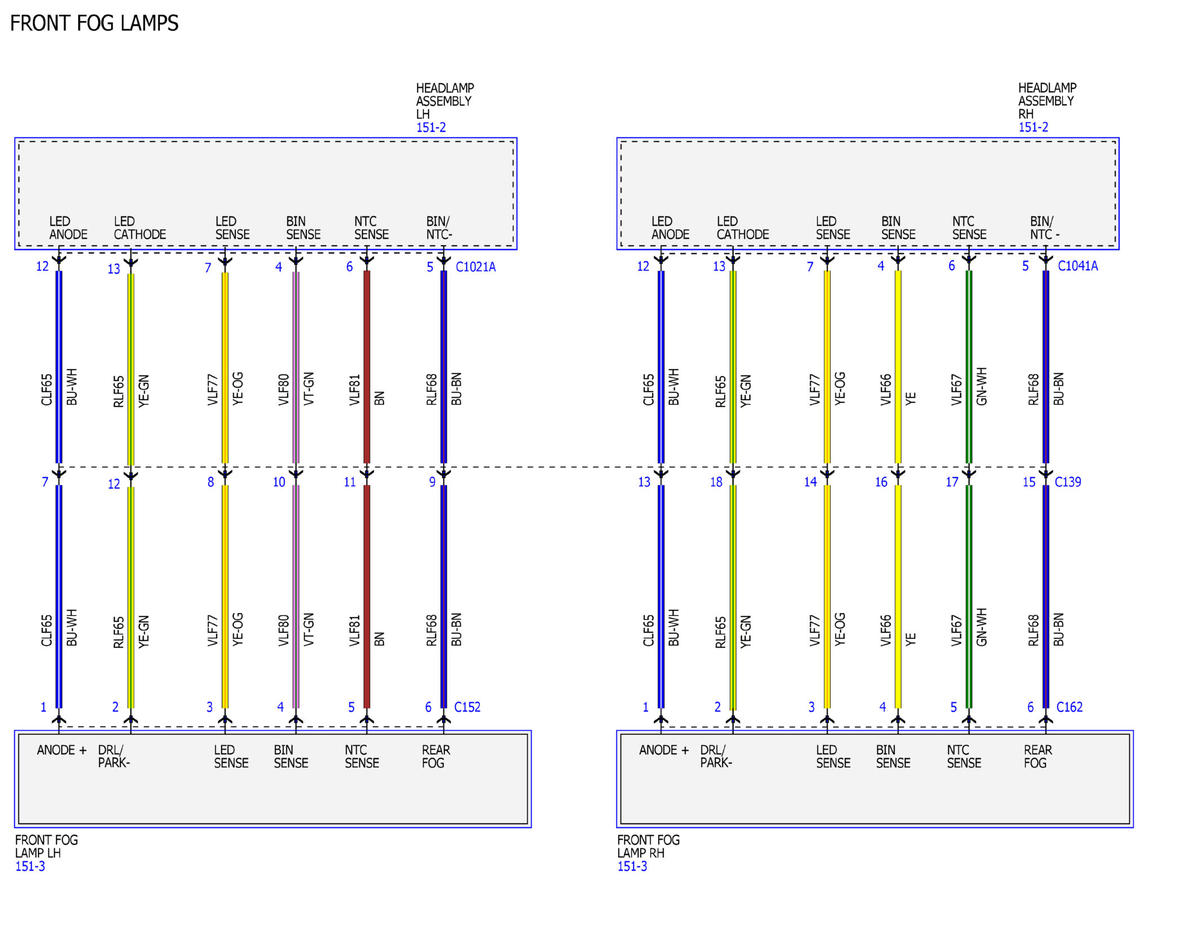

Fig 3: Fog Lamps Wiring Diagrams (3 Of 3)
GFDWR149709Courtesy of FORD MOTOR COMPANY
