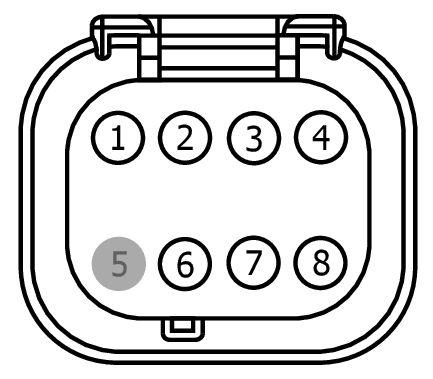

Connector End View C693 - EXTERIOR FRONT DOOR HANDLE RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C693	EXTERIOR FRONT DOOR HANDLE RH	14630			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6R8T-14421-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	6R8T-14421-AA
2	VMM30 (GN-BN)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # LIN BUS 5	6R8T-14421-AA
3	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	6R8T-14421-AA
4	VPK40 (WH-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	6R8T-14421-AA
5	*	*	Not Used	N/A
6	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	6R8T-14421-AA
7	CLN25 (WH-GN)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)	6R8T-14421-AA
8	VMM38 (WH-BU)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # HIGH SIDE DRIVE OUTPUT 2	6R8T-14421-AA
