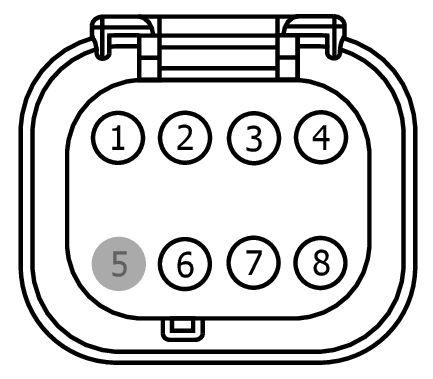

Connector End View C573 - EXTERIOR FRONT DOOR HANDLE LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C573	EXTERIOR FRONT DOOR HANDLE LH	14631			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6R8T-14421-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RPK39 (VT-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE	6R8T-14421-AA
2	VMM33 (GN-WH)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # LIN BUS 8	6R8T-14421-AA
3	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +	6R8T-14421-AA
4	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA	6R8T-14421-AA
5	*	*	Not Used	N/A
6	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -	6R8T-14421-AA
7	CLN25 (WH-GN)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)	6R8T-14421-AA
8	VMM37 (GY-BN)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # HIGH SIDE DRIVE OUTPUT 1	6R8T-14421-AA
