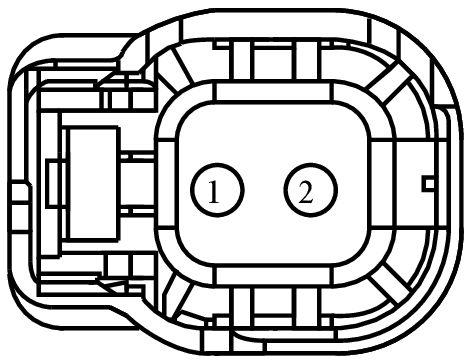

Connector End View C436 - REAR FOG LAMP
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C436 |
REAR FOG LAMP |
15K868 |
part# N/A |
Not Available |
Pin: 1 - CLS37(WH-BU)-CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON), Gauge 20
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 7C3T-14474-RA |
LU2Z-14474-CA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CLS37 (WH-BU) |
20 |
CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON) |
7C3T-14474-RA |
| 2 |
GD347 (BK-VT) |
20 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
7C3T-14474-RA |
