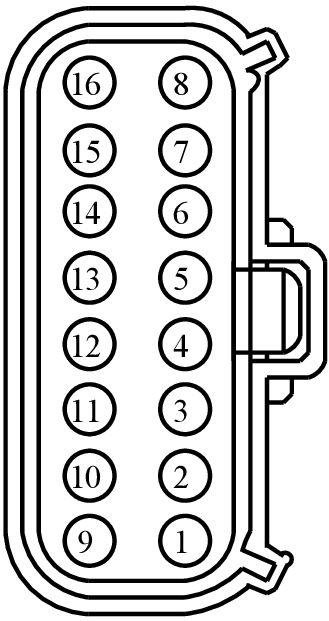

Connector End View C1041A - HEADLAMP ASSEMBLY RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1041A	HEADLAMP ASSEMBLY RH	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-AAA	Not Available
JU5T-14474-ABA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF05 (BU-GN)	20	CTRL MOD. - BEAM LOW RIGHT	JU5T-14474-AAA
2	CLF03 (VT-OG)	20	CTRL MOD. - BEAM HIGH RIGHT	JU5T-14474-AAA
3	CLS30 (VT-WH)	20	RELAY - PARK LAMP	JU5T-14474-AAA
4	VLF66 (YE)	20	CTRL MOD. - HEADLAMP # BIN RESISTOR 1 (RD1 BIN)	JU5T-14474-AAA
5	RLF68 (BU-BN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT GROUND 2 (BIN CTN DRL/PARK)	JU5T-14474-AAA
6	VLF67 (GN-WH)	20	CTRL MOD. - HEADLAMP # THERMAL SENSOR 1 (RD1 CTN)	JU5T-14474-AAA
7	VLF77 (YE-OG)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED SENSE	JU5T-14474-AAA
8	GD123 (BK-GY)	16	GROUND - FENDER FRONT RIGHT	JU5T-14474-ABA
9	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	JU5T-14474-AAA
10	CLS58 (BU-WH)	20	LAMP - TURN FRONT RIGHT # SIGNAL OUT	JU5T-14474-AAA
11	VLF33 (BU)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) +	JU5T-14474-AAA
12	CLF65 (BU-WH)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK +	JU5T-14474-AAA
13	RLF65 (YE-GN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK -	JU5T-14474-AAA
14	CLS12 (WH-VT)	16	CTRL MOD. - SIDE MARKER	JU5T-14474-ABA
15	VE525 (BU-OG)	20	CTRL MOD. - ELECTRIC WATER PUMP LIN BUS	JU5T-14474-AAA
16	GD123 (BK-GY)	16	GROUND - FENDER FRONT RIGHT	JU5T-14474-ABA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Lamp - Headlamp - High/Low Beam
• Mating Connector WPT-1404
• Module - Heated Seat (driver)
• Module - Transfer Case Shift Control
