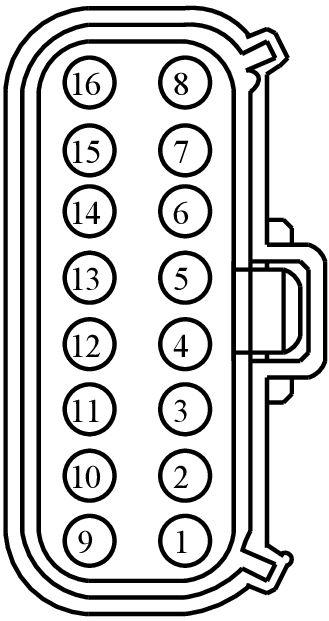

Connector End View C1021A - HEADLAMP ASSEMBLY LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1021A	HEADLAMP ASSEMBLY LH	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-AAA	Not Available
JU5T-14474-ABA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT	JU5T-14474-AAA
2	CLF02 (GY-BN)	20	CTRL MOD. - BEAM HIGH LEFT	JU5T-14474-AAA
3	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	JU5T-14474-AAA
4	VLF80 (VT-GN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED BIN SENSE	JU5T-14474-AAA
5	RLF68 (BU-BN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT GROUND 2 (BIN CTN DRL/PARK)	JU5T-14474-AAA
6	VLF81 (BN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED NTC SENSE	JU5T-14474-AAA
7	VLF77 (YE-OG)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED SENSE	JU5T-14474-AAA
8	GD120 (BK-GN)	16	GROUND - FENDER FRONT LEFT	JU5T-14474-ABA
9	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	JU5T-14474-AAA
10	CLF64 (BU-OG)	20	CTRL MOD. - HEADLAMP # LED TURN +	JU5T-14474-AAA
11	VLF32 (YE)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) +	JU5T-14474-AAA
12	CLF65 (BU-WH)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK +	JU5T-14474-AAA
13	RLF65 (YE-GN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK -	JU5T-14474-AAA
14	CLS12 (WH-VT)	20	CTRL MOD. - SIDE MARKER	JU5T-14474-AAA
15	VE525 (BU-OG)	20	CTRL MOD. - ELECTRIC WATER PUMP LIN BUS	JU5T-14474-AAA
16	GD120 (BK-GN)	16	GROUND - FENDER FRONT LEFT	JU5T-14474-ABA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Lamp - Headlamp - High/Low Beam
• Mating Connector WPT-1404
• Module - Heated Seat (driver)
• Module - Transfer Case Shift Control
