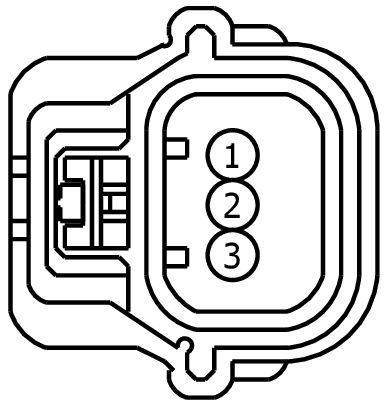

Connector End View C4870 - BLUETOOTH ANTENNA 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4870	BLUETOOTH ANTENNA 1	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD313 (BK-GN)	22	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT	3F2T-14474-SA
2	VMM26 (BU-GY)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # LIN BUS 1	3F2T-14474-SA
3	VMM39 (GN-BU)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # HIGH SIDE DRIVE OUTPUT 3	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1400

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-CC

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Monitor - Crankcase Ventilation
• Sensor - Air Suspension
• Sensor - Front Park Aid (FPA)
• Sensor - Occupant Classification
• Sensor - Reverse Park Aide (RPA)
• Switch - A/C Compressor Clutch Cycling
• Switch - A/C High Pressure
