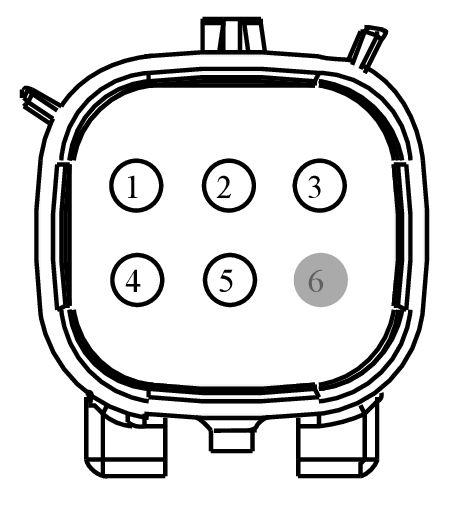

Connector End View C4357 - REAR PARKING AID CAMERA
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4357 | REAR PARKING AID CAMERA | 17N400 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | BU5T-14421-HA | ||||
| 2 | VDN04 (VT-WH) | 22 | CTRL MOD. - LIN BUS # BCM 4 | BU5T-14421-HA | ||||
| 3 | VMP23 (BN-GN) | 22 | CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-) | BU5T-14421-HA | ||||
| 4 | VMP22 (BU-BN) | 22 | CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+) | BU5T-14421-HA | ||||
| 5 | DMP22 (BK) | 20 | CAMERA - REAR PARK ASSIST D | BU5T-14421-HA | ||||
| 6 | * | * | Not Used | N/A | ||||
