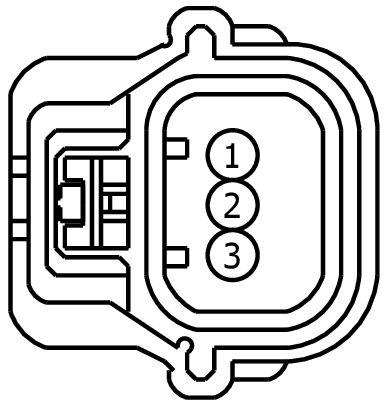

Connector End View C3871 - BLUETOOTH ANTENNA 10

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3871	BLUETOOTH ANTENNA 10	14B079			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-LA
2	VMM35 (BU-BN)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # LIN BUS 10	9U5T-14474-LA
3	VMM38 (WH-BU)	22	CTRL MOD. - BLUETOOTH LOW ENERGY # HIGH SIDE DRIVE OUTPUT 2	9U5T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1400

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-CC

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Monitor - Crankcase Ventilation
• Sensor - Air Suspension
• Sensor - Front Park Aid (FPA)
• Sensor - Occupant Classification
• Sensor - Reverse Park Aide (RPA)
• Switch - A/C Compressor Clutch Cycling
• Switch - A/C High Pressure
