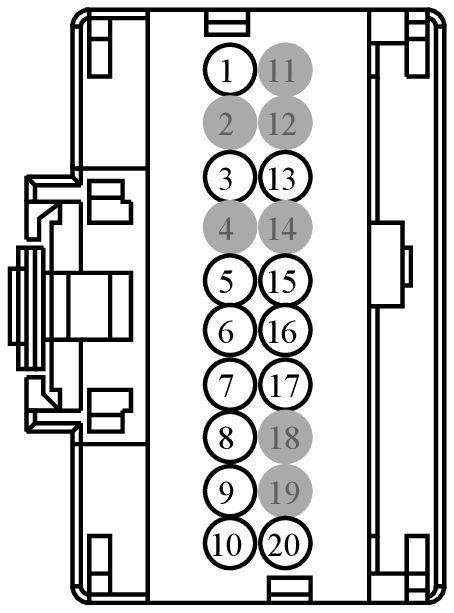

Connector End View C3237A - PARKING ASSIST CONTROL MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3237A	PARKING ASSIST CONTROL MODULE (PAM)	14401			part# N/A	See Below

Pin: 6 - VMP14(WH-OG)-SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE), Gauge 22

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP37 (WH)	20	FUSE - 37 OR CIRCUIT BREAKER	8U5T-14474-BB
2	*	*	Not Used	N/A
3	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	DU5T-14474-EAB
4	*	*	Not Used	N/A
5	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	DU5T-14474-EAB
6	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	DU5T-14474-EAB
7	VMP30 (BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE	DU5T-14474-EAB
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	DU5T-14474-EAB
9	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	DU5T-14474-EAB
10	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	DU5T-14474-EAB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CMP18 (GN-RD)	22	SWITCH - PARKING AID	DU5T-14474-EAB
14	*	*	Not Used	N/A
15	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	DU5T-14474-EAB
16	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	DU5T-14474-EAB
17	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	DU5T-14474-EAB
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

20

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Control Head - Manual Climate
• Module - Driver Door
• Module - Electronic Automatic Temperature Control (EATC)
• Module - Front Interface
• Module - Passenger Door
