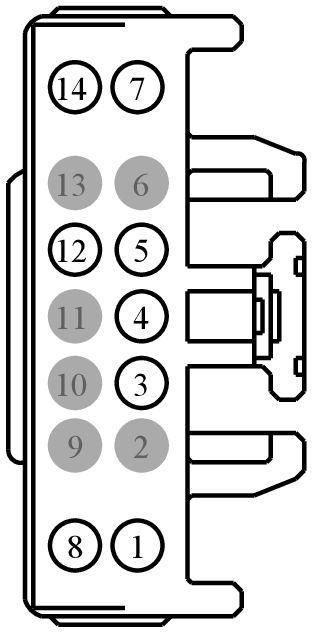

Connector End View C2406 - HEATED STEERING WHEEL MODULE (HSWM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2406	HEATED STEERING WHEEL MODULE (HSWM)	14401			part# N/A	See Below

Pin: 4 - VDB06(GY-OG)-CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH, Gauge 22

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-BBA	DU2Z-14474-EA	2.80
AU5T-14474-DA	DU2Z-14474-DA	1.50
97BG-14474-BAA	DU2Z-14474-EA	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP37 (WH)	18	FUSE - 37 OR CIRCUIT BREAKER	97BG-14474-BBA
2	*	*	Not Used	N/A
3	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	AU5T-14474-DA
4	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	AU5T-14474-DA
5	CHS71 (BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER	AU5T-14474-DA
6	*	*	Not Used	N/A
7	RHS72 (YE-GY)	20	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT -	97BG-14474-BAA
8	CHS72 (YE-BU)	20	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +	97BG-14474-BAA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	RHS73 (BN-BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR	AU5T-14474-DA
13	*	*	Not Used	N/A
14	GD214 (BK-BU)	18	GROUND - INSTRUMENT PANEL STRUCTURE	97BG-14474-BBA

Available Pigtail Kits

Pigtail Kit Part Number WPT-955

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BJAC

Gauge:

12 14 16

Pin material:

Tin & Silver

Cavities:

14

Vehicle Uses:

• Connector - Inline
