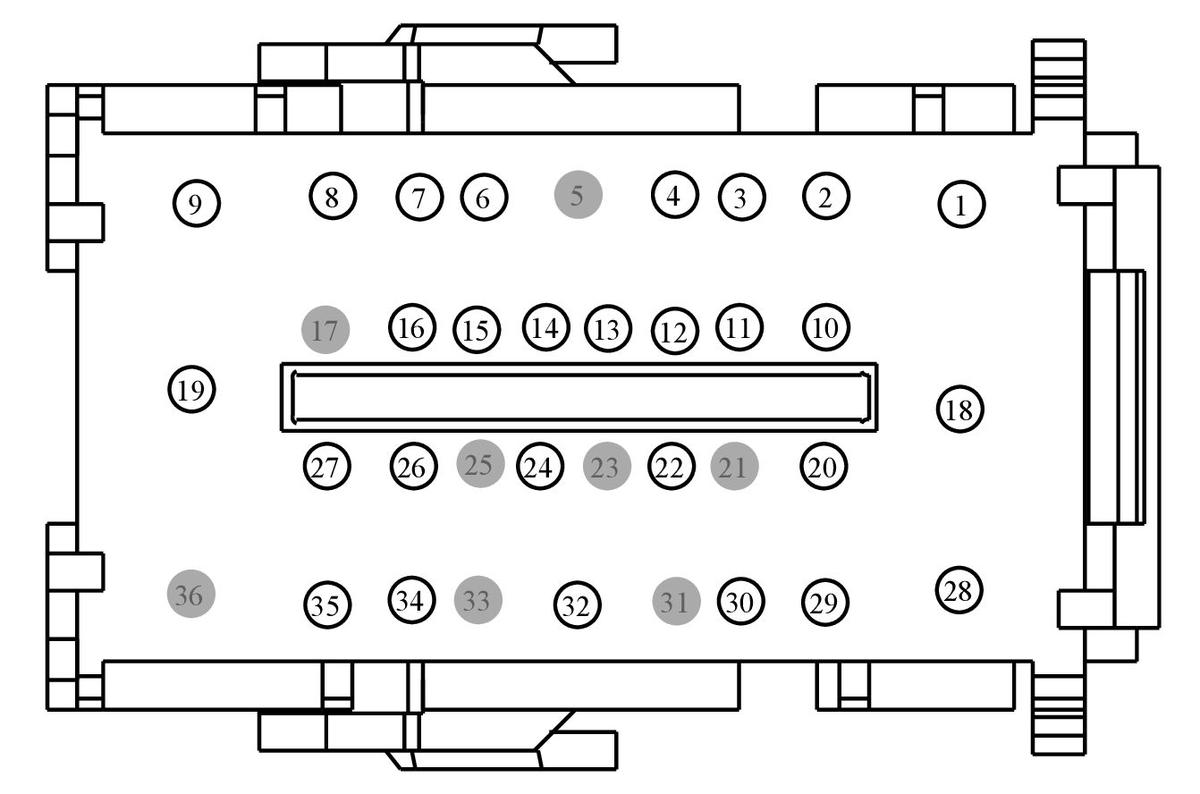

Connector End View C2280F - BODY CONTROL MODULE (BCM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280F	BODY CONTROL MODULE (BCM)	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
DU5T-14474-RBB	KU2Z-14474-DA	6.30
DU5T-14474-LBB	EU2Z-14474-AB	2.80
DU5T-14474-NBB	EU2Z-14474-AB	2.80
BU5T-14474-UA	DU2Z-14474-DA	1.50
DU5T-14474-JBB	EU2Z-14474-AB	2.80
7C3T-14474-EA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP27 (BU-RD)	12	FUSE - 27 OR CIRCUIT BREAKER	DU5T-14474-RBB
2	SBP04 (GN-RD)	12	FUSE - 4 OR CIRCUIT BREAKER	DU5T-14474-LBB|DU5T-14474-NBB
2	SBP04 (GN-RD)	10	FUSE - 4 OR CIRCUIT BREAKER	DU5T-14474-LBB|DU5T-14474-NBB
3	SBP07 (WH-RD)	20	FUSE - 7 OR CIRCUIT BREAKER	BU5T-14474-UA
4	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	BU5T-14474-UA
5	*	*	Not Used	N/A
6	GD326 (BK-WH)	16	GROUND - FLOOR CROSS MEMBER REAR LEFT	7C3T-14474-DA
6	GD326 (BK-WH)	18	GROUND - FLOOR CROSS MEMBER REAR LEFT	7C3T-14474-DA
7	GD326 (BK-WH)	16	GROUND - FLOOR CROSS MEMBER REAR LEFT	7C3T-14474-DA
7	GD326 (BK-WH)	18	GROUND - FLOOR CROSS MEMBER REAR LEFT	7C3T-14474-DA
8	CBP36 (BU-BN)	10	FUSE - 36 OR CIRCUIT BREAKER	DU5T-14474-NBB
9	SBP28 (GN-RD)	12	FUSE - 28 OR CIRCUIT BREAKER	DU5T-14474-RBB
10	GD326-C (BK-WH)	16	GROUND - FLOOR CROSS MEMBER REAR LEFT	DU5T-14474-JBB
10	GD382 (BK-GY)	18	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	DU5T-14474-JBB
11	CLS28 (BU-WH)	16	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)	7C3T-14474-DA
12	CLS44 (VT-BN)	14	CTRL MOD. - STOP	7C3T-14474-EA
13	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	BU5T-14474-UA
14	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	BU5T-14474-UA
15	SBP09 (RD)	22	FUSE - 9 OR CIRCUIT BREAKER	BU5T-14474-UA
16	SBP08 (VT-RD)	14	FUSE - 8 OR CIRCUIT BREAKER	7C3T-14474-EA|BU5T-14474-UA
16	SBP08 (VT-RD)	22	FUSE - 8 OR CIRCUIT BREAKER	7C3T-14474-EA|BU5T-14474-UA
17	*	*	Not Used	N/A
18	SBP26 (YE-RD)	12	FUSE - 26 OR CIRCUIT BREAKER	DU5T-14474-RBB
19	SBP24 (VT-RD)	12	FUSE - 24 OR CIRCUIT BREAKER	DU5T-14474-RBB
20	SBP05 (GY-RD)	12	FUSE - 5 OR CIRCUIT BREAKER	DU5T-14474-LBB|DU5T-14474-NBB
20	SBP25 (RD)	12	FUSE - 25 OR CIRCUIT BREAKER	DU5T-14474-LBB|DU5T-14474-NBB
20	SBP25 (RD)	10	FUSE - 25 OR CIRCUIT BREAKER	DU5T-14474-LBB|DU5T-14474-NBB
21	*	*	Not Used	N/A
22	SBP31 (WH-RD)	22	FUSE - 31 OR CIRCUIT BREAKER	BU5T-14474-UA
23	*	*	Not Used	N/A
24	CPL67 (GY-OG)	20	CTRL MOD. - DOOR LOCK # REAR DRIVER SIDE CHILD LOCK	BU5T-14474-UA
25	*	*	Not Used	N/A
26	CLN25 (WH-GN)	20	RELAY - PUDDLE LAMPS (KERB ILLUM.)	BU5T-14474-UA
27	CPL51 (BU-GN)	14	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	DU5T-14474-LBB
28	SBP23 (WH-RD)	12	FUSE - 23 OR CIRCUIT BREAKER	DU5T-14474-RBB
29	SBP03 (BU-RD)	18	FUSE - 3 OR CIRCUIT BREAKER	DU5T-14474-JBB
30	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	BU5T-14474-UA
31	*	*	Not Used	N/A
32	CPL13 (BN-GN)	14	CTRL MOD. - DOOR LOCK # ALL UNLOCK	DU5T-14474-LBB
33	*	*	Not Used	N/A
34	CRT02 (GY-VT)	18	CTRL MOD. - ANTI THEFT HORN (SOUNDER)	7C3T-14474-DA
35	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK	DU5T-14474-LBB
36	*	*	Not Used	N/A
