Connector End View C2280D - BODY CONTROL MODULE (BCM)

Connector Viewer - 150

Connector: Description Color Harness Base Part # Service Pigtail
C2280D BODY CONTROL MODULE (BCM) 14A005 part# N/A Not Available

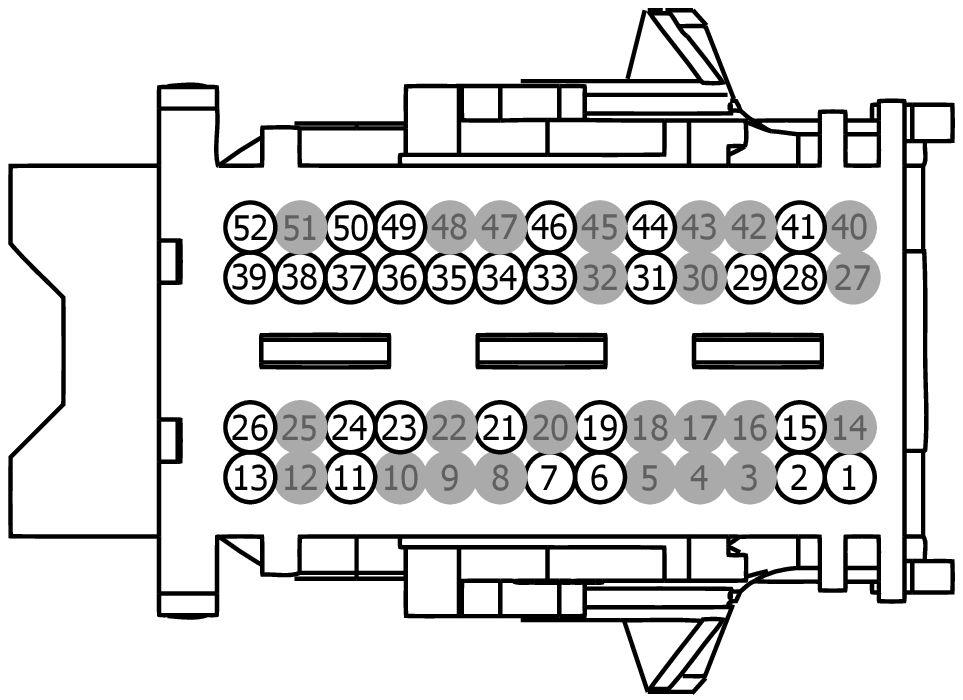

GFDWR149352Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CPL45 (BN) 22 SWITCH - LIFTGATE/DECKLID RELEASE 9U5T-14474-DB
2 CPK30 (VT-GN) 22 SWITCH - KEYLESS KEYPAD LINE B 9U5T-14474-DB
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 CR195 (YE-BU) 22 CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER 9U5T-14474-DB
7 CR194 (VT-WH) 22 CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER 9U5T-14474-DB
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 CPS48 (BU) 20 CTRL MOD. - RELAY(S) 3RD ROW SEAT (ENABLE) 9U5T-14474-DB
12 * * Not Used N/A
13 CLS17 (YE-GY) 22 CTRL MOD. - STOP HIGH MOUNT 9U5T-14474-DB
14 * * Not Used N/A
15 CPK31 (YE-GN) 22 SWITCH - KEYLESS KEYPAD LINE C 9U5T-14474-DB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 CPL39 (YE) 22 SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR) 9U5T-14474-DB
20 * * Not Used N/A
21 CPL31 (WH) 22 SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR 9U5T-14474-DB
22 * * Not Used N/A
23 CLS43 (YE-GN) 22 RELAY - STOP LAMP 9U5T-14474-DB
24 CLS43 (YE-GN) 22 RELAY - STOP LAMP 9U5T-14474-DB
25 * * Not Used N/A
26 CLS23 (GY-OG) 22 CTRL MOD. - TURN LAMP LEFT REAR 9U5T-14474-DB
27 * * Not Used N/A
28 CPK29 (GY-BU) 22 SWITCH - KEYLESS KEYPAD LINE A 9U5T-14474-DB
29 CPK52 (VT-WH) 22 CTRL MOD. - LIFTGATE/TAILGATE HANDS-FREE # OUTPUT 9U5T-14474-DB
30 * * Not Used N/A
31 CLS55 (GN-BU) 22 LAMP - TURN REAR LEFT # SIGNAL OUT 9U5T-14474-DB
32 * * Not Used N/A
33 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR 9U5T-14474-DB
34 CPL44 (YE-OG) 22 SWITCH - LIFTGATE/DECKLID/CARGO # AJAR 9U5T-14474-DB
35 CPK28 (WH-GN) 22 CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION 9U5T-14474-DB
36 VDN03 (GY-VT) 22 CTRL MOD. - LIN BUS # BCM 3 9U5T-14474-DB
37 VDN04 (VT-WH) 16 CTRL MOD. - LIN BUS # BCM 4 9U5T-14474-DB
37 VDN04 (VT-WH) 22 CTRL MOD. - LIN BUS # BCM 4 9U5T-14474-DB
38 VDN13 (BN) 22 CTRL MOD. - LIN BUS # BCM 5 9U5T-14474-DB
39 CPL89 (BN-BU) 22 CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER 9U5T-14474-DB
40 * * Not Used N/A
41 VMC05 (VT-OG) 20 CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT) 9U5T-14474-DB
42 * * Not Used N/A
43 * * Not Used N/A
44 CLS54 (BU-OG) 22 LAMP - TURN REAR RIGHT # SIGNAL OUT 9U5T-14474-DB
45 * * Not Used N/A
46 CPL36 (GN) 22 SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR) 9U5T-14474-DB
47 * * Not Used N/A
48 * * Not Used N/A
49 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) 9U5T-14474-DB
50 VDN14 (YE-VT) 22 CTRL MOD. - LIN BUS # BCM 6 9U5T-14474-DB
51 * * Not Used N/A
52 CLS27 (GN-OG) 22 CTRL MOD. - TURN LAMP RIGHT REAR 9U5T-14474-DB
