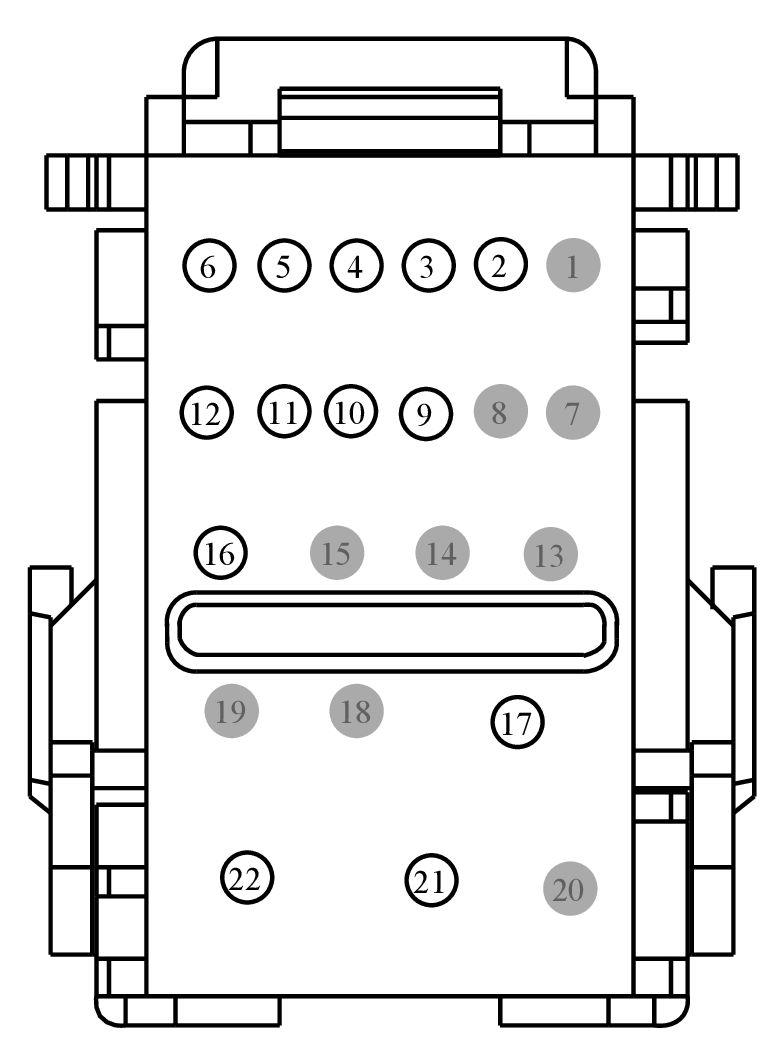

Connector End View C2280B - BODY CONTROL MODULE (BCM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280B	BODY CONTROL MODULE (BCM)	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.50
XF2T-14474-CA	EU2Z-14474-AB	2.80
YF1T-14474-BA	KU2Z-14474-DA	6.30
DU5T-14474-UBB	KU2Z-14474-DA	6.30

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CLF05 (BU-GN)	20	CTRL MOD. - BEAM LOW RIGHT	BU5T-14474-UA
3	CLS05 (BU-GY)	22	CTRL MOD. - PARK LAMPS 1	BU5T-14474-UA
4	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT	BU5T-14474-UA
5	CLS30 (VT-WH)	20	RELAY - PARK LAMP	BU5T-14474-UA
6	CDC55 (BN-VT)	16	RELAY - RUN START	7C3T-14474-DA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	BU5T-14474-UA
10	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	BU5T-14474-UA
11	CDC55 (BN-VT)	18	RELAY - RUN START	7C3T-14474-DA
12	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	BU5T-14474-UA
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	XF2T-14474-CA
17	SB101 (RD)	10	FUSE - 1 OR CIRCUIT BREAKER	YF1T-14474-BA
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	SBB67 (BU-RD)	10	FUSE - 67 OR CIRCUIT BREAKER	DU5T-14474-UBB
22	SBB62 (BN-RD)	10	FUSE - 62 OR CIRCUIT BREAKER	DU5T-14474-UBB

Available Pigtail Kits

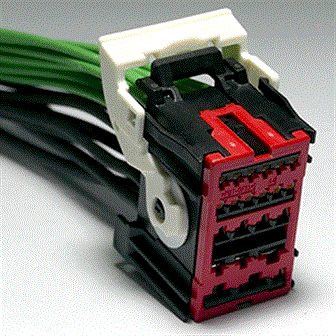

Pigtail Kit Part Number WPT-1636

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-KA

Gauge:

12 14 16

Pin material:

Tin & Silver

Cavities:

22

Vehicle Uses:

• Module - Body Control
