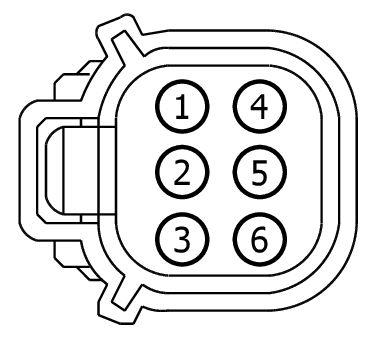

Connector End View C152 - FRONT FOG LAMP LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C152	FRONT FOG LAMP LH	15K867			part# N/A	See Below

Pin: 2 - RLF65(YE-GN)-CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK -, Gauge 22

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF65 (BU-WH)	22	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK +	BU5T-14474-UA
2	RLF65 (YE-GN)	22	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED DRL/PARK -	BU5T-14474-UA
3	VLF77 (YE-OG)	22	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED SENSE	BU5T-14474-UA
4	VLF80 (VT-GN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED BIN SENSE	BU5T-14474-UA
5	VLF81 (BN)	20	CTRL MOD. - HEADLAMP COMMON OR LEFT # LED NTC SENSE	BU5T-14474-UA
6	RLF68 (BU-BN)	22	CTRL MOD. - HEADLAMP COMMON OR LEFT GROUND 2 (BIN CTN DRL/PARK)	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-971

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FEAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
