Instrument Panel Cluster (IPC) - Overview: Overview
IPC

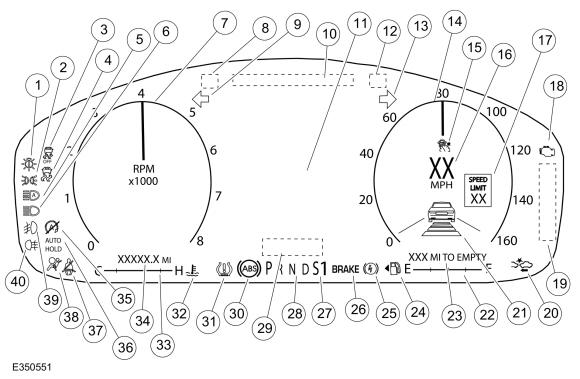

| Item | Description |
|---|---|
| 1 | LED low beam malfunction indicator |
| 2 | Lights on indicator |
| 3 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 4 | Stability-traction control indicator (sliding car icon) |
| 5 | Auto high beam indicator |
| 6 | High beam indicator |
| 7 | Tachometer |
| 8 | Compass display |
| 9 | LH turn indicator |
| 10 | Infotainment display area |
| 11 | Message center display |
| 12 | Outside air temperature display |
| 13 | RH turn indicator |
| 14 | Speedometer |
| 15 | Adaptive cruise control indicator Cruise control indicator |
| 16 | Digital speedometer display |
| 17 | Speed limit sign indicator |
| 18 | MIL |
| 19 | RTT indicator display area BLIS off Charging system Door, hood ajar Engine over-temperature Engineering test mode Low engine oil pressure Low washer fluid level Powertrain malfunction |
| 20 | Forward collision warning indicator |
| 21 | Lane keeping assist RTT indicator |
| 22 | Fuel gauge |
| 23 | DTE display |
| 24 | Low fuel warning indicator |
| 25 | Electronic park brake indicator |
| 26 | Brake warning indicator |
| 27 | SelectShift® display |
| 28 | PRNDL display |
| 29 | Drive mode indication |
| 30 | ABS indicator |
| 31 | TPMS warning indicator |
| 32 | Engine over-temperature indicator |
| 33 | Temperature gauge |
| 34 | Odometer |
| 35 | Auto stop/start RTT indicator |
| 36 | Auto hold indicator |
| 37 | Seatbelt warning indicator |
| 38 | Airbag warning indicator |
| 39 | Front fog lamp indicator |
| 40 | Rear fog lamp indicator |
The IPC utilizes a 12.3" color Thin Film Transistor (TFT) display for all cluster information. This is a complete virtual IPC without any analog gauges or LED-type indicators. All indicators and gauges appear similar to standard analog gauges and LED indicators found in other analog Instrument Panel Clusters (IPCs). The message center and adaptive cruise control information is displayed in overlays over the center of the tachometer and speedometer respectively, covering the center portion of the gauge needle images. The IPC has a feature called the quiet mode, where all overlays are turned off and basic cluster images return to normal functionality.
To alert the driver of vehicle conditions, the IPC uses:
- gauges
- informational indicators
- warning indicators
- RTT indicators
- warning messages
- warning chimes
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
Message center indicators illuminate in message center popup displays and the rotating message center indicator display area, using the same iconic representation as typical LED indicators. The message center indicators display in the order the request was received by the IPC.
Network Messaged Inputs
Module messaging has increased over time and is the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the CAN with the remaining few inputs hardwired to the IPC.
Hardwired Inputs
The IPC requires hardwired inputs from components that are not on the CAN. These components are required for specific IPC functions.
The hardwired inputs are provided by the following components:
- front power liftgate switch (traction control disable switch)
- fuel pump and sender unit
- fuel level sensor
- low washer fluid level switch
