Parking, Rear And License Lamps

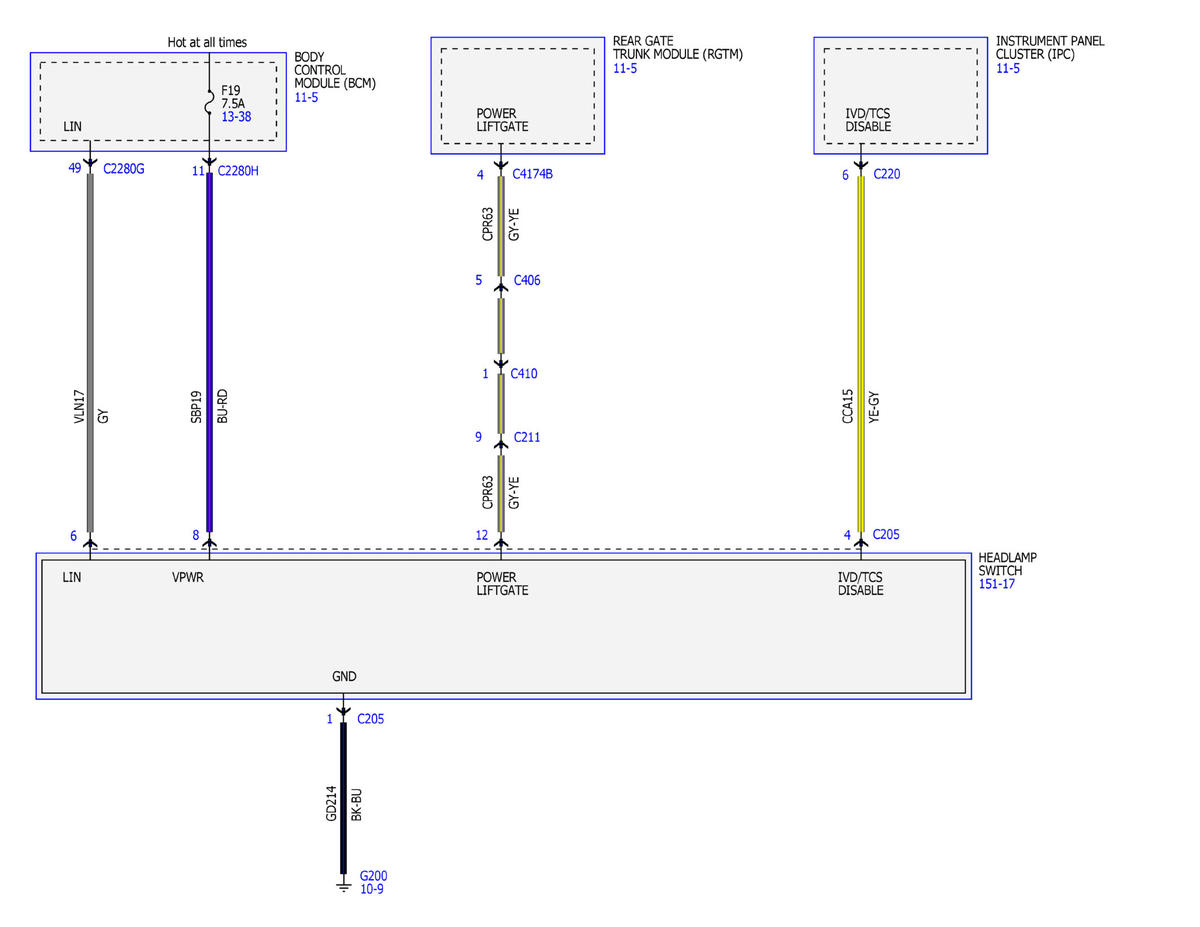

Fig 1: Parking, Rear and License Lamps Wiring Diagrams (1 Of 5)
GFDWR149776Courtesy of FORD MOTOR COMPANY

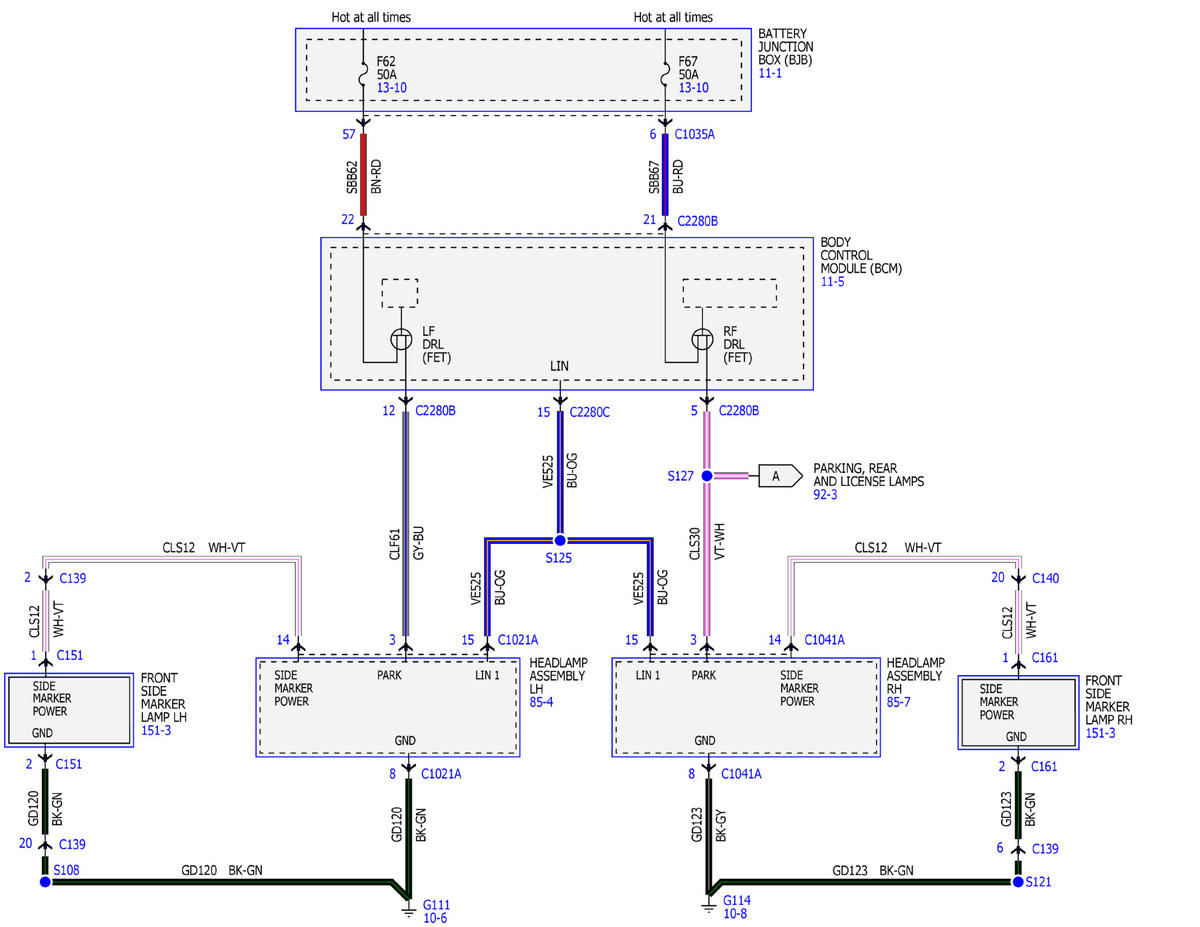

Fig 2: Parking, Rear and License Lamps Wiring Diagrams (2 Of 5)
GFDWR149777Courtesy of FORD MOTOR COMPANY

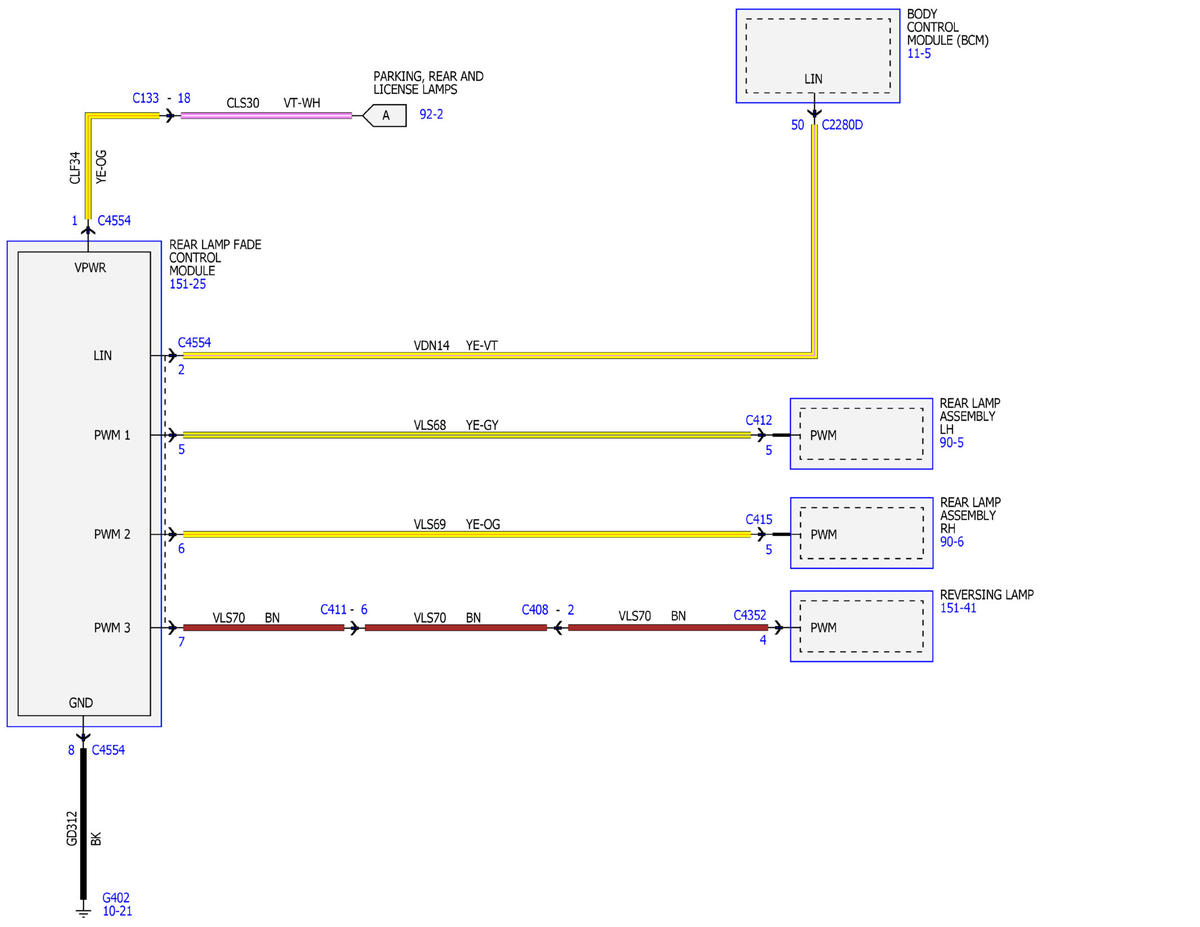

Fig 3: Parking, Rear and License Lamps Wiring Diagrams (3 Of 5)
GFDWR149778Courtesy of FORD MOTOR COMPANY

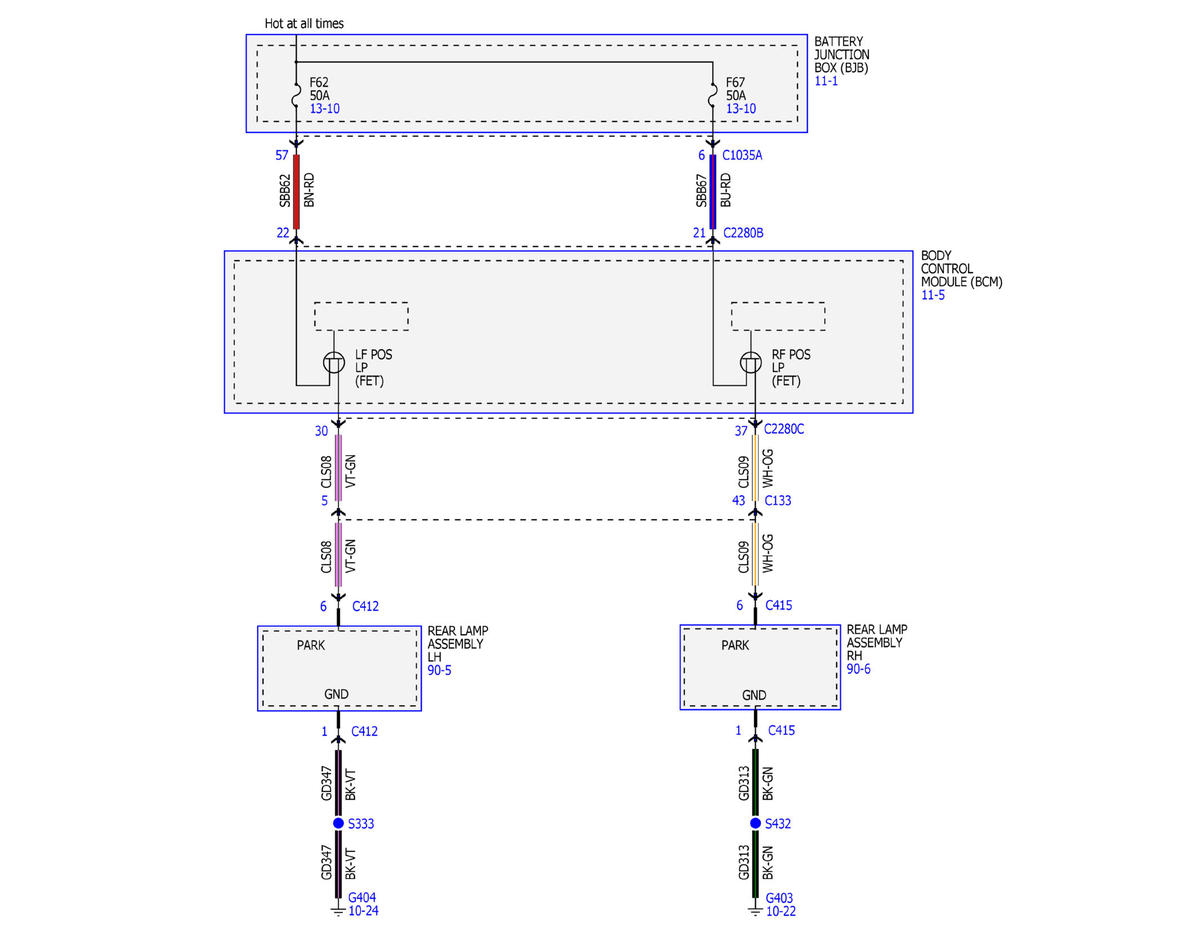

Fig 4: Parking, Rear and License Lamps Wiring Diagrams (4 Of 5)
GFDWR149779Courtesy of FORD MOTOR COMPANY

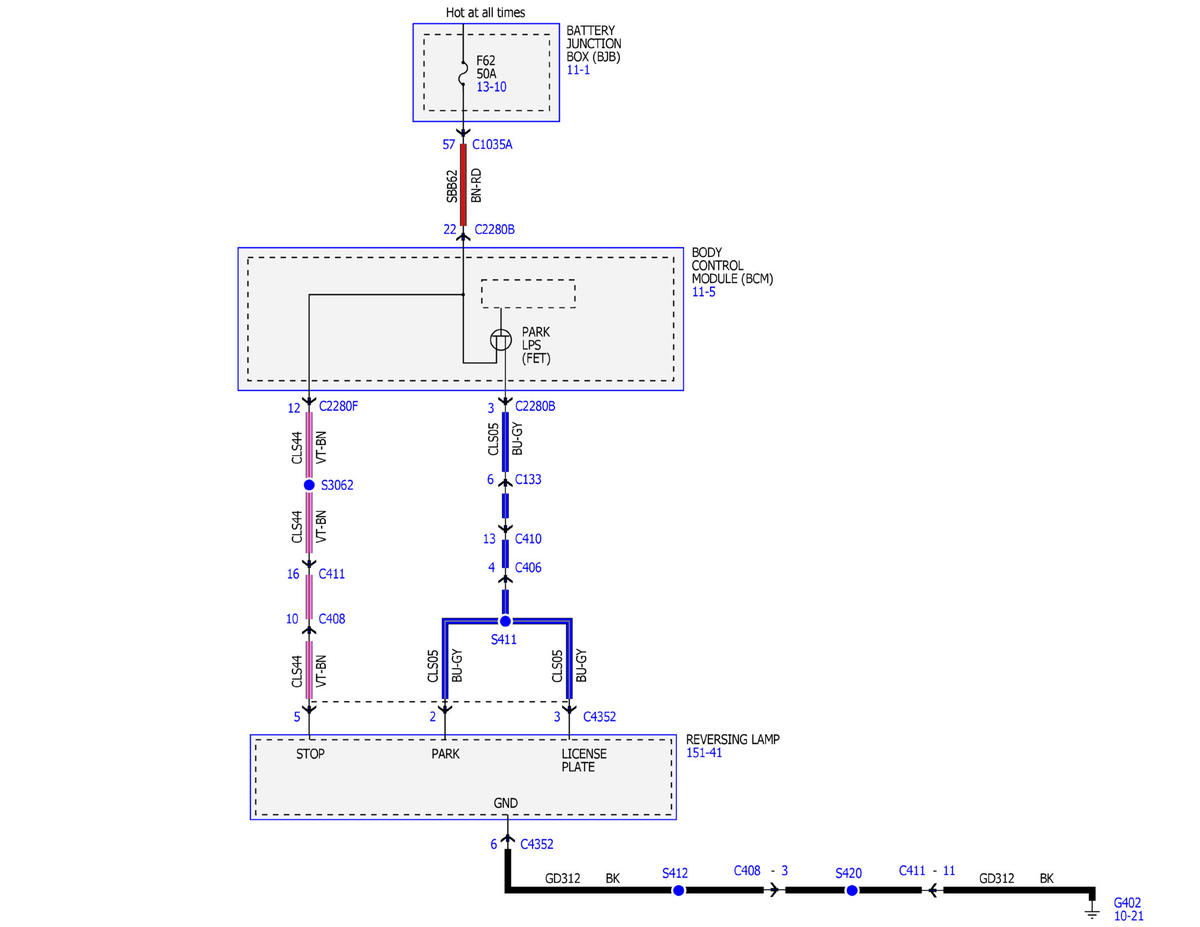

Fig 5: Parking, Rear and License Lamps Wiring Diagrams (5 Of 5)
GFDWR149780Courtesy of FORD MOTOR COMPANY
