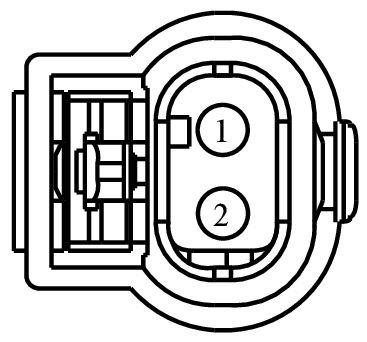

Connector End View C1451 - VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11)
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1451 | VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11) | 12C508 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-ACA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 8 OR CIRCUIT BREAKER (VPWR) | 9U5T-14474-ACA | ||||
| 2 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT11) | 9U5T-14474-ACA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1251
Service Part Number:
CU2Z-14S411-DA
Gauge:
18
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Solenoid - Engine Variable Timing
