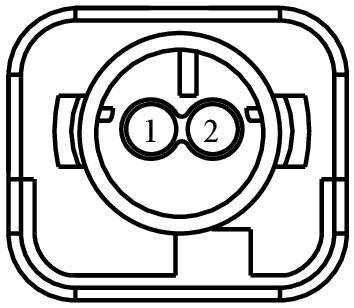

Connector End View C337 - PASSENGER SIDE AIRBAG

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C337	PASSENGER SIDE AIRBAG	14D233			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR106 (YE-OG)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD +	N/A
2	RR106 (VT-GY)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1228

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BMA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
